Product Main Technical Parameters
CNC Lathe Machine Features :
1.Big torque ,high precision spindle

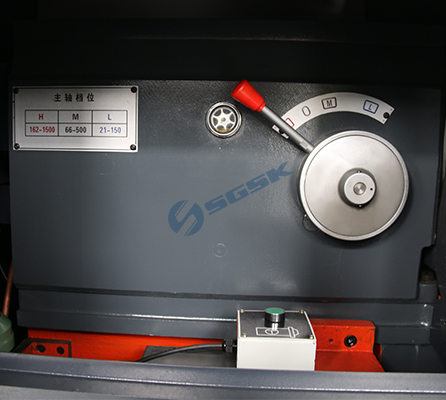

2.Hydraulic shift ,easy operate
3.Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy

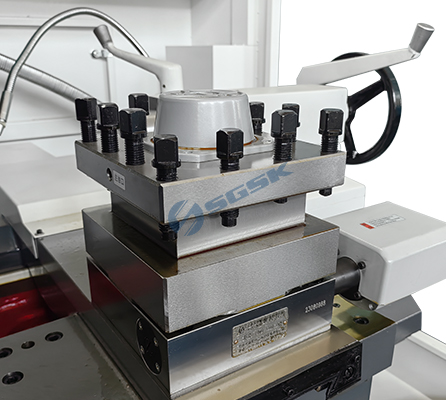

4.Vertical 4 position electric toolpost with high positioning accuracy
CNC Lathe Machine Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
CNC Lathe Machine Main Technical Specifications:
SPECIFICATIONS | Units | CAK6180 CAK6180B CAK6180C |
Swing over bed | mm | 800 |
Swing over cross slide | mm | 520 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52,(80 for B),[105 for C] |
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
Spindle nose type | - | C6,(D8 for B),[D8 for C] |
Spindle speed steps | - | Manual 3 steps (Optional: stepless) |
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 400 |
Z axis travel | mm | 750/1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 11 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 2750 |
Weight for 1000 | kg | 2850 |
Weight for 1500 | kg | 2950 |
Weight for 2000 | kg | 3450 |
Weight for 3000 | kg | 4250 |
Dimension for 750 | mm | 2550x1750x1900 |
Dimension for 1000 | mm | 2750x1750x1900 |
Dimension for 1500 | mm | 3250x1750x1900 |
Dimension for 2000 | mm | 3700x1750x1900 |
Dimension for 3000 | mm | 4710x1750x1900 |
Standard Configuration | Optional Configuration |
Guideway width 400mm VF. 3 steps 3-jaw manual chuck Electric 4 position Manual tailstock | Hydraulic chuck 6/8 Electric turret Hydraulic tailstock Independent spindle |
