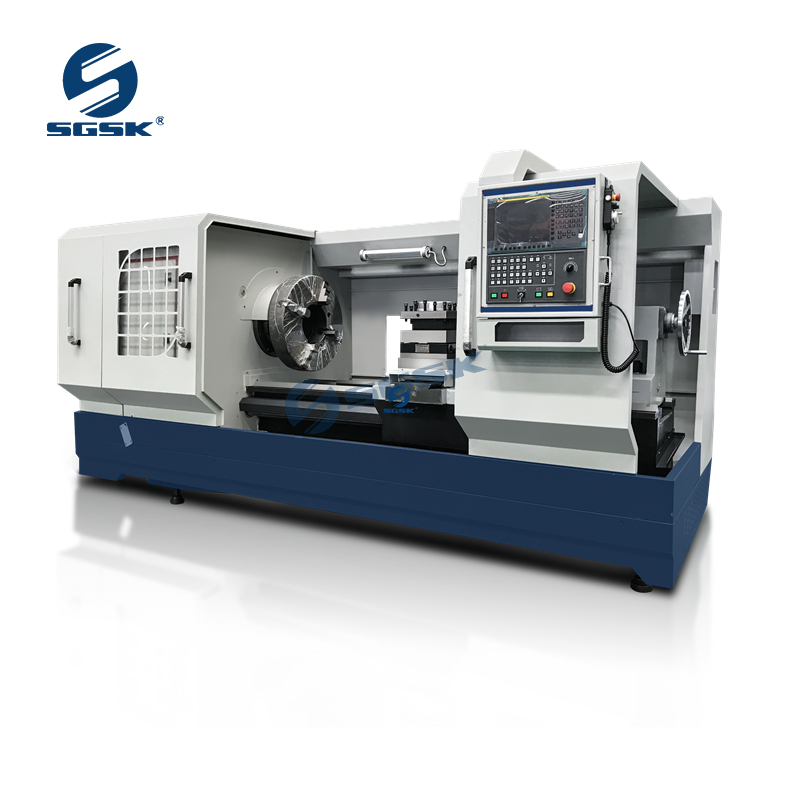

CK61100F Heavy Duty CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Heavy Duty CNC Lathe Machine Main Features and Uses：

This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.

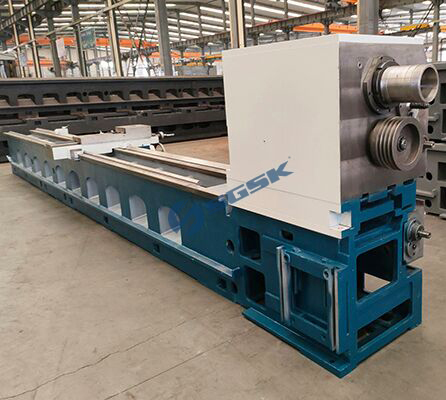

The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.

Heavy Duty CNC Lathe Machine Specification:

SPECIFICATIONS	Units	CK61100F	CK61100F
		Manual	HYD.
Swing over bed	mm	1000
Swing over cross slide	mm	680
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000

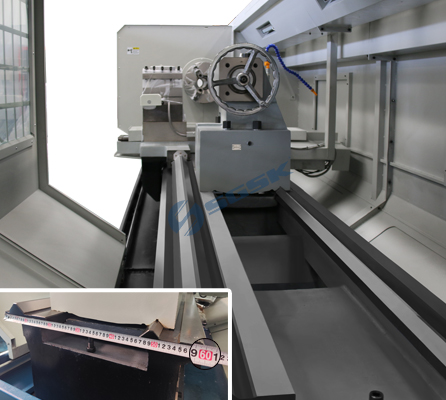

Guideway width	mm	600
Max. load capacity	T	4
Spindle bore	mm	104
Spindle bore taper	-	Metric φ120/MT5
Spindle nose type	-	C11

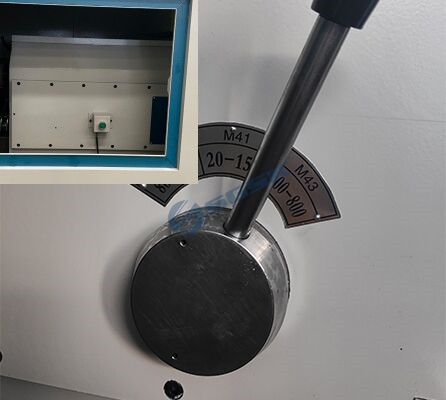

Spindle speed steps	-	VF. 3 steps		HYD. 4 steps
Spindle speed range	rpm	10-800		17-800
Chuck	mm	φ400 3-jaw manual
Turret/tool post	-	Electric 4 position
Tool size	mm	40×40
X axis travel	mm	520
Z axis travel	mm	850/1350/1850/2850/3850/4850/5850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	φ120
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kw	15
Coolant pump motor	kw	0.125
Weight for 1000	kg	5000
Weight for 1500	kg	5400
Weight for 2000	kg	5800
Weight for 3000	kg	6600
Weight for 4000	kg	7400
Weight for 5000	kg	8200
Weight for 6000	kg	9000
Dimension for 1000	mm	3500x2000 x 2100
Dimension for 1500	mm	4000x2000 x 2100
Dimension for 2000	mm	4500x2000 x 2100
Dimension for 3000	mm	5500x2000 x 2100
Dimension for 4000	mm	6500x2000 x 2100
Dimension for 5000	mm	7500x2000 x 2100
Dimension for 6000	mm	8500x2000 x 2100
