Product Main Technical Parameters

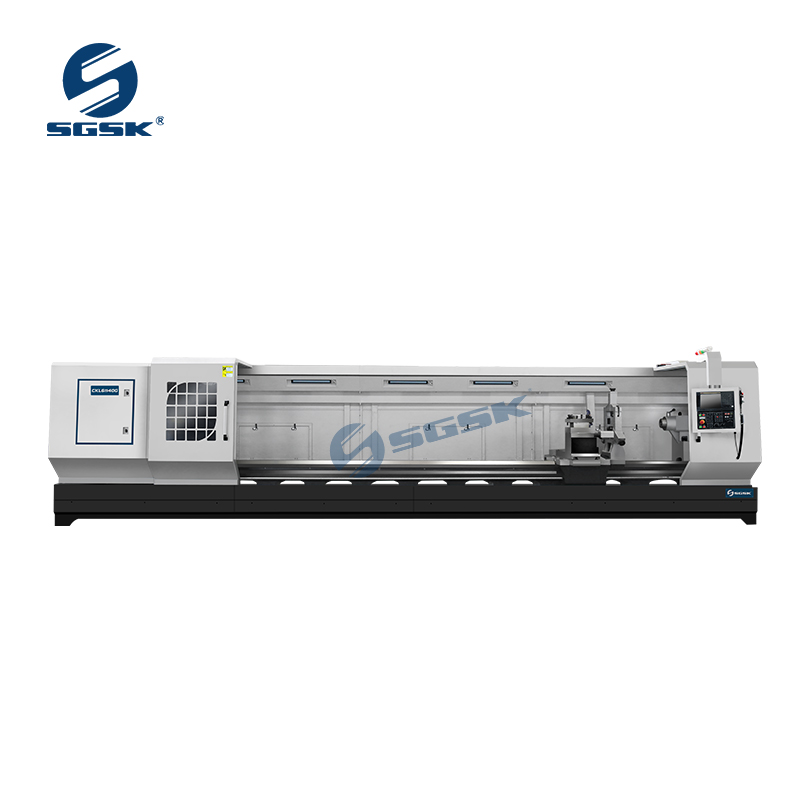

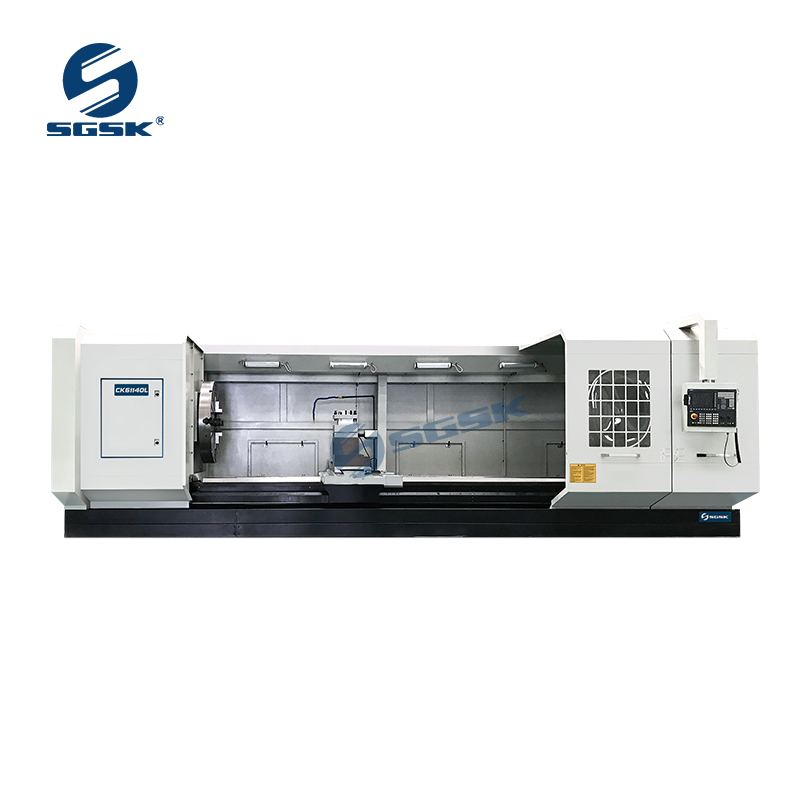

Heavy Duty CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | CKL61125G | CKL61140G | CKL61160G |
| Swing over bed | mm | 1250 | 1440 | 1640 |
| Swing over cross slide | mm | 710 | 820 | 1020 |
| Distance between centers | mm | 3000-10000 | 3000-10000 | 3000-10000 |

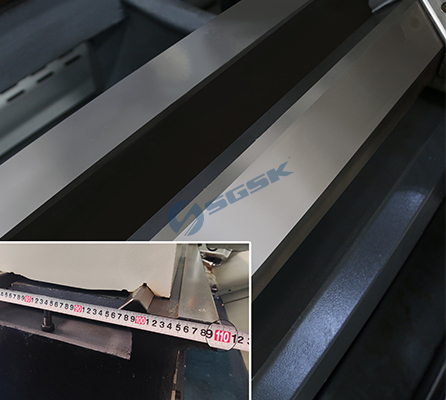

| Guideway width | mm | 1100 | 1100 | 1100 |
| Max. load capacity | T | 10/20/30 | 10/20/30 | 10/20/30 |
| Spindle bore | mm | 100 | 100 | 100 |
| Spindle bore taper | - | Metric 120 | Metric 120 | Metric 120 |
| Spindle nose type | - | A2-15 | A2-15 | A2-15 |
| Spindle speed steps | - | VF. 4steps | VF. 4 steps | VF. 4steps |
| Spindle speed range | rpm | 10-300 | 10-300 | 10-300 |

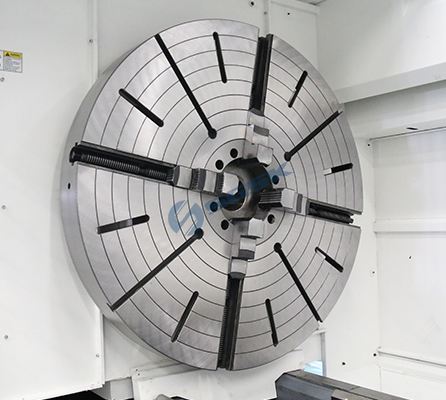

| Chuck | mm | φ1250 4-jaw manual | ||
| Turret/tool post | - | Electric 4 position | ||
| Tool size | mm | 50 x 50 | 50 x 50 | 50 x 50 |
| X axis travel | mm | 700 | 750 | 830 |
| Z axis travel | mm | 2850-9850 | 2850-9850 | 2850-9850 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
| Tailstock quill diameter | mm | φ220 | φ220 | φ220 |
| Tailstock quill taper | - | Metric 80 | Metric 80 | Metric 80 |
| Tailstock quill travel | mm | 300 | 300 | 300 |
| Main spindle motor | kw | 37 | 37 | 37 |
| Coolant pump motor | kw | 0.25 | 0.25 | 0.25 |
| Weight for 3000 | kg | 226000 | 236000 | 246000 |
| Weight for 5000 | kg | 244000 | 254000 | 264000 |
| Weight for 8000 | kg | 271000 | 281000 | 291000 |
| Weight for 10000 | kg | 289000 | 299000 | 309000 |
| Dimension for 3000 | mm | 6700x2550x2350 | 6700x2600x2400 | 6700x2700x2560 |
| Dimension for 5000 | mm | 8700x2550x2350 | 8700x2600x2400 | 8700x2700x2560 |
| Dimension for 8000 | mm | 11700x2550x2350 | 11700x2600x2400 | 11700x2700x2560 |
| Dimension for 10000 | mm | 13700x2550x2350 | 13700x2600x2400 | 13700x2700x2560 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |

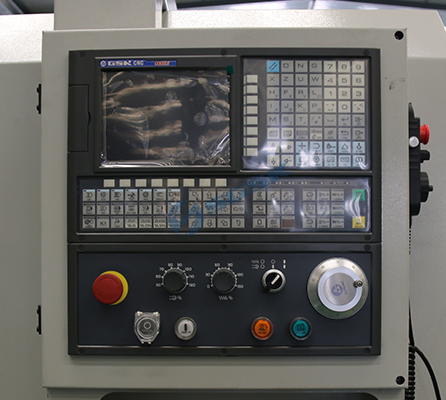

Electric 4 position 4-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield | Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield |
