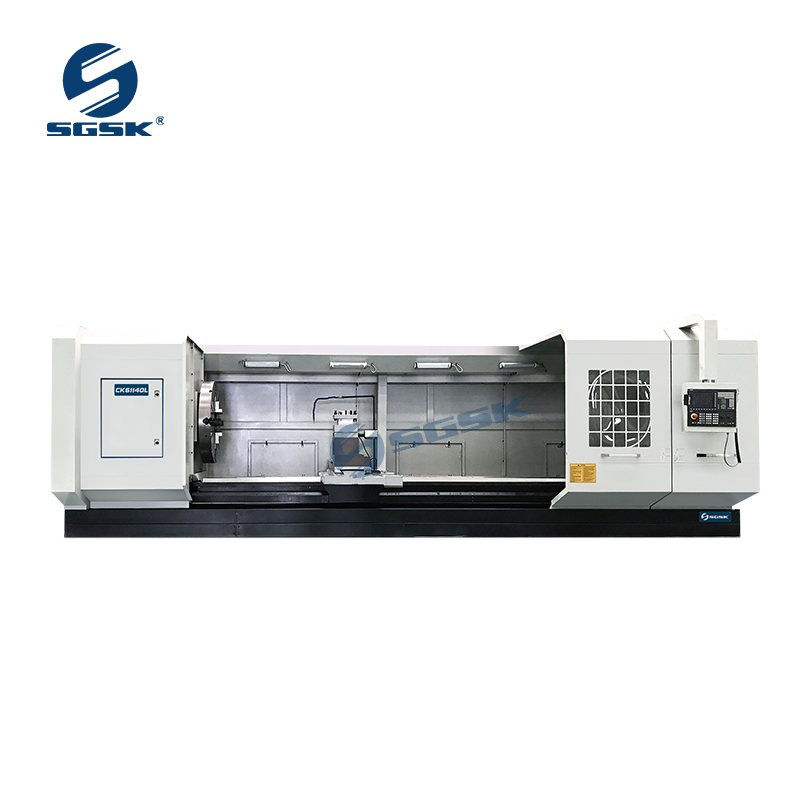

CK61140L CK61160L Heavy Duty CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Heavy Duty CNC Lathe Machine Main Features and Uses：

This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.

The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.

Heavy Duty CNC Lathe Machine Main Technical Specification:

Item	Specifications	Unit	CK61100L	CK61125L	CK61140L	CK61160L
Technical specification	Max.swing over bed	mm	1000	1250	1400	1600
	Max.swing over cross slide	mm	600	850	1000	1200
	Max.turning length	mm	1500-12000
	Bed width	mm	755
	Max.work piece weight	T	6(8)
Main drive	Form		4 step variable speed
	Range of spindle speeds	R/min	4-330
	Terminal structure		A2 15
	Hole diameter of Spindle	mm	130(145)
	Spindle hole fore-end taper		Metric 140 1:20
	Model of main motor		YVP180L-4-22KW(30kw optional)
Feeding system	Maximum cross travel of turret		X:560
	Ball-screw diameter *pitch	mm	X:5008, Z:8012
	Speed of quick travel	mm/min	X:4000 ,Z:6000
	Setting accuracy	mm	X:0.03 ,Z:0.04
	Resetting accuracy	mm	X:0.012 ,Z:0.02
	Precision pf workpiece		IT7
	Surface roughness	mm	Ra3.2
	Sleeve diameter of tailstock	mm	160(6T)200(8T)
Tailstock	Sleeve travel of tailstock	mm	300
	Cone hole taper tailstock’s sleeve	Morse	Morse 6

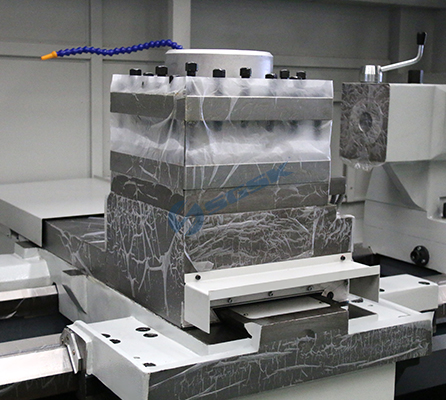

Turret	Standard configuration		Four-station Vertical electric knife rest
	Alternative configuration		Horizontal Six-station electric knife rest
	Resetting accuracy	mm	0.01
	Tool section size	mm	45x45
Control system	Standard configuration		GSK980TD
	Alternative configuration		FANUC,SIEMENS
	Servo motor		X 180NM ,Z 22NM
Size	LWH	mm	4600X2000X2040(1500MM)
weight	N.G	KG	11000(1500mm)
