Product Main Technical Parameters
CNC Lathe Machine Application:
This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .It is the ideal high efficient equipment in the hardware machining industry .
CNC Lathe Machine Standard configuration:
Electric 4 position
3-jaw manual chuck

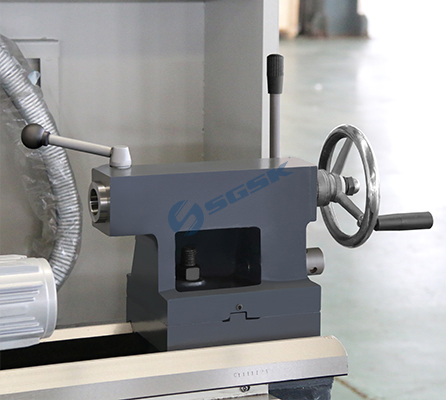

Manual tailstock
CNC Lathe Machine Specification:
SPECIFICATIONS | Units | CK6130 | CK6132 | CQK6136 |
Swing over bed | mm | 300 | 320 | 360 |
Swing over cross slide | mm | 100 | 110 | 150 |
Distance between centers | mm | 500 | 500 | 500/750 |
Spindle bore | mm | 60 | 60 | 60 |
Spindle bore taper | - | MT6 | MT6 | MT6 |
Spindle nose type | - | |||
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle speed range | rpm | 100-2000 | 100-2000 | 100-2000 |
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
Tool size | mm | 20 x 20 | 20 x 20 | 20 x 20 |
X axis travel | mm | 160 | 170 | 180 |
Z axis travel | mm | 500 | 500 | 500/750 |
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 |
Tailstock quill diameter | mm | Φ50 | Φ50 | Φ50 |
Tailstock quill taper | - | MT4 | MT4 | MT4 |
Tailstock quill travel | mm | 90 | 90 | 90 |
Main spindle motor | kw | 4 | 4 | 4 |
Coolant pump motor | kw | 0.09 | 0.09 | 0.09 |
Machine weight | kg | 800 | 850 | 900 |
Overall dimension | mm | 1500x1000x1600 | 1500x1050x1750 | 1500/1800x1150x1850 |
