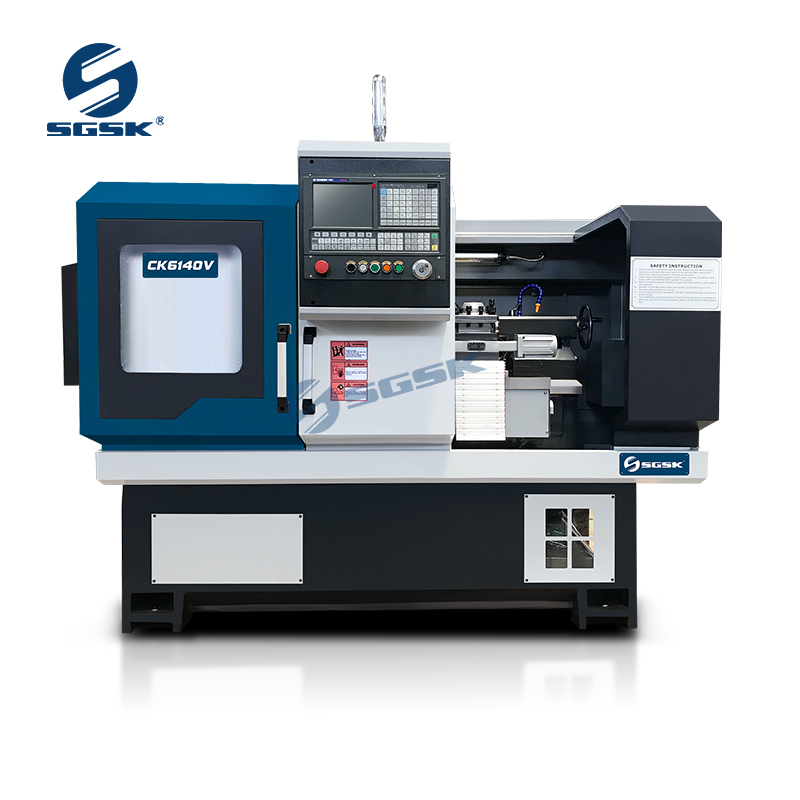

CK6140V CNC lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Lathe Machine Features：

Four position electric turret

Frequency conversion stepless speed regulation

Standard configuration :manual chuck

Optional configuration:spring collet ,hydraulic chuck ,automatic feeding device ,gang type tools

CNC Lathe Machine Application：

Machine can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as processing ,and also can process the single and multile threads in metric ,

inch and other standards .

CNC Lathe Machine Standard Accessories:

Double mountain guide way

Manual Chuck

4 electric Tool Post

CNC Lathe Machine Main Specification：

SPECIFICATIONS	Units	CK6140V
Swing over bed	mm	400
Swing over cross slide	mm	240
Distance between centers	mm	750/1000
Spindle bore	mm	48(Opt.: 82)
Spindle bore taper	-	MT6
Spindle nose type	-	A2-6(Opt.: A2-8)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	150-2000(Opt.: 150-1800)
Turret/tool post	-	Electric 4 position
Tool size	mm	20 x 20
X axis travel	mm	280
Z axis travel	mm	750/1000
X axis rapid traverse	mm/min	8000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	Φ60
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	100
Main spindle motor	kw	5.5(Opt.: 7.5)
Coolant pump motor	kw	0.09
Weight for 750	kg	1800
Weight for 1000	kg	2000
Dimension for 750	mm	2250x1300x1650
Dimension for 1000	mm	2500x1300x1650
