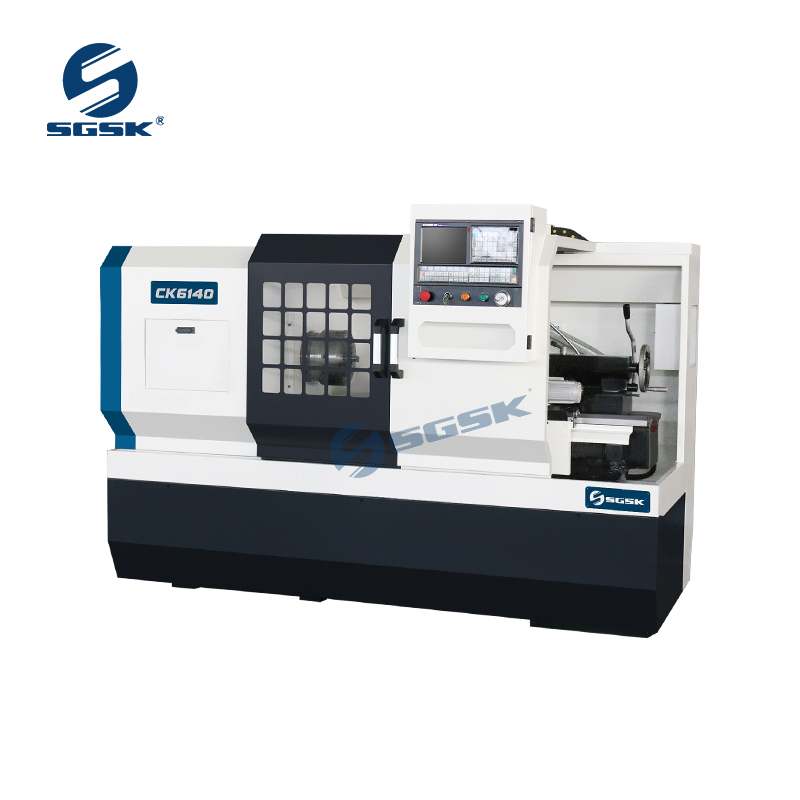

CK6160 CK6170 CNC lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC lathe Machine Description:

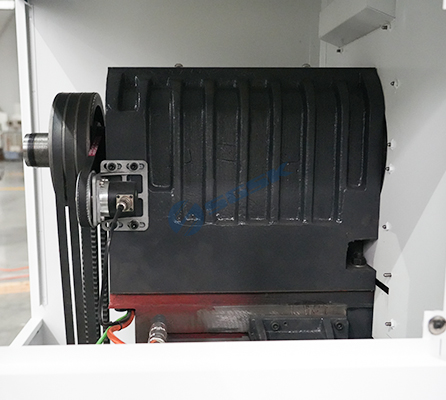

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

CNC lathe Machine Main Technical Specifications:

SPECIFICATIONS	Units	CK6160	CK6170
Swing over bed	mm	600	700
Swing over cross slide	mm	350	440
Distance between centers	mm	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)	52(Optional 80)
Spindle bore taper	-	MT6	MT6
Spindle nose type	-	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)

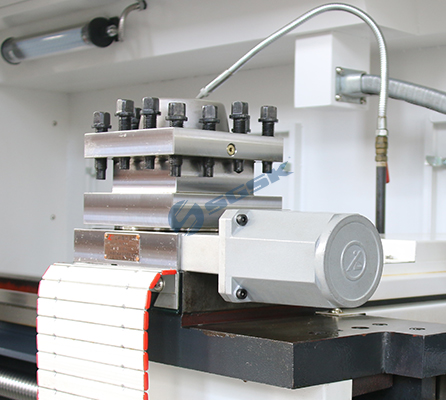

Turret/tool post	-	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	320	350
Z axis travel	mm	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000
Z axis rapid traverse	mm/min	8000	8000
Tailstock quill diameter	mm	65	65
Tailstock quill taper	-	MT5	MT5
Tailstock quill travel	mm	130	130
Main spindle motor	kw	5.5	5.5
Coolant pump motor	kw	0.125	0.125
Weight for 750	kg	1900	2000
Weight for 1000	kg	2000	2100
Weight for 1500	kg	2100	2200
Weight for 2000	kg	2200	2300
Dimension for 750	mm	2200x1750x1800	2200x1800x1850
Dimension for 1000	mm	2500x1750x1800	2500x1800x1850
Dimension for 1500	mm	3000x1750x1800	3000x1800x1850
Dimension for 2000	mm	3500x1750x1800	3500x1800x1850

Standard configuration

Optional configuration

Electric 4 position

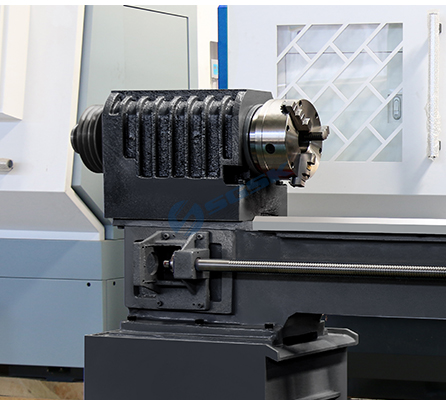

3-jaw manual chuck

Manual tailstock

360mm Bed Width

Hydraulic chuck

6/8 electric Turret

Hydraulic tailstock
