Product Main Technical Parameters
Heavy Duty CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | CK6180E | CK6180E | |
| Manual | HYD. | |||
| Swing over bed | mm | 800 | ||
| Swing over cross slide | mm | 520 | ||
| Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000 | ||
| Guideway width | mm | 550 | ||
| Max. load capacity | T | 3 | ||
| Spindle bore | mm | 104 | ||
| Spindle bore taper | - | Metric φ120/MT5 | ||
| Spindle nose type | - | C11 | ||

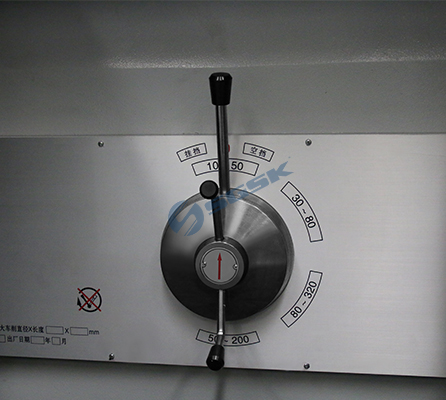

| Spindle speed steps | - | VF. 3 steps | HYD. 4 steps | |
| Spindle speed range | rpm | 10-1000 | 17-1000 | |
| Chuck | mm | φ315 3-jaw manual | ||
| Turret/tool post | - | Electric 4 position | ||
| Tool size | mm | 32×32 | ||
| X axis travel | mm | 420 | ||
| Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | ||
| X axis rapid traverse | mm/min | 4000 | ||
| Z axis rapid traverse | mm/min | 6000 | ||
| Tailstock quill diameter | mm | φ100 | ||
| Tailstock quill taper | - | MT5 | ||
| Tailstock quill travel | mm | 250 | ||
| Main spindle motor | kw | 11 | ||
| Coolant pump motor | kw | 0.125 | ||
| Weight for 1000 | kg | 3900 | ||
| Weight for 1500 | kg | 4300 | ||
| Weight for 2000 | kg | 4700 | ||
| Weight for 3000 | kg | 5500 | ||
| Weight for 4000 | kg | 6300 | ||
| Weight for 5000 | kg | 7100 | ||
| Weight for 6000 | kg | 7900 | ||
| Dimension for 1000 | mm | 3300x1850 x1900 | ||
| Dimension for 1500 | mm | 3800x1850 x1900 | ||
| Dimension for 2000 | mm | 4300x1850 x1900 | ||
| Dimension for 3000 | mm | 5300x1850 x1900 | ||
| Dimension for 4000 | mm | 6300x1850 x1900 | ||
| Dimension for 5000 | mm | 7300x1850 x1900 | ||
| Dimension for 6000 | mm | 8300x1850 x1900 | ||

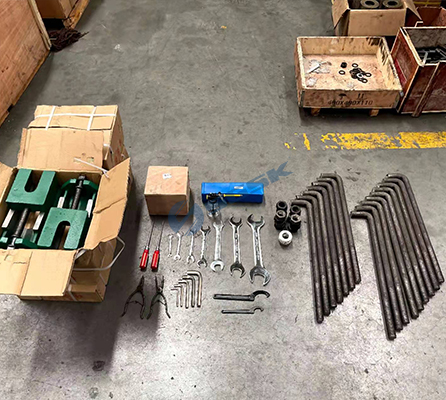

| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
Eletric 4 position 3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield | Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield |
