Product Main Technical Parameters

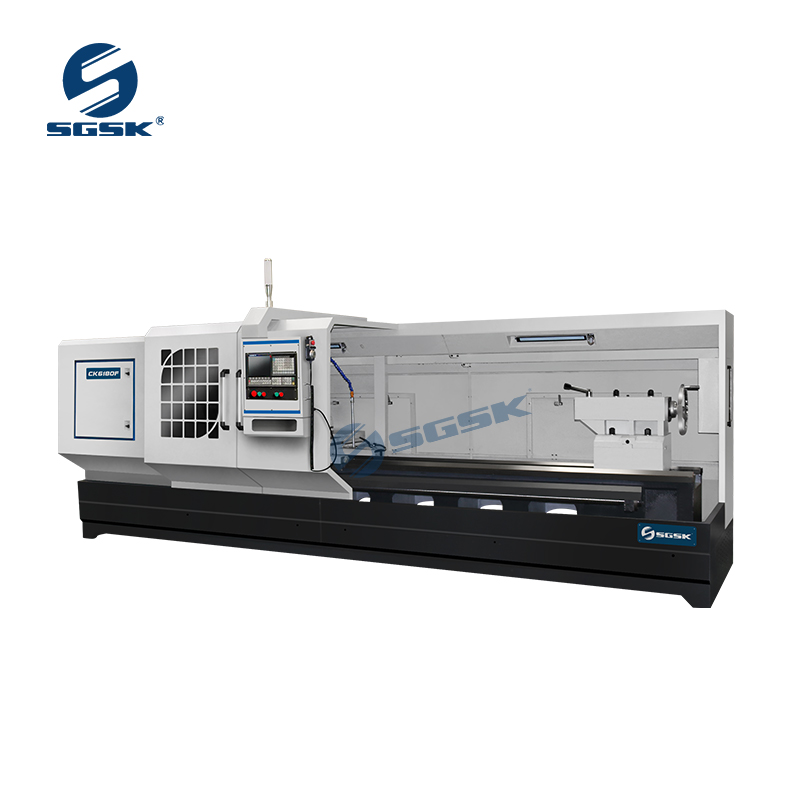

CNC Lathe Machine Features and Uses:
This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
CNC Lathe Machine Specification:
SPECIFICATIONS | Units | CK6180F | CK6180F | CK61100F | CK61100F | |
Manual | HYD. | Manual | HYD. | |||
Swing over bed | mm | 800 | 1000 | |||
Swing over cross slide | mm | 480 | 680 | |||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000 | 1000/1500/2000/3000/4000/5000/6000 | |||
Guideway width | mm | 600 | 600 | |||
Max. load capacity | T | 4 | 4 | |||
Spindle bore | mm | 104 | 104 | |||
Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | |||
Spindle nose type | - | C11 | C11 | |||
Spindle speed steps | - | VF. 3 steps | HYD. 4 steps | VF. 3 steps | HYD. 4 steps | |
Spindle speed range | rpm | 10-800 | 17-800 | 10-800 | 17-800 | |
Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual | |||
Turret/tool post | - | Electric 4 position | Electric 4 position | |||
Tool size | mm | 32×32 | 40×40 | |||
X axis travel | mm | 420 | 520 | |||
Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | 850/1350/1850/2850/3850/4850/5850 | |||
X axis rapid traverse | mm/min | 4000 | 4000 | |||
Z axis rapid traverse | mm/min | 6000 | 6000 | |||
Tailstock quill diameter | mm | φ120 | φ120 | |||
Tailstock quill taper | - | MT6 | MT6 | |||
Tailstock quill travel | mm | 250 | 250 | |||
Main spindle motor | kw | 15 | 15 | |||
Coolant pump motor | kw | 0.125 | 0.125 | |||
Weight for 1000 | kg | 4800 | 5000 | |||
Weight for 1500 | kg | 5200 | 5400 | |||
Weight for 2000 | kg | 5600 | 5800 | |||
Weight for 3000 | kg | 6400 | 6600 | |||
Weight for 4000 | kg | 7200 | 7400 | |||
Weight for 5000 | kg | 8000 | 8200 | |||
Weight for 6000 | kg | 8800 | 9000 | |||
Dimension for 1000 | mm | 3500x1950 x 1900 | 3500x2000 x 2100 | |||
Dimension for 1500 | mm | 4000x1950 x 1900 | 4000x2000 x 2100 | |||
Dimension for 2000 | mm | 4500x1950 x 1900 | 4500x2000 x 2100 | |||
Dimension for 3000 | mm | 5500x1950 x 1900 | 5500x2000 x 2100 | |||
Dimension for 4000 | mm | 6500x1950 x 1900 | 6500x2000 x 2100 | |||
Dimension for 5000 | mm | 7500x1950 x 1900 | 7500x2000 x 2100 | |||
Dimension for 6000 | mm | 8500x1950 x 1900 | 8500x2000 x 2100 |

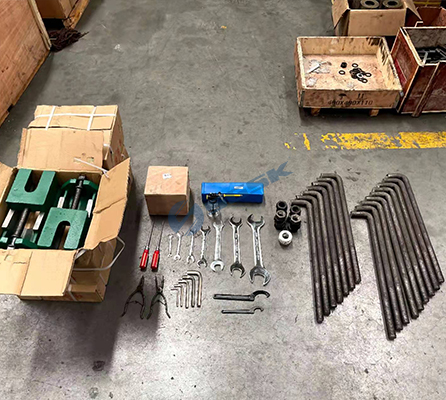

Standard Accessories | Optional Accessories |
Eletric 4 position, 3-jaw manual, manual tailstock, automatic lubrication, coolant pump, | Fanuc, Siemens or other brand CNC controller, 6/8 Electric turret, Hydraulic chuck hydraulic tailstock, Servo main motor |
