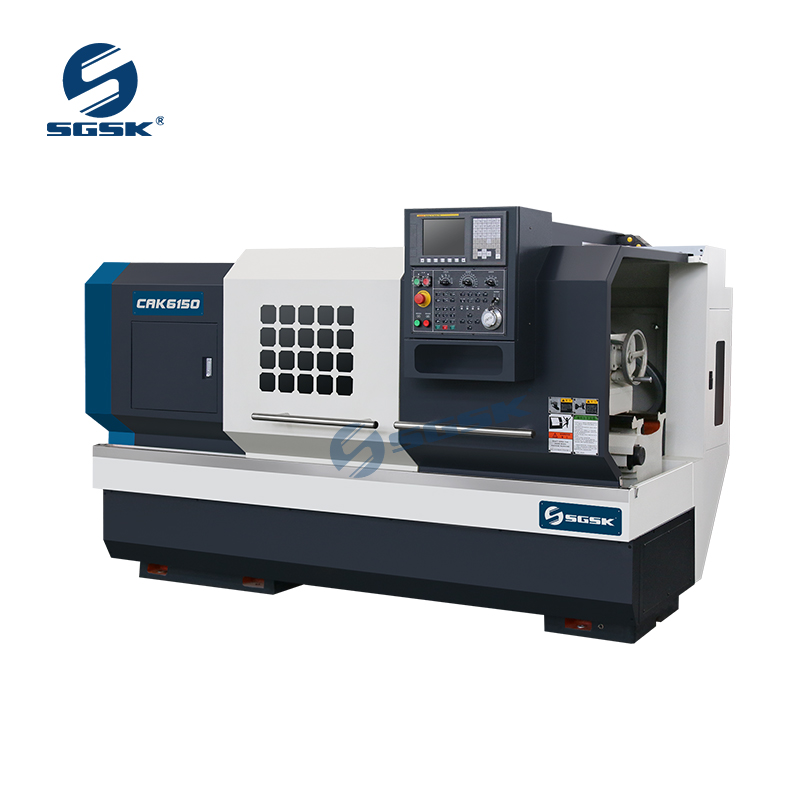

CK6150 CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Lathe Machines Description:

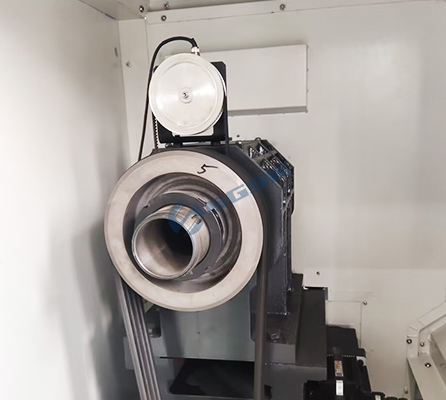

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

CNC Lathe Machines Main Technical Specifications:

SPECIFICATIONS	Units	CK6150
Swing over bed	mm	500
Swing over cross slide	mm	260
Distance between centers	mm	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)
Spindle bore taper	-	MT6
Spindle nose type	-	C6
Spindle speed steps	-	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800(Optional 90-1800 stepless)

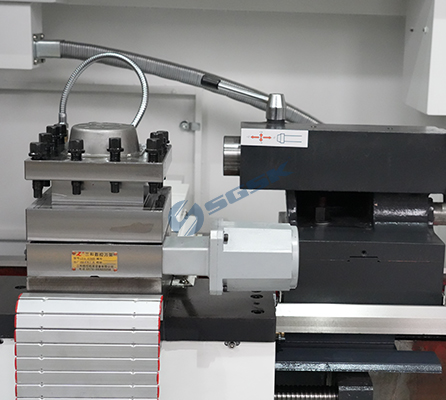

Turret/tool post	-	Electric 4 position
Tool size	mm	25 x 25
X axis travel	mm	280
Z axis travel	mm	750/1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	8000
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	130
Main spindle motor	kw	5.5
Coolant pump motor	kw	0.09
Weight for 750	kg	1800
Weight for 1000	kg	1900
Weight for 1500	kg	2000
Weight for 2000	kg	2100
Dimension for 750	mm	2200x1700x1750
Dimension for 1000	mm	2500x1700x1750
Dimension for 1500	mm	3000x1700x1750
Dimension for 2000	mm	3500x1700x1750

Standard Configuration

Optional Configuration

Electric 4 position,

3-jaw manual chuck,

Manual tailstock,
360mm Bed Width

Hydraulic chuck,

6/8 electric Turret,

Hydraulic tailstock
