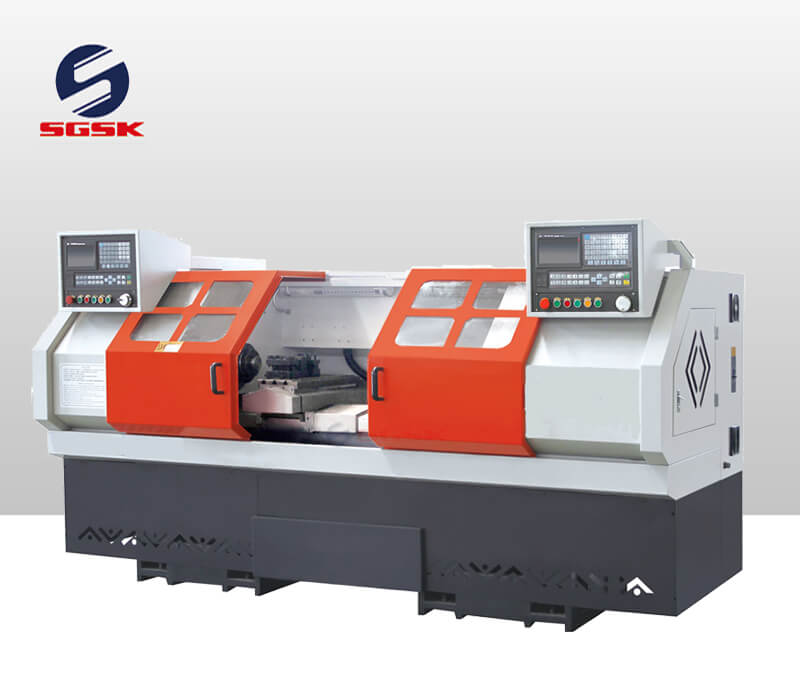

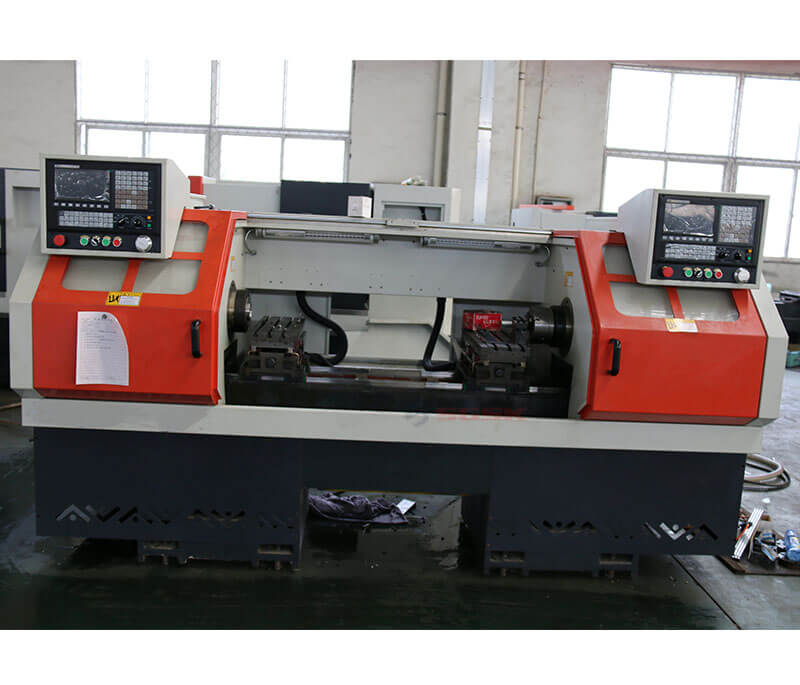

H6236/H6240 CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Lathe Machine Features :

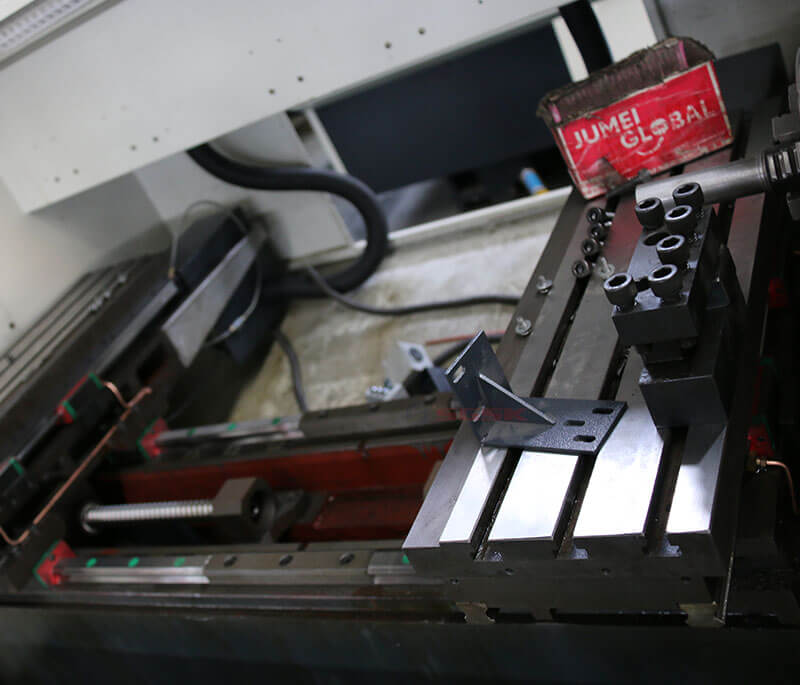

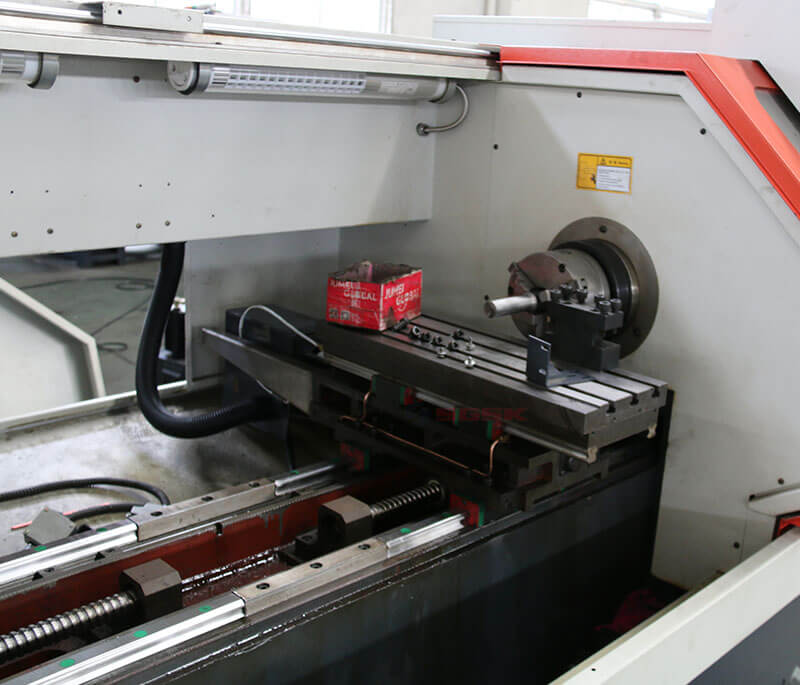

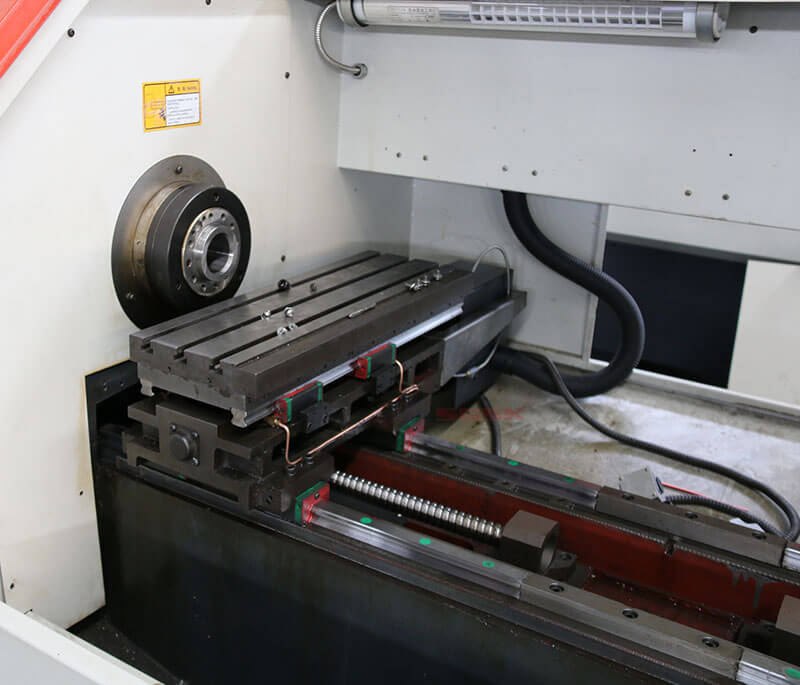

1.Higher accuracy Taiwan linear guideways

2.Higher speed spindle unit,Optional homemade spindle

3.Higher rigidity cast iron

4.Integrated automatic of H6236 and H6240,linear guideways in X axes are reversely installed.

CNC Lathe Machine Application :

The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.

This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.

CNC Lathe Machine Main Technical Specifications :

Specifications	Units	H6236	H6240
Max.swing over bed	mm	360	420
Max.swing over cross slide	mm	110	140
Max.processing length	mm	250	330
X/Z axis travel	mm	270/250	300/380
Spindle nose		A2-5	A2-5
Spindle bore	mm	48	48
Bar capacity	mm	38	38
Max. spindle speed	rpm	4000	4000
Chuck size	mm	6	6
Spindle motor	KW	4	5.5
X/Z axis repeatability	mm	±0.003	±0.003
X/Z axis feed motor torque	N.m	X:6 Z:6	X:6 Z:6
X/Z axis rapid traverse	m/min	15/15	15/15
Tool post type		4 gang type tool post	4 gang type tool post
Cutting tool shape size	mm	20X20	20X20
Guide form		Linear guide rail	Linear guide rail
Total power capacity	KVA	8.5	10
Machine dimension(LxWxH)	mm	2120X1400X1600	2000X1300X1600
Net weight	kg	1500	2200
