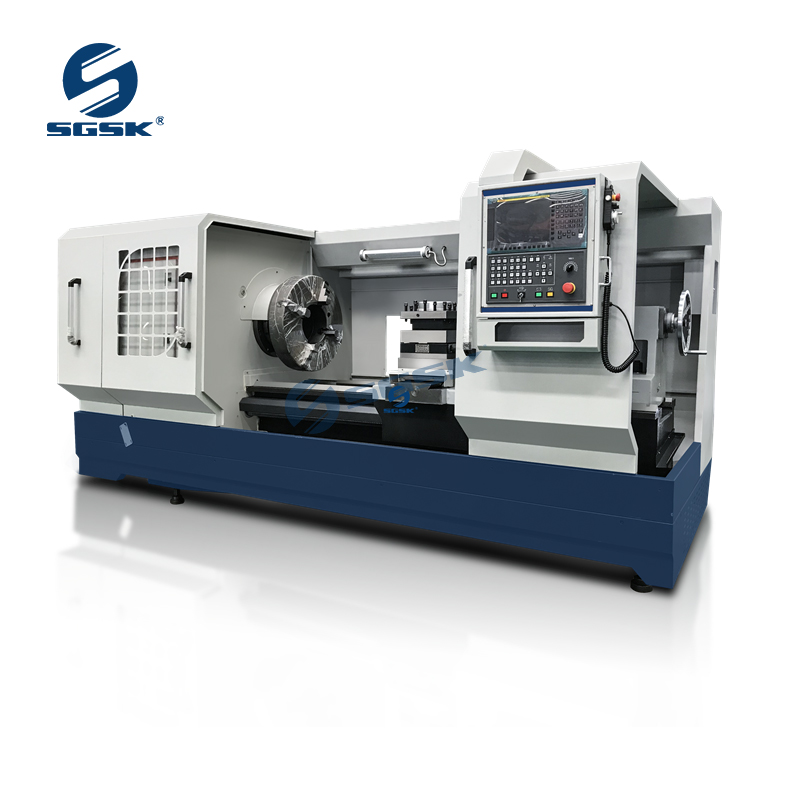

CNC Pipe Thread Lathe Machine Introduction:
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
CNC Pipe Thread Lathe Machine Features:
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
CNC Pipe Thread Lathe Machine Specification:
SPECIFICATION | Units | QK1313 |
Manual | ||
Swing over bed | mm | 630/800 |
Swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1000/1500/3000 |
Pipe threading range | mm | 30-126 |
Guideway width | mm | 550 |
Max. load capacity | T | 3 |
Spindle bore | mm | 130 |
Spindle speed steps | - | VF. 3 steps |
Spindle speed range | rpm | 30-720 |

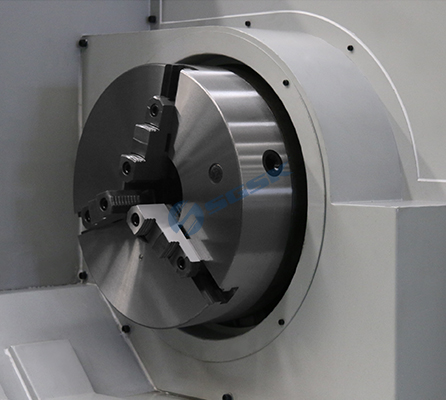

Chuck | mm | φ400 3-jaw manual |

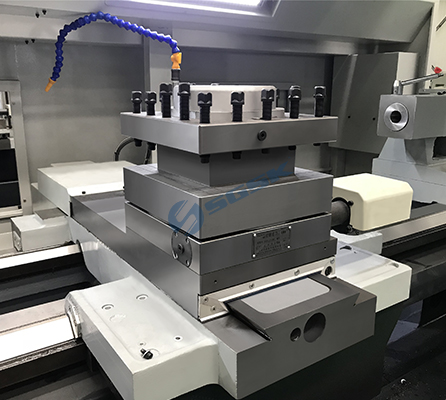

Turret/tool post | - | CNC turret 4 position |
Tool shank size | mm | 32 x 32 |
X axis travel | mm | 320/420 |
Z axis travel | mm | 850/1350/2850 |
X axis rapid traverse | mm/min | 4000 |
Z axis rapid traverse | mm/min | 6000 |
Tailstock quill diameter | mm | φ100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |

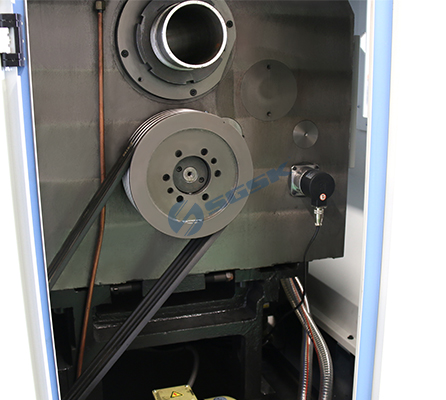

Main spindle motor | kW | 11 |
Coolant pump motor | kW | 0.125 |
Weight for 1000 | kg | 4500 |
Weight for 1500 | kg | 5000 |
Weight for 3000 | kg | 6000 |
Dimension for 1000 | mm | 3300x1800x1850 |
Dimension for 1500 | mm | 3800x1800x1850 |
Dimension for 3000 | mm | 5300x1800x1850 |
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |

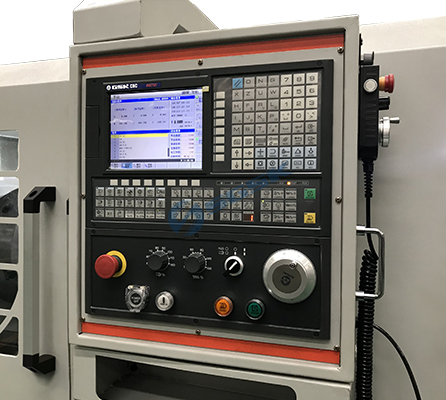

CNC turret 4 position, 3-jaw manual, Tailstock manual, automatic lubrication, coolant pump, semi-shield | Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield |
