Product Main Technical Parameters
| SPECIFICATION | Units | QK1343 | QK1350 | QK1363 |
| Swing over bed | mm | 1000 | 1200 | 1400 |
| Swing over cross slide | mm | 610 | 710 | 800 |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
| Pipe threading range | mm | 270-430 | 330-510 | 330-630 |

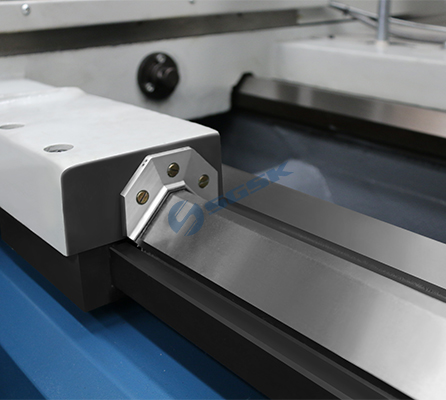

| Guideway width | mm | 755 | 755 | 1100 |
| Max. load capacity | T | 6 | 6 | 10 |
| Spindle bore | mm | 440 | 520 | 640 |
| Spindle speed steps | - | VF. 3 steps | VF. 3 steps | VF. 3 steps |
| Spindle speed range | rpm | 8-205 | 8-190 | 2-120 |

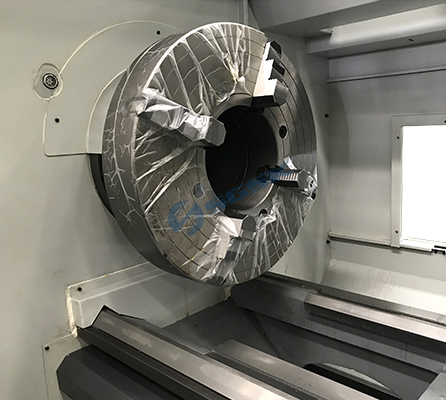

| Chuck | mm | φ10004-jaw electric | φ10004-jaw electric | φ1250 4-jaw manual |
| Turret/tool post | - | CNC turret 4 position | ||
| Tool shank size | mm | 40 x 40 | 50 x 50 | 50 x 50 |
| X axis travel | mm | 520 | 520 | 750 |
| Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 |

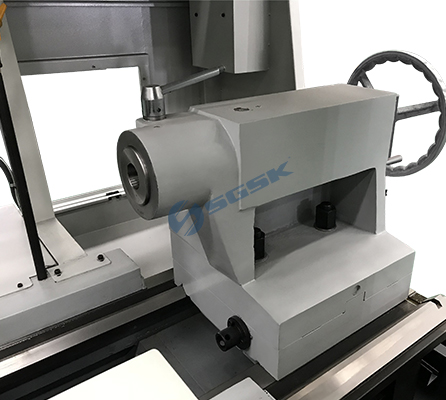

| Tailstock quill diameter | mm | φ160 | φ160 | φ220 |
| Tailstock quill taper | - | MT6 | MT6 | Metric 80 |
| Tailstock quill travel | mm | 300 | 300 | 300 |
| Main spindle motor | kW | 22 | 22 | 37 |
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 |
| Weight for 1500 | kg | 13000 | 15000 | 18000 |
| Weight for 3000 | kg | 14000 | 16000 | 19300 |
| Dimension for 1500 | mm | 5000x2220x2120 | 5000x2300x2200 | 5600x2500x250 |
| Dimension for 3000 | mm | 6500x2220x2120 | 6500x2300x2200 | 7100x2500x250 |
