Application
SPECIFICATIONS | Units | GMC3016 |
Table size(W*L) | mm | 1400*3100 |
X axis travel | mm | 3000 |
Y axis travel | mm | 1700 |
Z axis travel | mm | 800 |
Gantry width/passing height | mm | W:1700/H:1080 |
Table load | t | 6 |
Distance between spindle nose and table surface | mm | 200~1000 |
T slot(number-width*pitch) | - | 7-22*200 |

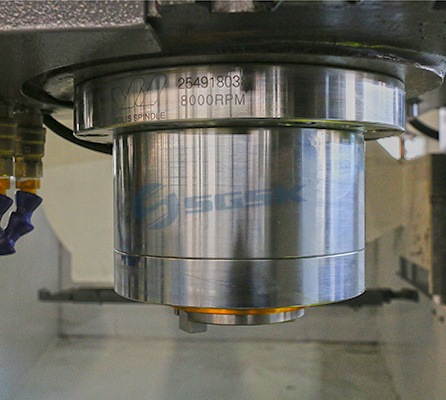

Spindle taper | - | BT50/190 |
Spindle speed | r/min | 6000 |
Rapid traverse speed | m/min | 15 |
Cutting feed speed | m/min | 10 |
Main motor power | kw | 15/18.5 |

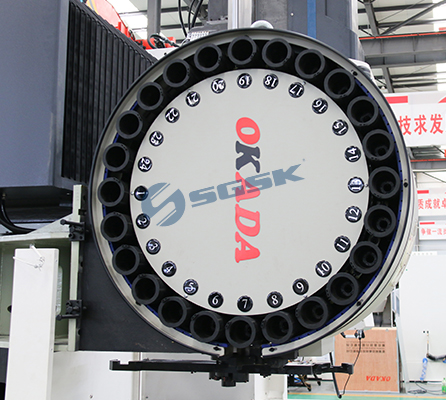

Tool magazine | 圆盘Arm24 | |
Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 |
Repeat positioning accuracy | mm | ±0.005 |
Overall dimension(L*W*H) | mm | 9200*4500*4300 |
Machine weight(about) | t | 22.5 |
