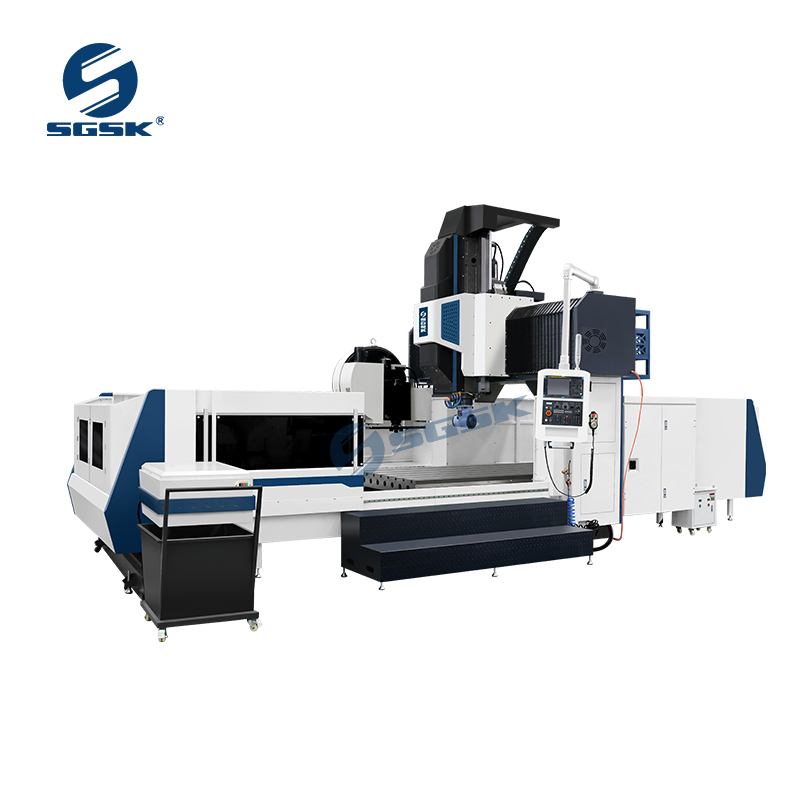

Product Main Technical Parameters
| Units | GMC5037 | GMC6037 | GMC8037 | |
| Table size（W*L） | mm | 2500*5040 | 2500*6000 | 2500*8000 |
| X axis travel | mm | 5000 | 6000 | 8000 |
| Y axis travel | mm | 3700 | 3700 | 3700 |
| Z axis travel | mm | 1250 | 1250 | 1250 |
| Gantry width | mm | 3700 | 3700 | 3700 |
| Gantry passing height | mm | 1780 | 1780 | 1730 |
| Table load | t | 20 | 25 | 30 |
| Distance between spindle nose and table surface | mm | 350～1600 (可选配加高300、500mm Opt. Heighten 300、500mm） | ||
| T slot(number-width*pitch) | - | 中间11-28*200 ，两侧各1-28*180 Middle11-28*200 ，Two side Each 1-28*180 | ||
| Spindle taper | - | BT50/200 | BT50/200 | BT50/200 |
| Spindle speed | r/min | 6000 | 6000 | 6000 |
| Rapid traverse speed | m/min | 10 | 8 | 8 |
| Cutting feed speed | m/min | 6 | 5 | 5 |
| Main motor power | kw | 18.5 | 18.5 | 18.5 |
| Tool magazine | 圆盘Arm 30 | 圆盘Arm 30 | 圆盘Arm 30 | |
| Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Overall dimension(L*W*H) | mm | 15440*7870*647 | 17440*7870*6470 | 22440*7870*6470 |
| Machine weight(about) | t | 80 | 88 | 104 |
