Product Main Technical Parameters

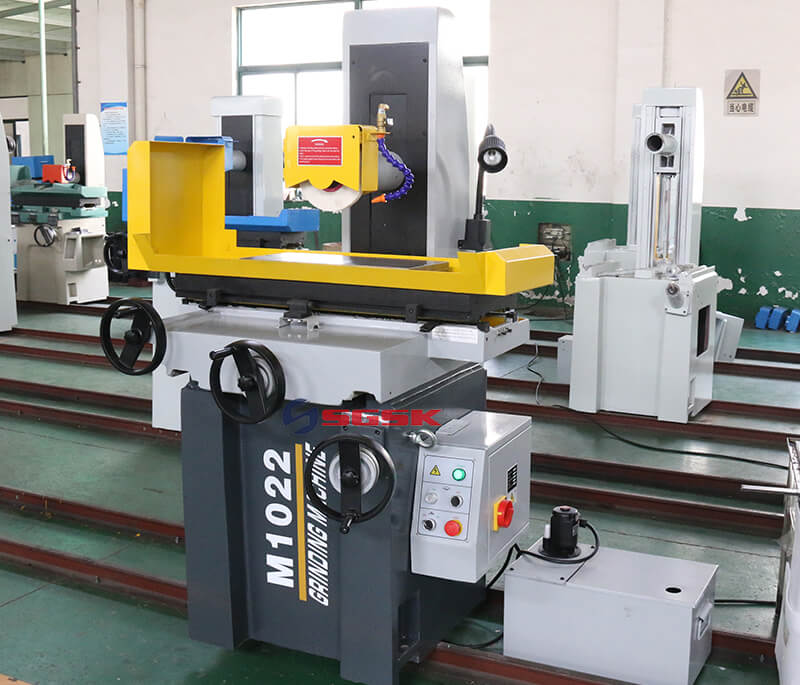

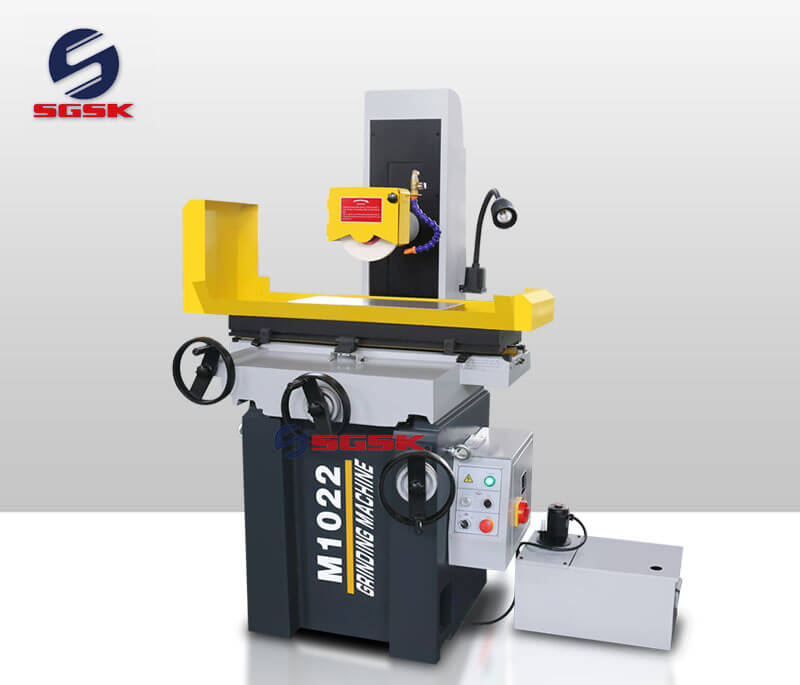

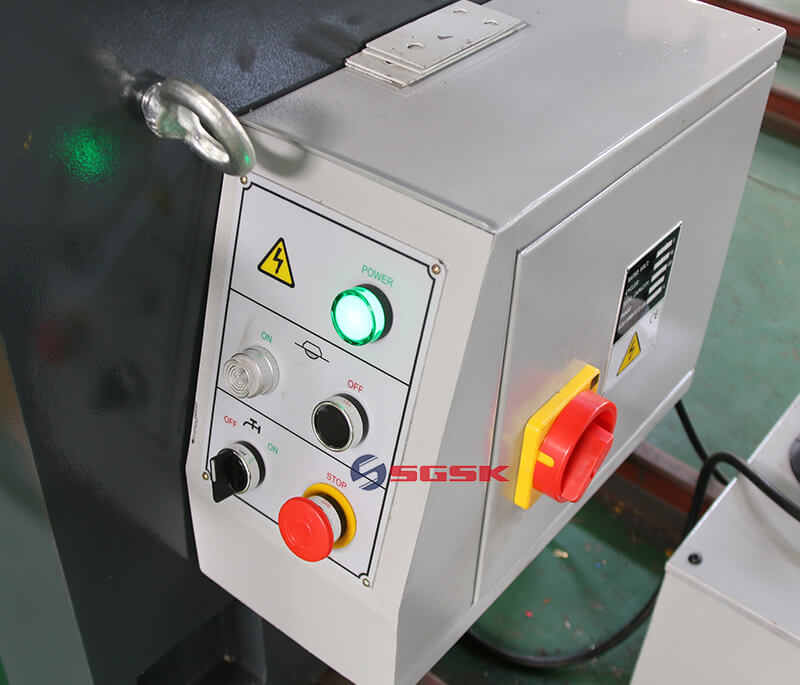

Manual Surface Grinder Machine Main Performance Characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.

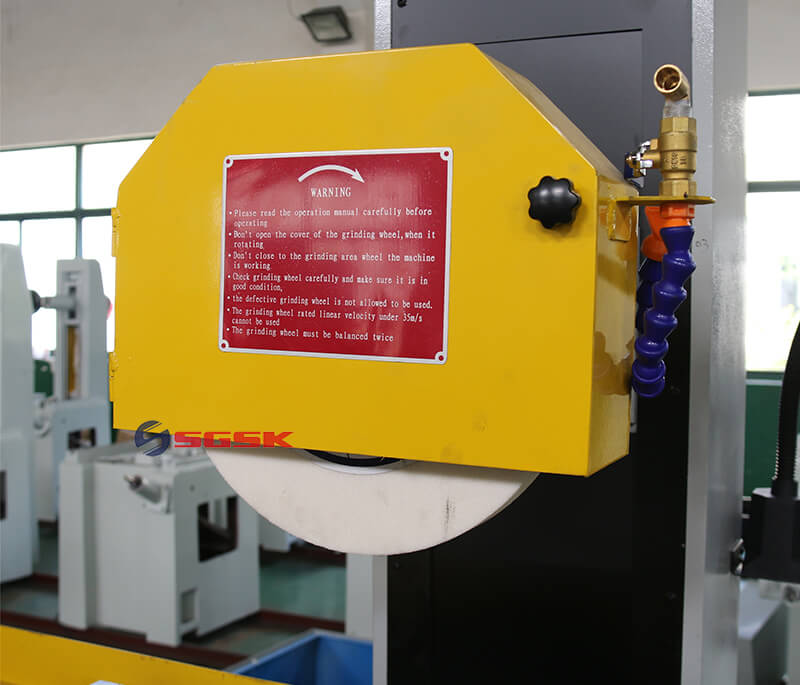

4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.

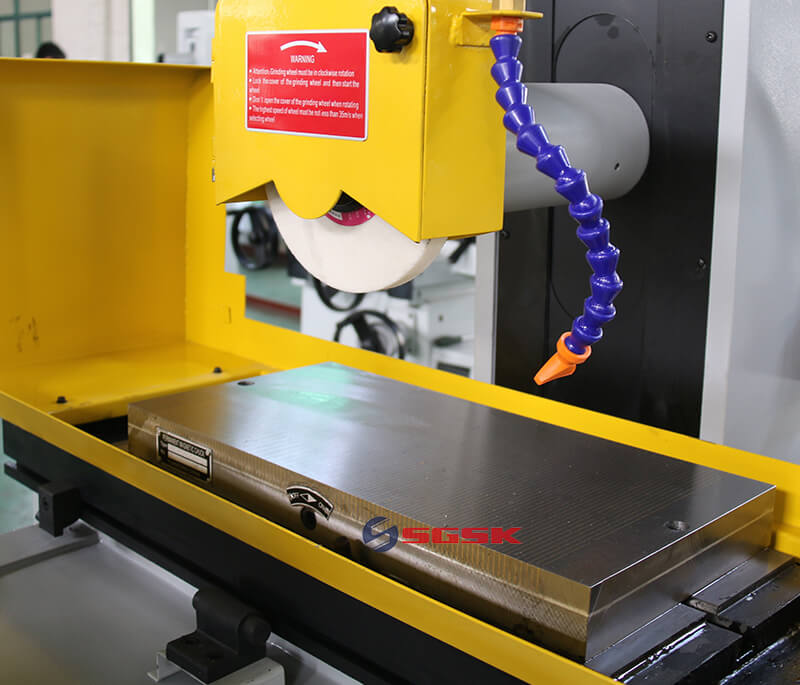

6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Manual Surface Grinder Machine Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Manual Surface Grinder Machine Main Technical Parameters:
Specification | Unit | M1022 |
Worktable size (L * W) | mm | 540×250 |
Max. travel of table (L * W) | mm | 560×260 |
Table T slot (slot number x slot width) | mm | 1×14 |
The grinding wheel size (o. d * w * i. d.) | mm | φ200×20×Φ31.75 |
Distance spindle center line to working table | mm | 420 |
Grinding wheel speed 50HZ | r/min | 2850 |
Grinding wheel speed 60HZ | r/min | 3360 |
The vertical (up and down) feed handwheel feed Handwheel per turn | mm | 1.25 |
The vertical (up and down) feed handwheel feed Handwheel per lattice | mm | 0.01 |
Transverse (front and rear) feed handwheel feed Handwheel per turn | mm | 4.0 |
Transverse (front and rear) feed handwheel feed Handwheel per lattice | mm | 0.02 |
Spindle motor | kw | 1.5 |
Cooling motor | W | 40 |
he process surface of the base level of the parallel degree | mm | 300:0.005 |
Surface roughness | μm | Ra0.32 |
Net weight | kg | 850 |
Gross weight | kg | 950 |
External size (L * w * h) | mm | 1680x1140x1760 |
Packing size (L * w * h) | mm | 1200x1400x1940 |
