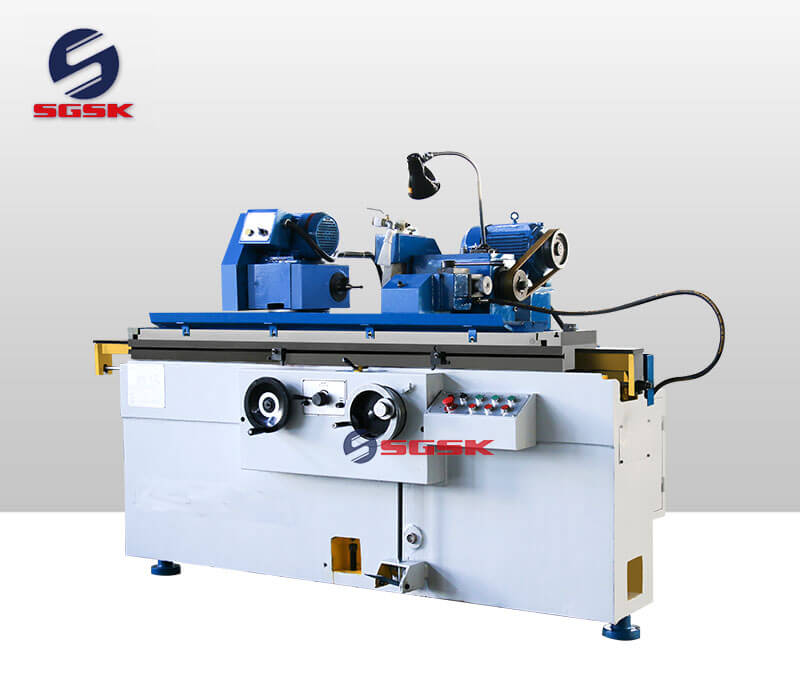

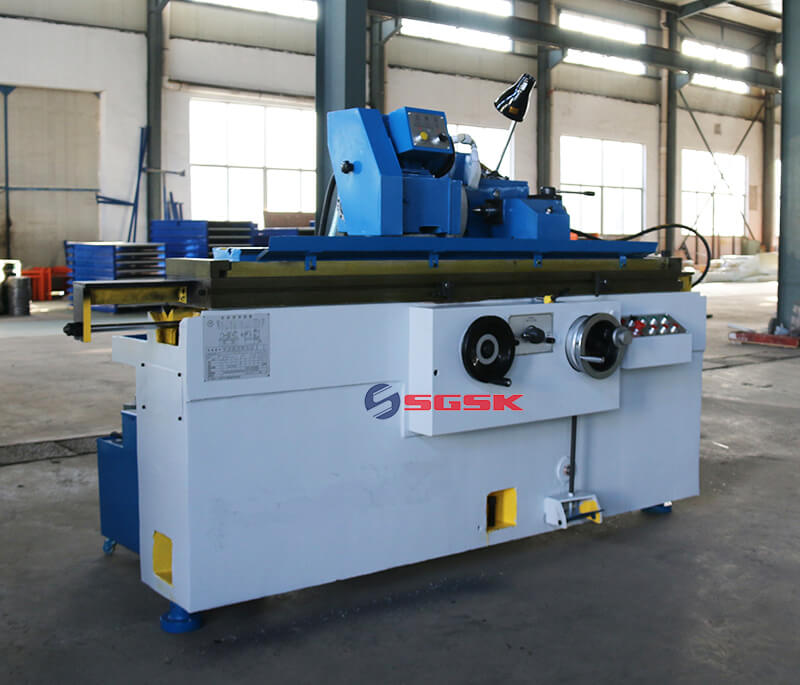

M1363 Cylindrical Grinding Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications		Units	M1363	MQ1363
Max. length ground(O.D)		mm	2000、3000、4000、5000	1500、2000、3000、4000
Center height		mm	370	350
Dia. Ground(O.D)		mm	30-630	30 ~ 630
Max. weight of work piece kg		kg	3000	1500
Center taper		MT	metric80	6
Spindle speed		r/min	50HZ:6.5~65 stepless	50HZ:10~100 stepless
Wheel size (ODxWxID)		mm	75075305	75075305
Peripheral velocity		m/s	35	35
wheel spindle speed		r/min	870	870
Wheel head rapid travel		mm	100	100
Max. travel		mm	475	438
Hand feed per rev		mm/rev	rough:4 precision：0.5	rough:4 precision：0.5
Hand feed per gra		mm/gra	rough：0.02 precision：0.0025	rough：0.02 precision：0.0025
Wheel size (ODxWxID)		mm	75075305	75075305
Peripheral velocity		m/s	35	35
Hand feed per		mm/rev	5	5
Max. swiveling angle of table	Cockwise	°	2° (2000) 1° (3000) 1° (4000) 1° (5000)	3° (1500) 2° (2000) 2° (3000) 1° (4000)
Max. swiveling angle of table	Anticlockwise	°	4° (2000) 3° (3000) 2° (4000) 1.5° (5000)	6° (1500) 5° (2000) 3° (3000) 2° (4000)
Longitudinal speed range of table		m/min	0.1~2.5	0.1-3
Center taper		MT	metric80#	6
Quill travel mm		mm	70	70
Wheelhead motor power		kw	22	18.5
Workhead motor power		kw	15	5.5
Machine weight		kg	1800(2000) 2200(3000) 2300(4000) 2600(5000)	1000(1500) 1100(2000) 1770(3000) 2000(4000)
Overall dimension(L * W * H)		mm	640024002260(2000)	456020902100(1500)
			826024002260(3000)	546020902100(2000)
			1050024002260(4000)	746020902100(3000)
			1250024002260(5000)	946020902100(4000)
