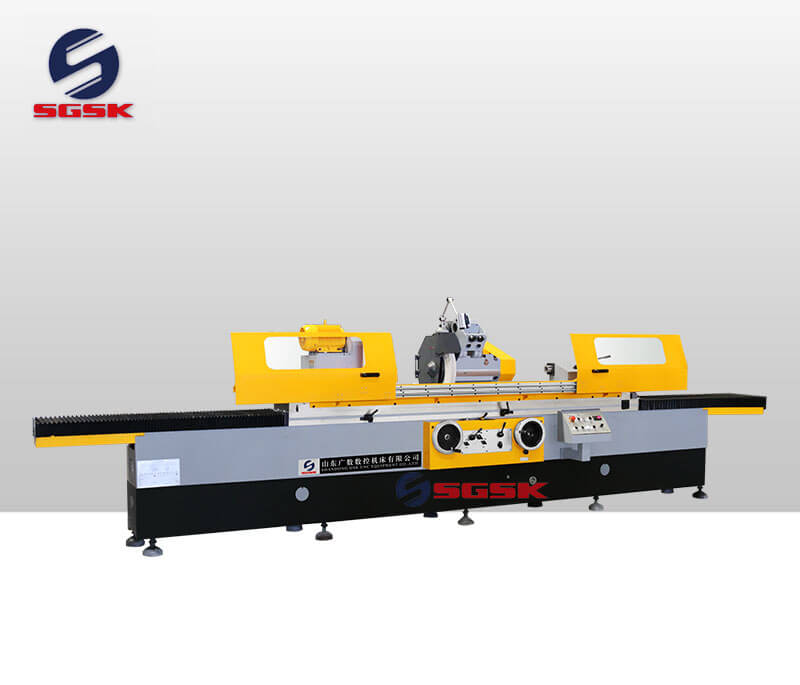

Product Main Technical Parameters

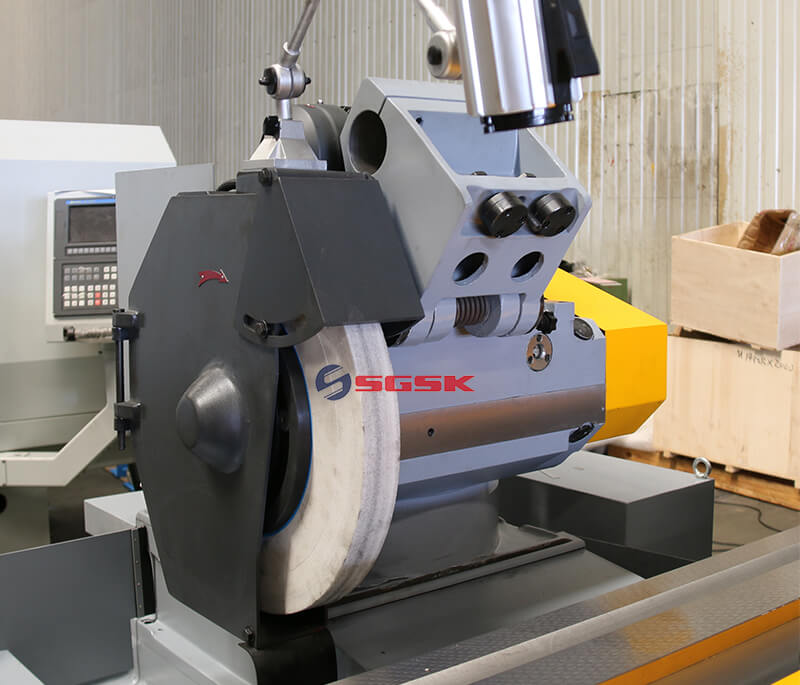

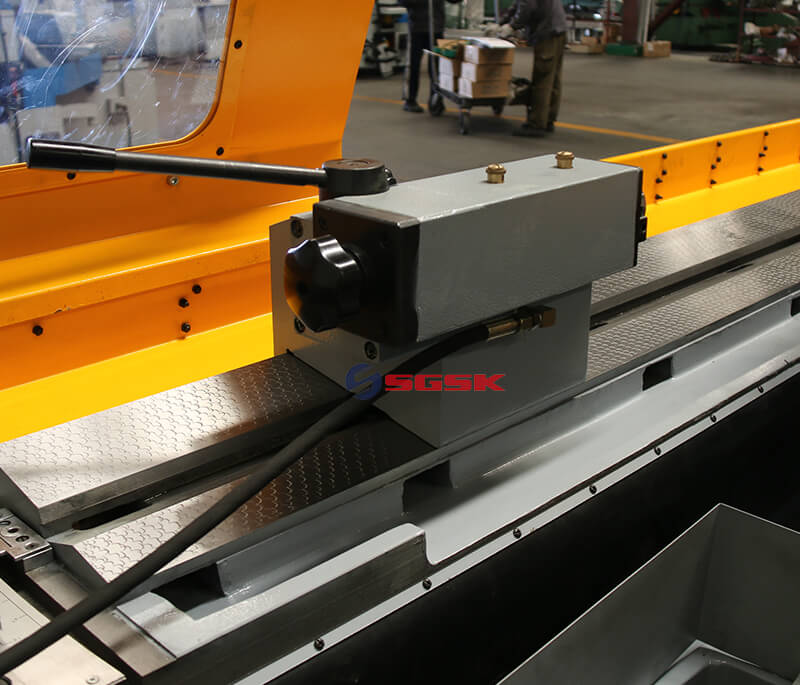

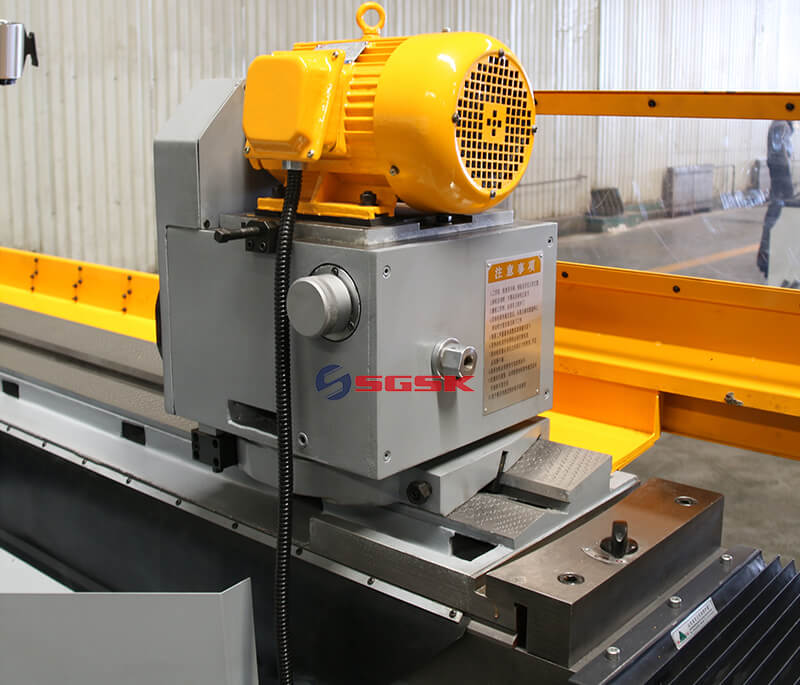

Specifications | Units | M1432B |
Distance between centers | mm | 1000、 1500、 2000、 3000 |
Center height | mm | 180 |
Dia. Ground(O.D) | mm | 8-320 |
Dia. Ground(I.D) | mm | 30-100 |
Max. length ground(O.D) | mm | 1000、 1500、 2000、 3000 |
Max. length ground(I.D) | mm | 125 |
Max. weight of work piece | kg | 150 |
Swiveling angle | ° | +90° |
Center taper | MT | 4 |
Spindle speed | r/min | 50HZ:25〜220 Stepless |
Wheel spindle speed | r/min | 1670 |
Wheelhead rapid travel | mm | 50 |
Max. travel | mm | 246 |
Swiveling angle | ° | -30° |
Hand feed per rev | mm/rev | rough:2 precision:0.5 |
Hand feed per gra | mm/gra | rough:0.01 precision:0.0025 |
Wheel size (ODxWxID) | mm | 400 * 50 * 203(1000、1500)、500*50*203(2000、3000) |
Peripheral velocity | m/s | 35 |
Spindle speed | r/min | 10000/15000 |
Wheel size (OD*W*ID) | mm | Max.:50*25*13 Min.:17*20*6 |
Hand feed per rev | mm/rev | 6 |
Clockwise | ° | 3° |
Anticlockwise ° | ° | 7° (1000) 6° (1500) 5° (2000) 3° (3000) |
Longitudinal speed range of table | m/min | 0.1-4 |
Center taper | MT | 4 |
Quill travel | mm | 30 |
Wheelhead motor power | kw | 5.5 (1000、1500) 7.5 (2000、3000) |
Internal grinding | kw | 1.1 |
Workhead motor power | kw | 1.5 |
Machine weight | kg | 53000 (1000) 61000 (1500) 79000 (2000) 99000 (3000) |
Overall dimension(L * W * H) | mm | 3260*2000*2050 (1000) |
4260*2000*2050 (1500) | ||
5400*2000*2050 (2000) | ||
7390*2000*2050 (3000) |
