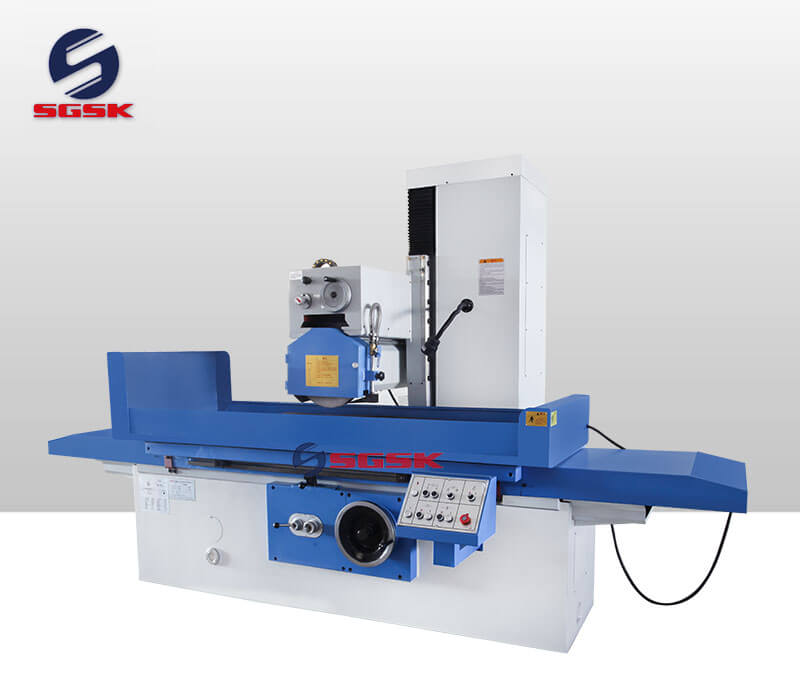

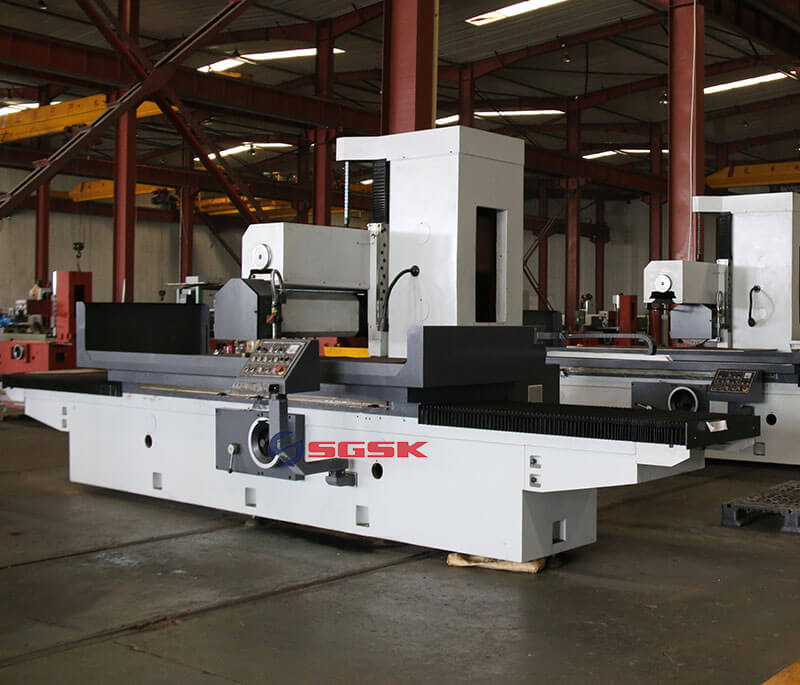

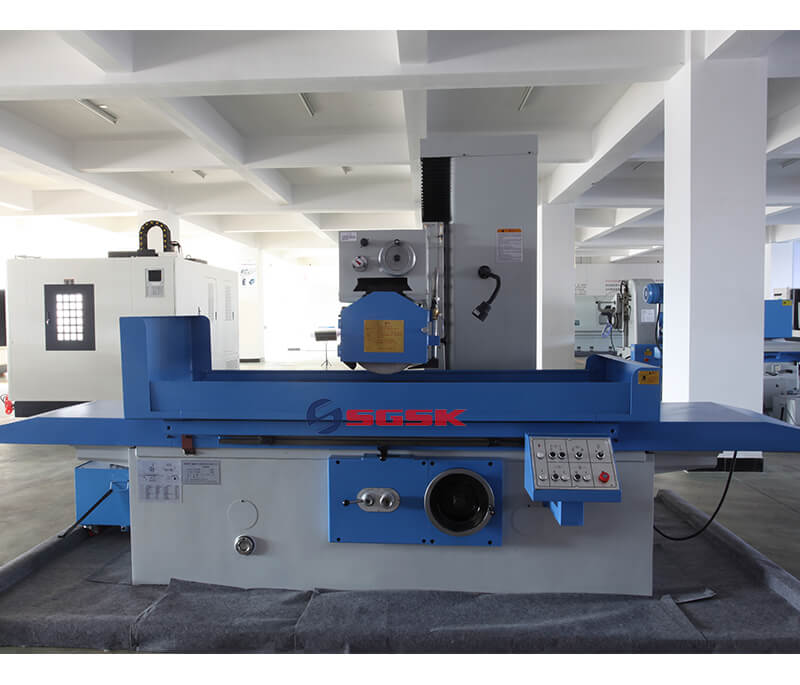

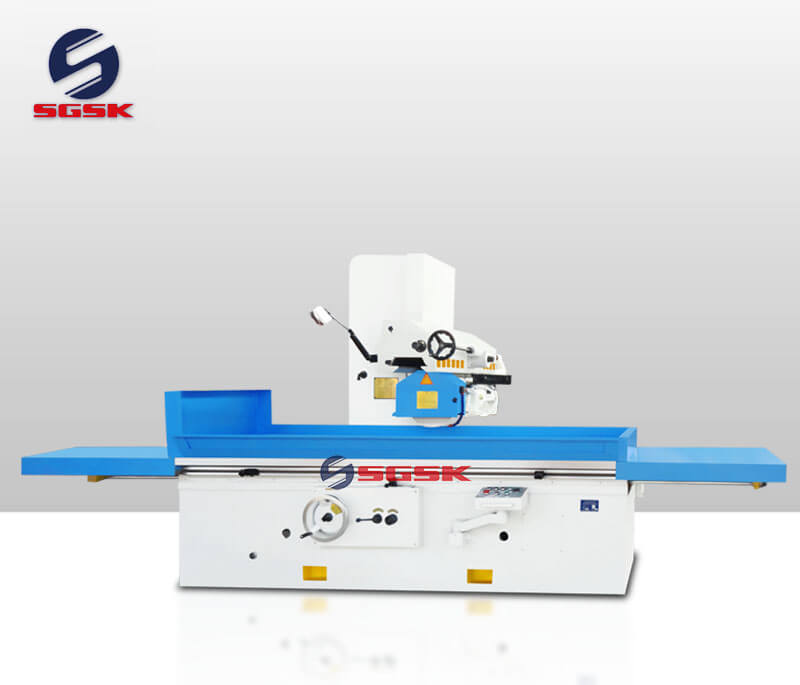

M7130 Hydraulic Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

Hydraulic Surface Grinder Machine Main Performance Characteristics：

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

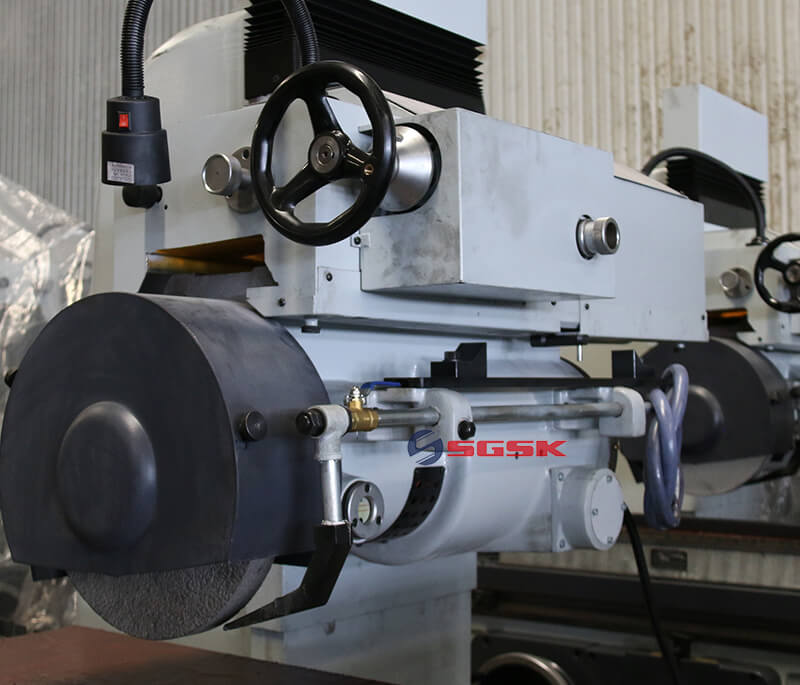

Grinding head vertical rapid lifting, improve production efficiency.

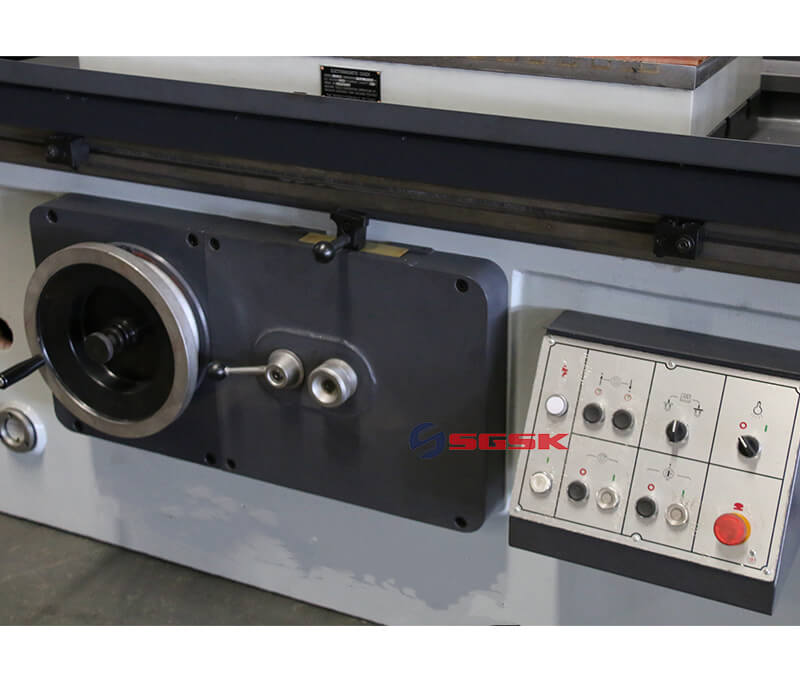

The grinding head lateral movement driven by hydraulic motor, which can also be manually.

The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Hydraulic Surface Grinder Machine Main Technical Parameters:

Model Description .		Unit	M7130A	M7130B	M7130C
Max distance from table surface to spindle center		mm	575	975	1375
Max.longitudinal travel		mm	1100	1100	1100


Min. longitudinal travel		mm	200	200	200
Table longitudinal speed		m/min	3-27	3-27	3-27
TableT slot No*width		Noxmm	3x18	3x18	3x18
Wheelhead cross moving	Continuous feeding speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
Wheelhead cross moving	Feed travel	mm/t	3-30	3-30	3-30
Wheel head vertical moving	Rapid speed	mm/min	400	400	400
	Per Rev. feed of hand wheel	mm/gra	0.005	0.005	0.005
	Per Rev. feed of ha nd wheel	mm	0.645	0.645	0.645
Wheelhead motor	Power	kw	5.5	5.5	5.5
Wheelhead motor	Speed	rpm	1440	1440	1440
Total rated power		kw	11	11.2	11.2
Grinding wheel size（ODx WxiD）		mm	350x40x127	350x40x127	350x40x127
Machine tool weight		kg	3500	3700	4000
