Product Main Technical Parameters

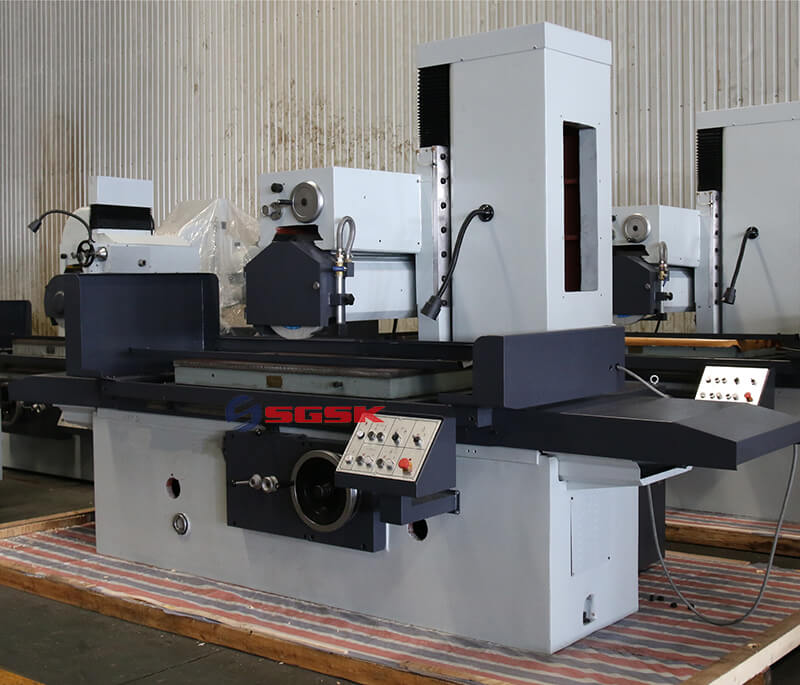

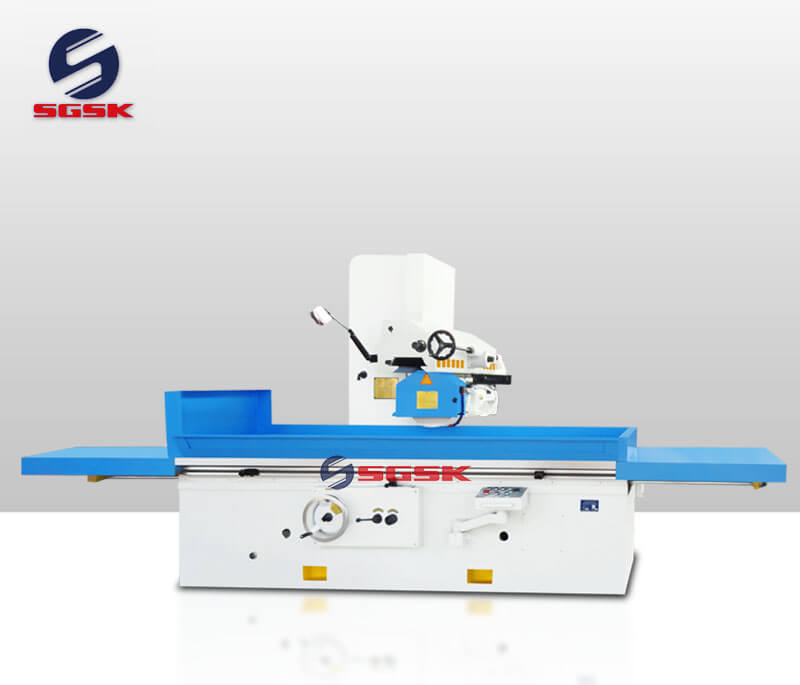

Hydraulic Surface Grinder Machine Main Performance Characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

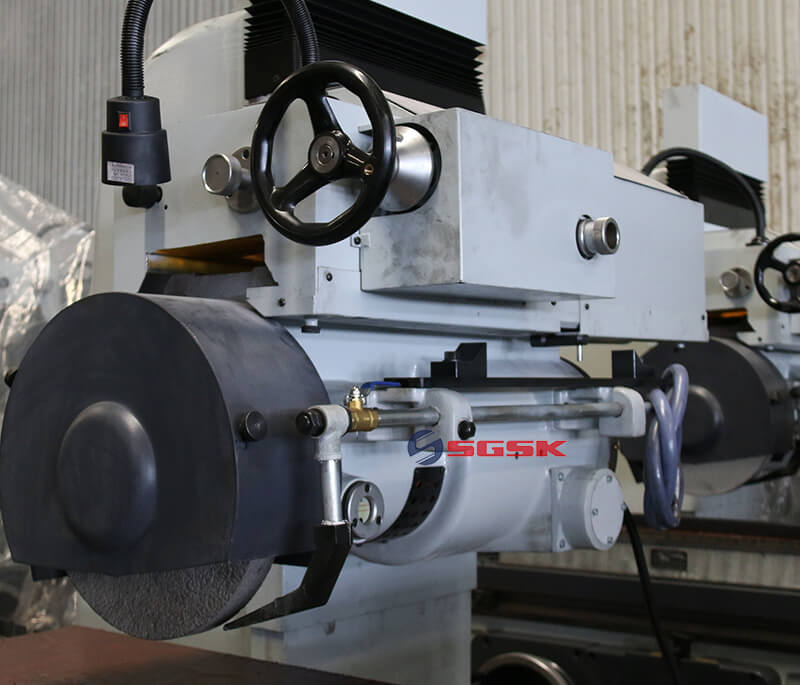

Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Hydraulic Surface Grinder Machine Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Hydraulic Surface Grinder Machine Main Technical Parameters:
Description | Units | M7150x1250 | M7150x1600 | M7150x2000 | |
Size of work table(L x W x H) | mm | 1250x500 | 1600x500 | 2000x500 | |
Max. Longitudinal movement of worktable | mm | 1350 | 1700 | 2100 | |
Max. Distance from the spindle centerline to the worktable surface | mm | 800 | 800 | 800 | |
Max. Cross movement of grinding head | mm | 580 | 580 | 580 | |
Max. Vertical movement of grinding head | mm | 600 | 600 | 600 | |

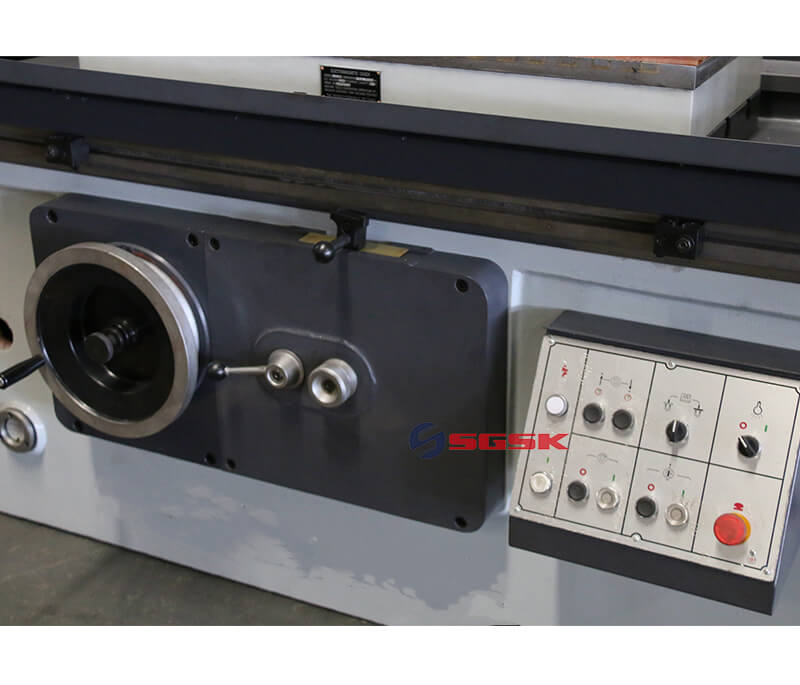

Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
Each turn | mm | 1.00 | 1.00 | 1.00 | |
Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
Speed | R/min | 1450 | 1450 | 1450 | |
Abrasive wheel dim (L x D x W) | mm | 400x127x40 | 400x127x40 | 400x127x40 | |
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
Total power of motor | KW | 12 | 14 | 14 | |
Power of spindle motor | KW | 7.5 | 7.5 | 7.5 | |
Power of oil pump motor | KW | 4 | 5.5 | 5.5 | |
Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
Package(L x W x H) | mm | 3800x2700x2800 | 4500x2700x2800 | 5600x2700x2800 | |
Net weight | Kg | 4500 | 4600 | 4700 |
