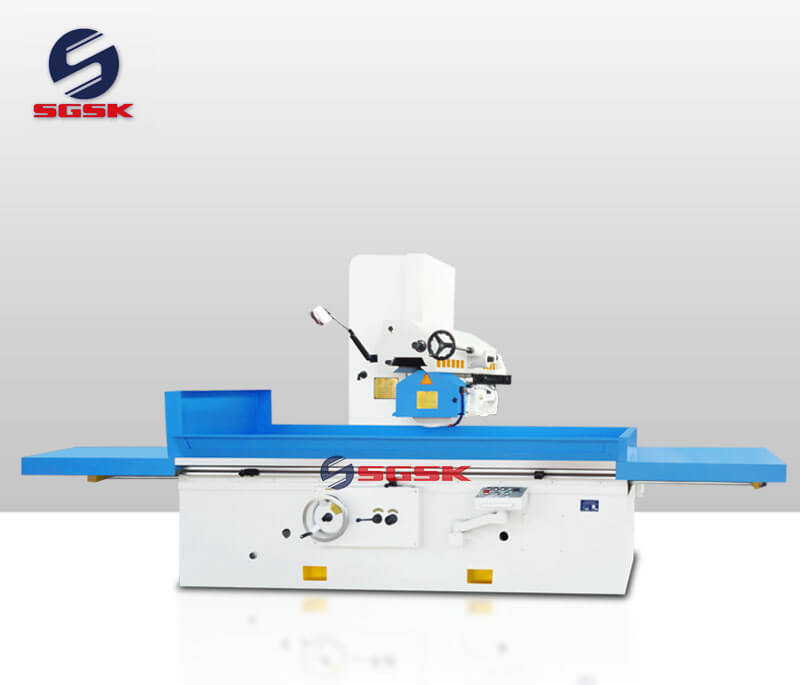

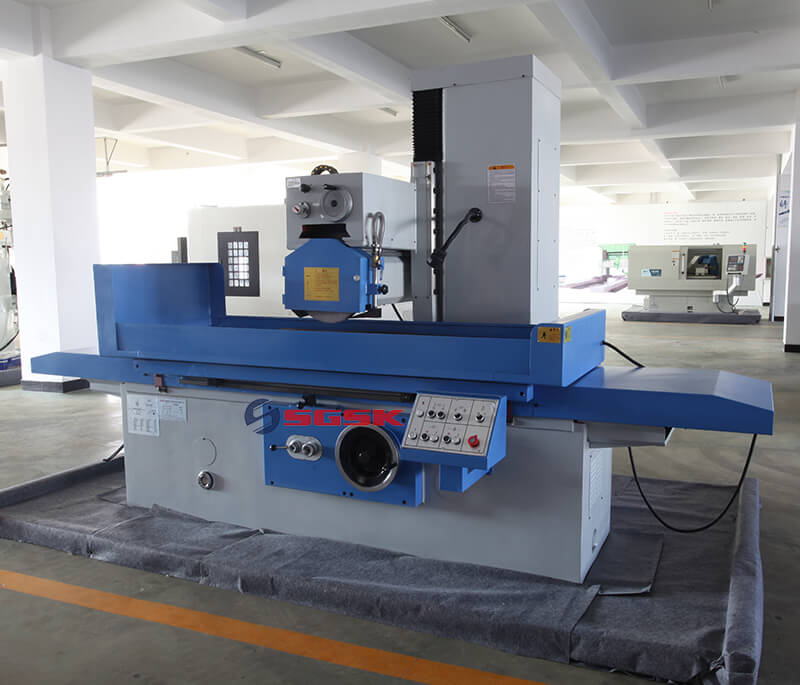

M7170 Hydraulic Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

Hydraulic Surface Grinder Machine Main Performance Characteristics：

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

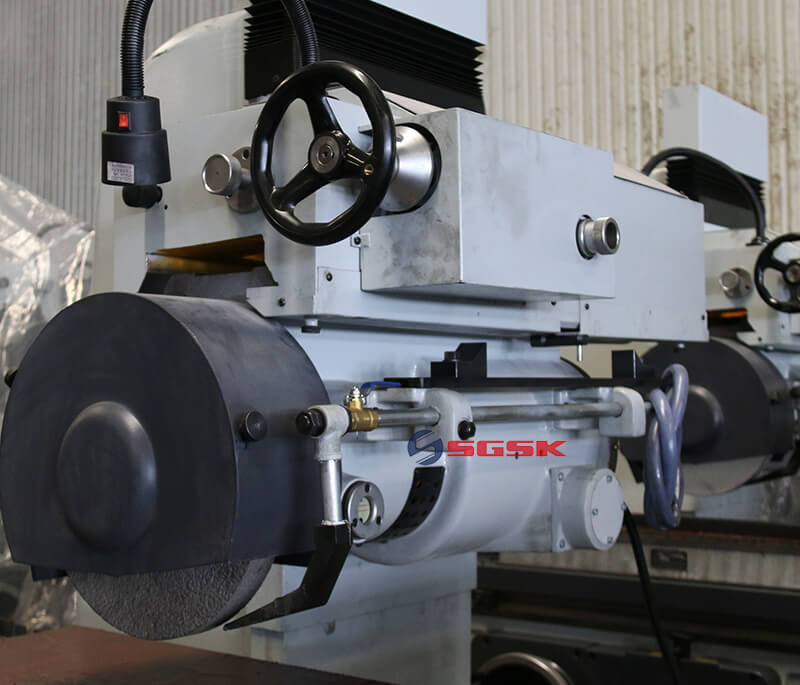

Grinding head vertical rapid lifting, improve production efficiency.

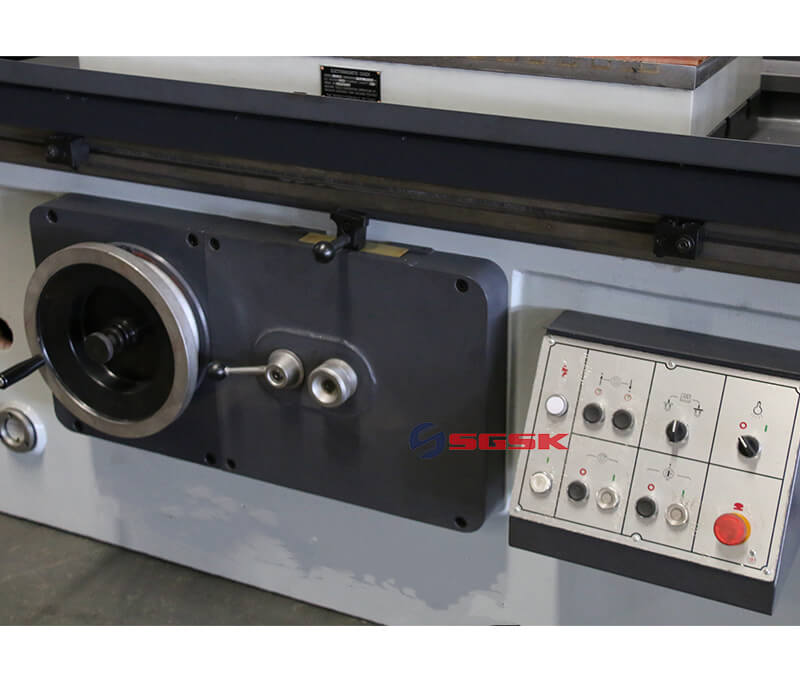

The grinding head lateral movement driven by hydraulic motor, which can also be manually.

The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Hydraulic Surface Grinder Machine Main Technical Parameters:

Model Description .	Unit	M7170x1250	M7170x1600	M7170x2200
Max distance from table surface to spindle center	mm	700	700	700
Max.longitudinal travel	mm	1350	1700	2300
Min. longitudinal travel	mm	200	200	200
Max size to be ground	mm	700x1250x500	700x1600x500	700x2200x500
Max load capacity	kg	1100	1400	1800
Table longitudinal speed	m/min	3-27	3-27	3-27
TableT slot No*width	Noxmm	3x22	3x22	3x22
Wheelhead cross moving - Continuous feeding speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
Wheelhead cross moving - Feed travel	mm/t	3-30	3-30	3-30
Wheelhead cross moving- Per div feed of handwheel	mm	0.02	0.02	0.02
Wheel head vertical moving - Rapid speed	mm/min	400	400	400
Wheel head vertical moving - Per Rev. feed of hand wheel	mm/gra	0.005	0.005	0.005
Wheel head vertical moving - Per Rev. feed of ha nd wheel	mm	0.515	0.515	0.515
Wheelhead motor -Power	kw	11	11	11
Wheelhead motor - Speed	rpm	1440	1440	1440
Total rated power	kw	19.75	19.75	19.75
Grinding wheel size（ODx WxiD）	mm	400x50x203	400x50x203	400x50x203
Machine tool weight	kg	5600	6600	7200
