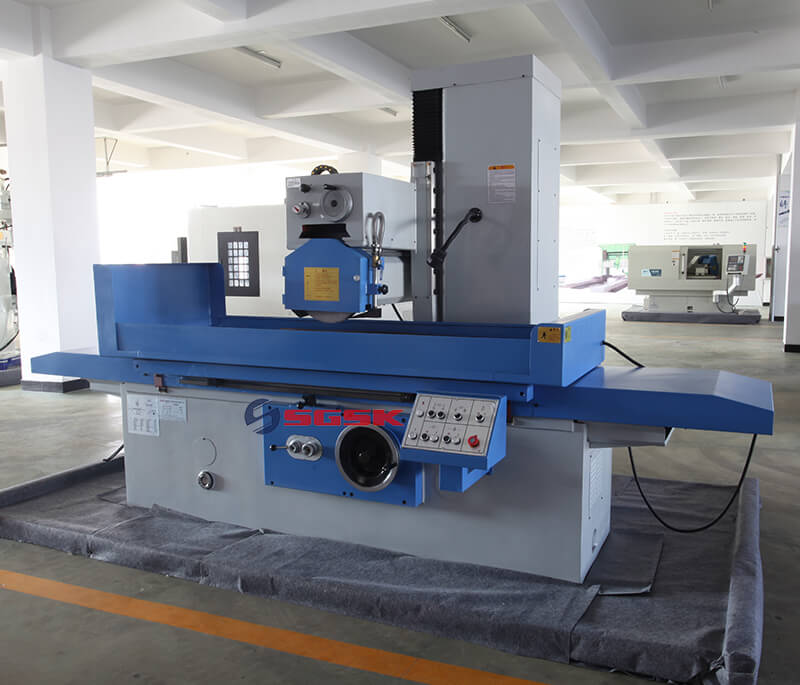

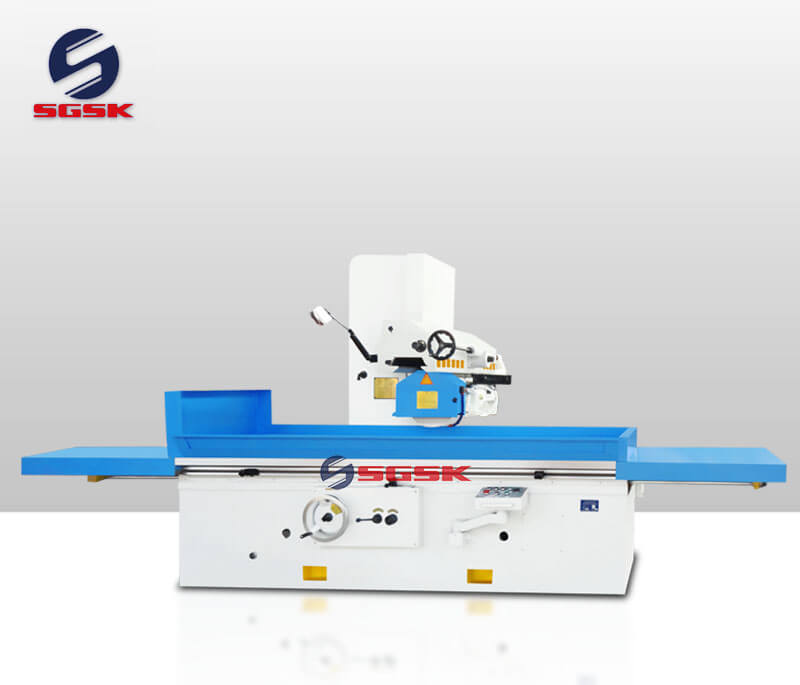

M7180 Hydraulic Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

Hydraulic Surface Grinder Machine Main Performance Characteristics：

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

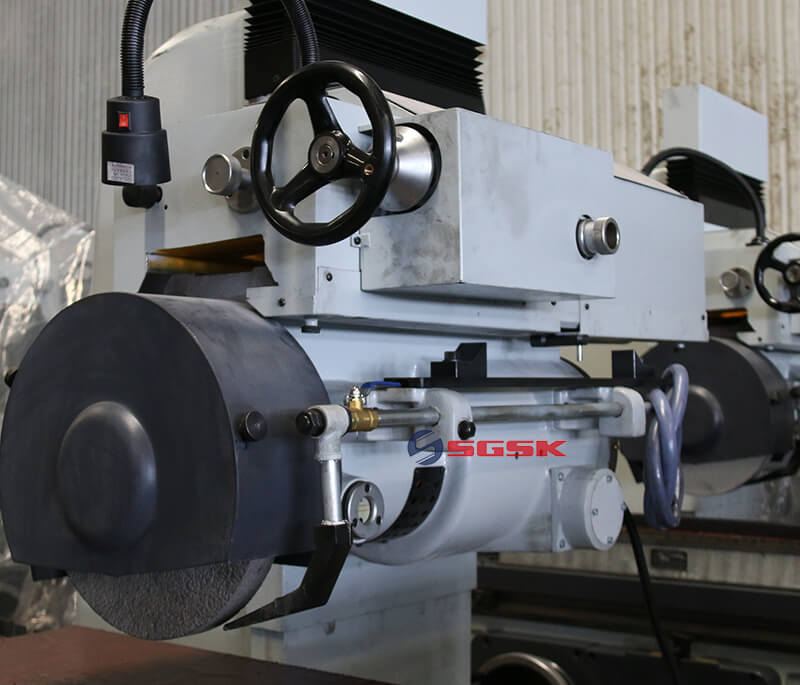

Grinding head vertical rapid lifting, improve production efficiency.

The grinding head lateral movement driven by hydraulic motor, which can also be manually.

The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Hydraulic Surface Grinder Machine Main Technical Parameters:

Specifications		Units	M7180x1250	M7180x1600	M7180x2000
Size of work table(L x W )		mm	1250x800	1600x800	2000x800
Max. Longitudinal movement of worktable		mm	1350	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	850	850	850
Max. Cross movement of grinding herd		mm	850	850	850
Max. Vertical movement of grinding head		mm	800	800	800

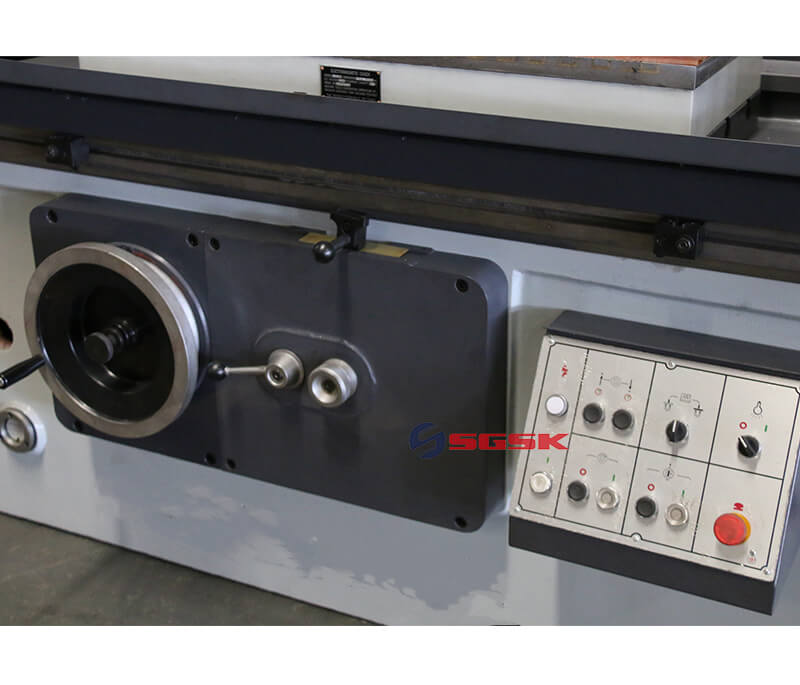

Vertical movement of the grinding head by hand wheel	per graduation	mm	0.01	0.01	0.01
Vertical movement of the grinding head by hand wheel	per graduation	mm	1.00	1.00	1.00
Rapid lifting motor	Power	kw	0.37	0.37	0.37
Rapid lifting motor	Speed	R/min	1450	1450	1450
Abrasive wheel dim (L x D x W)		mm	450x127x50	450x127x50	450x127x50
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		KW	20	20	20
Power of spindle motor		KW	11	11	11
Power of oil pump motor		KW	7.5	7.5	7.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Package(L x W x H)		mm	3800x2900x3100	4500x2900x3100	5500x2900x3100
Net weight		Kg	9000	10000	11000
