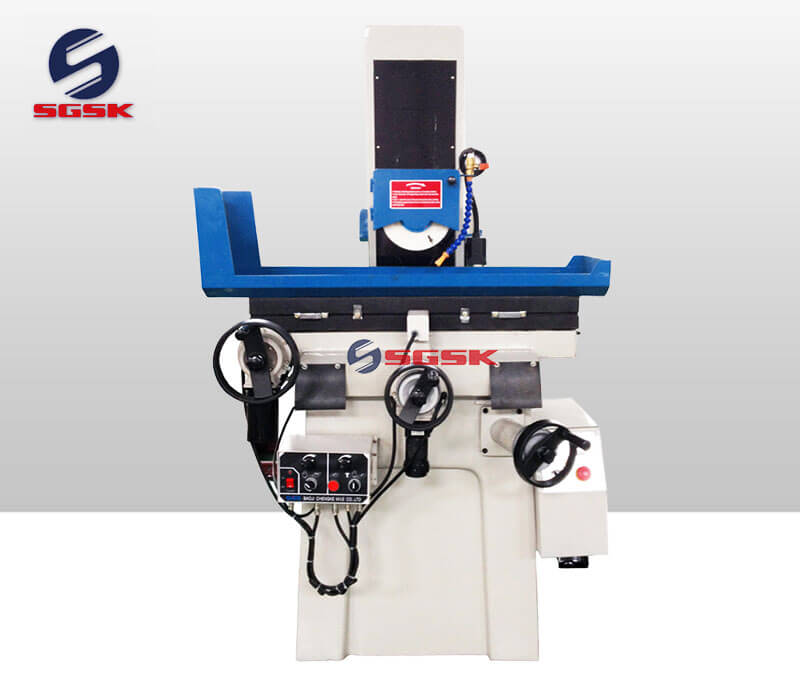

MD1022 Electric Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

Electric Surface Grinder Machine Main Performance Characteristics：

1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.

2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.

3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.

4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.

Electric Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Electric Surface Grinder Machine Main Technical Parameters:

Specifications						Units	MD1022
workbench	Worktable size (L * W)					mm	540×250
	Max. travel of table					mm	560×260
	Table T slot (slot number x slot width)					mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)					mm	φ200×20×Φ31.75
	Distance spindle center line to working table					mm	420
	Grinding wheel speed				50HZ	r/min	2850
					60HZ	r/min	3360
The amount of feed	Table longitudinal (left and right) speed					m/min	3-20
	Transverse (front and rear) feed handwheel feed			Continuous (stepless)		mm/min	400
				Intermittent (stepless)		mm/min	0-5
				Handwheel per turn		mm	4.0
				Handwheel per lattice		mm	0.02
	The vertical (up and down) feed handwheel feed				Handwheel per turn	mm	1.25
					Handwheel per lattice	mm	0.01
Reversing feeder	Total input power					W	150
	X- feeder output speed					r/min	0-225
	X- feeder size					mm	280×130×120
	Y- feeder output speed					r/min	0-120
	Y- feeder size					mm	280×130×120
Motor power		Spindle motor				kw	1.5
		Cooling motor				W	40
working accuracy	The process surface of the base level of the parallel degree					mm	300:0.005
	Surface roughness					μm	Ra0.32
Machine weight			Net weight			kg	880
			Gross weight			kg	980
External size (L * w * h)						mm	1680x1140x1760
Packing size (L * w * h)						mm	1200x1400x1940
