Product Model：

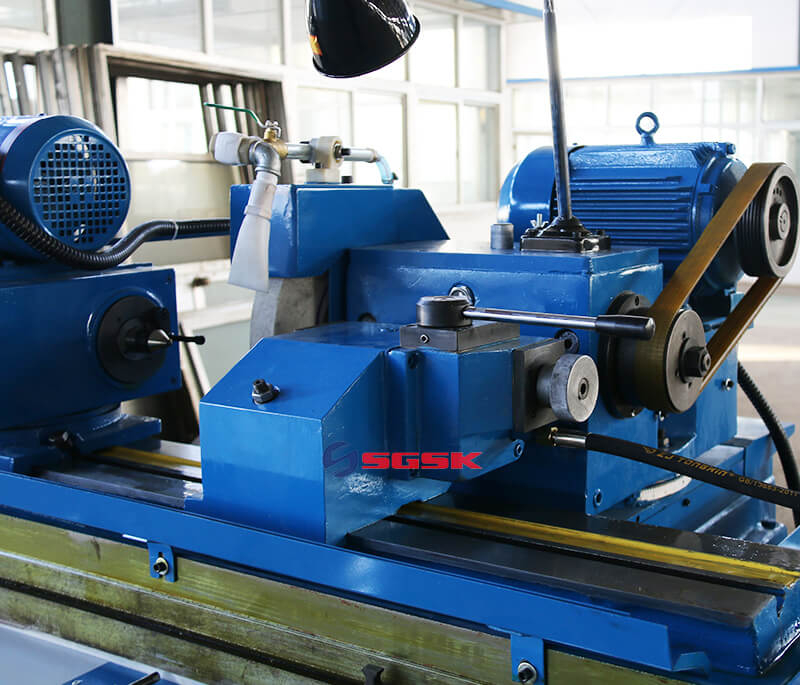

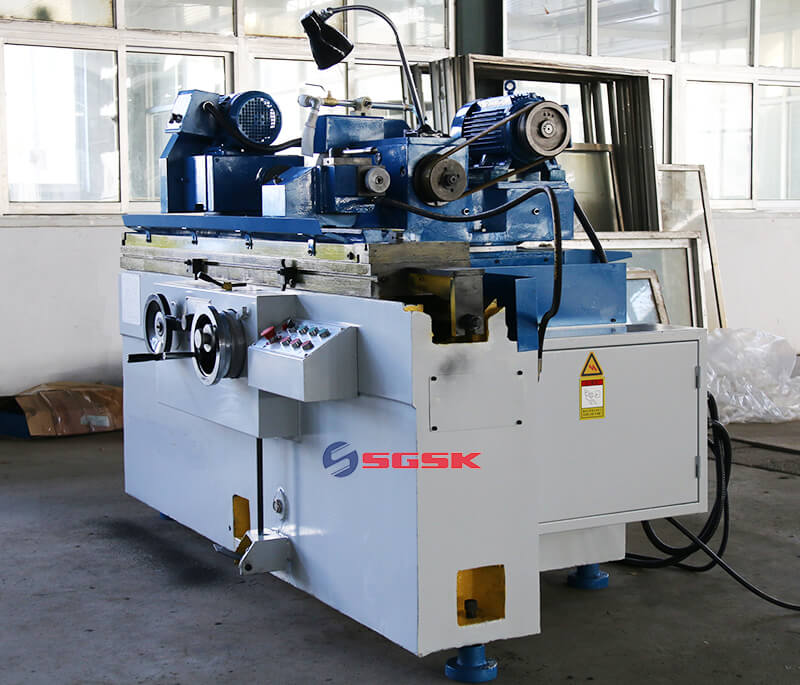

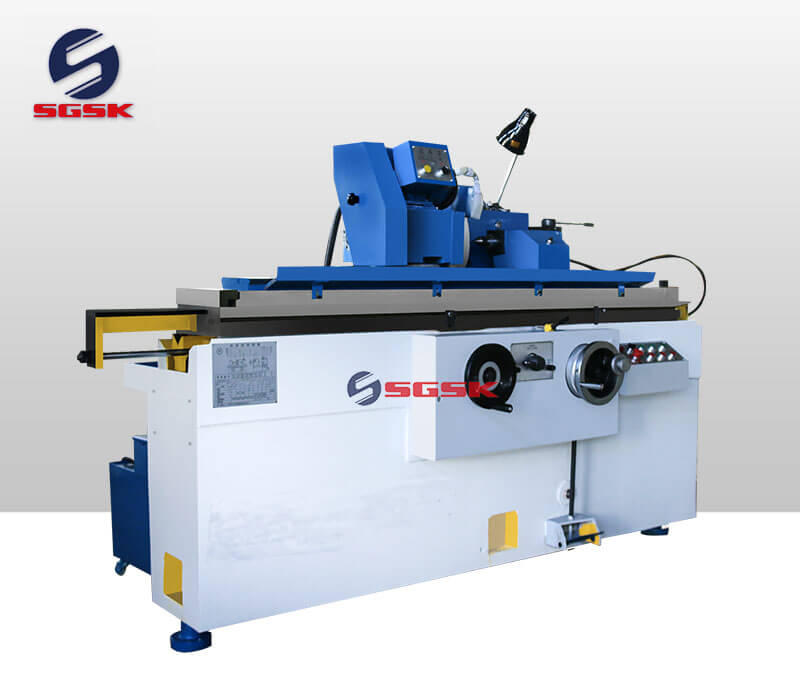

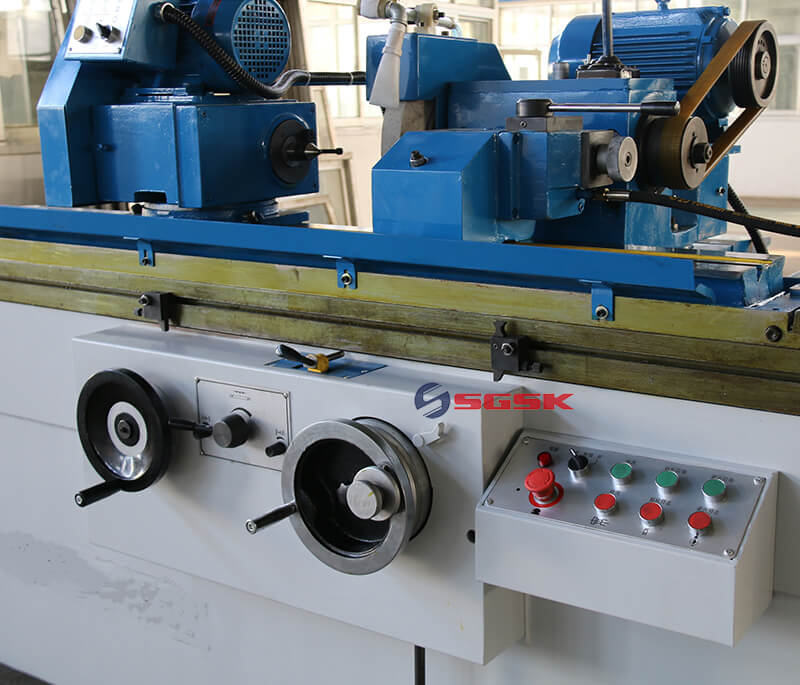

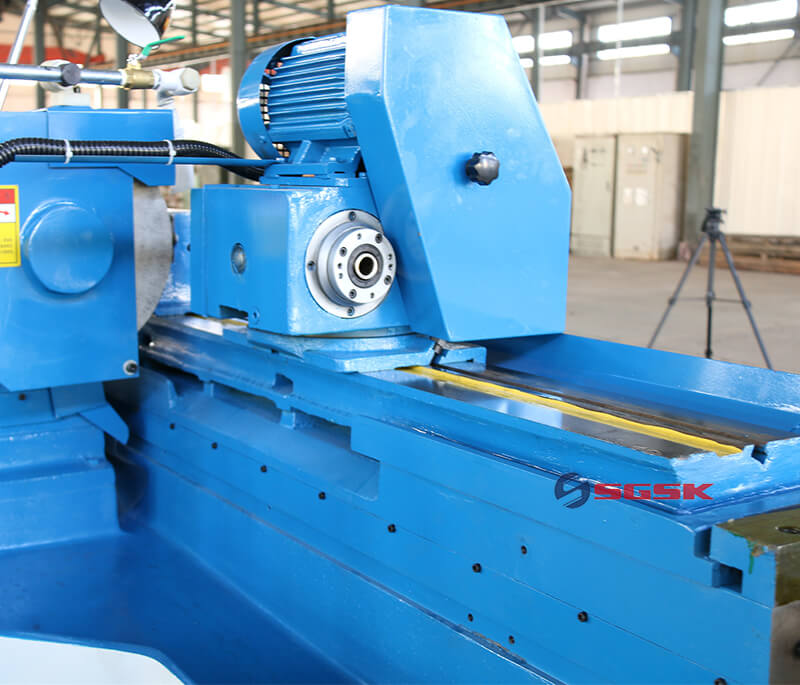

MQ1380A Cylindrical Grinding Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications		Units	MQ1380A
Max. length ground(O.D)		mm	3000、4000、5000
Center height		mm	500
Dia. Ground(O.D)		mm	50 ~ 800
Max. weight of work piece kg		kg	3000
Center taper		MT	metric80
Spindle speed		r/min	50HZ:5~50 stepless
Wheel size (ODxWxID)		mm	90075305
Peripheral velocity		m/s	35
wheel spindle speed		r/min	740
Wheel head rapid travel		mm	100
Max. travel		mm	550
Hand feed per rev		mm/rev	rough:4 precision：0.5
Hand feed per gra		mm/gra	rough：0.02 precision：0.0025
Wheel size (ODxWxID)		mm	90075305
Peripheral velocity		m/s	35
Hand feed per		mm/rev	5
Max. swiveling angle of table	Cockwise	°	1° (3000) 1° (4000) 1° (5000)
	Anticlockwise	°	3° (3000) 2° (4000) 1.5° (5000)
Longitudinal speed range of table		m/min	0.1~2.5
Center taper		MT	metric80#
Quill travel mm		mm	70
Wheelhead motor power		kw	22
Workhead motor power		kw	15
Machine weight		kg	3000(3000) 3600(4000) 4100(5000)
Overall dimension(L * W * H)		mm	826024002260(3000)
			1050024002260(4000)
			1250024002260(5000)
