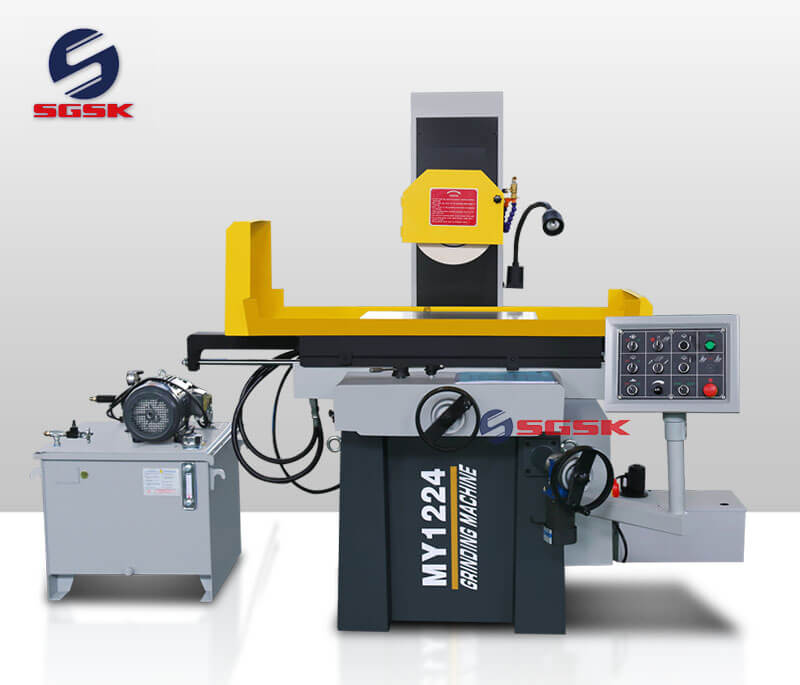

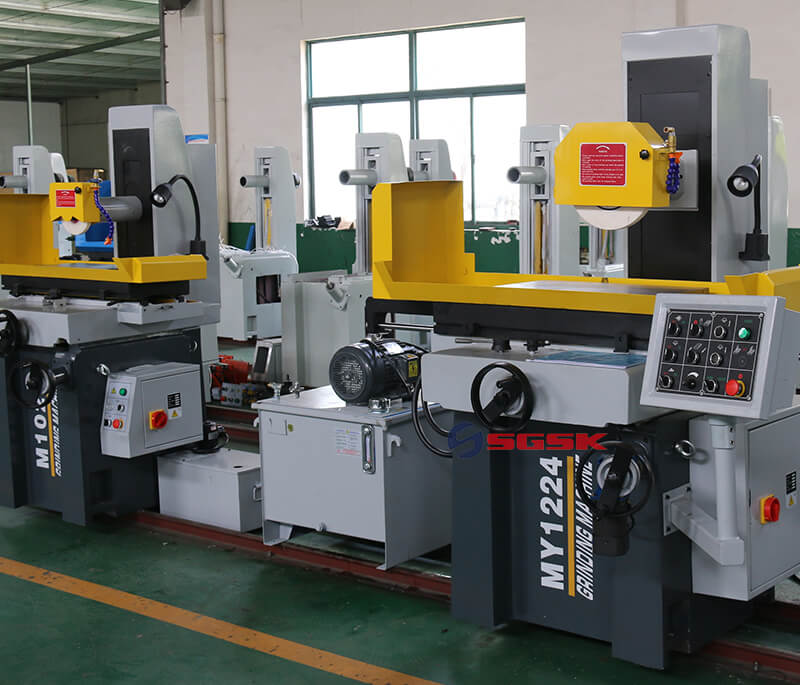

MY1022 Hydraulic Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

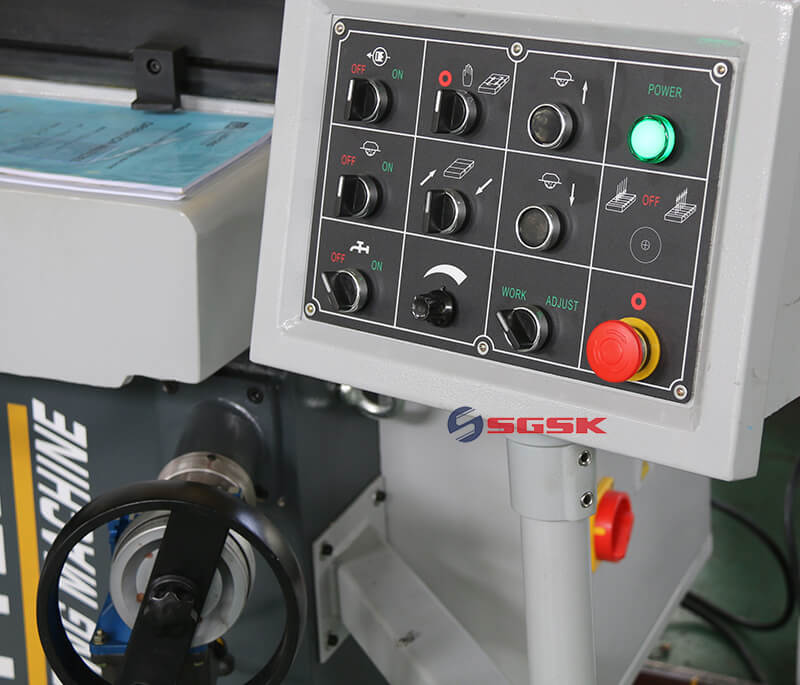

Hydraulic Surface Grinder Machine Main Performance Characteristics：

1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.

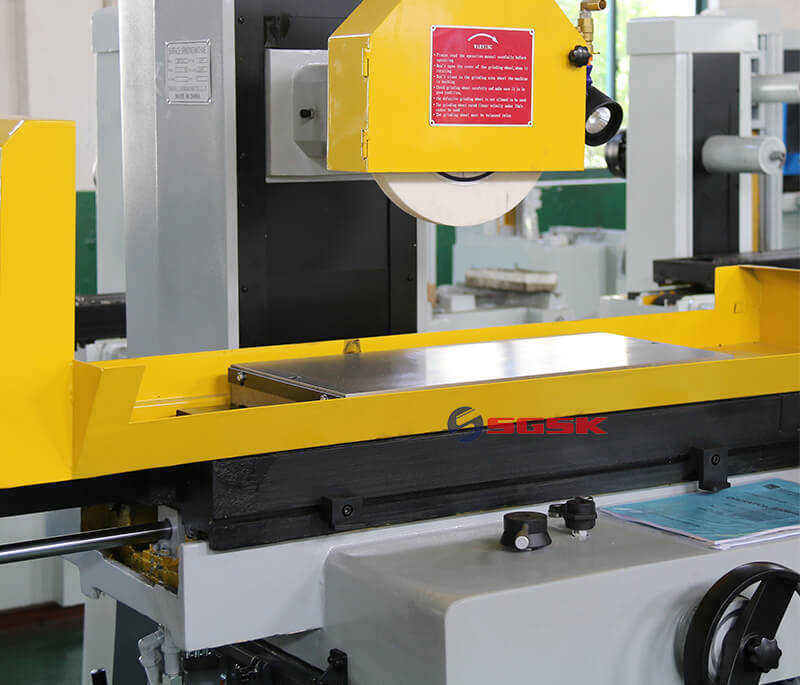

3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Hydraulic Surface Grinder Machine Main Technical Parameters:

Specifications			Units	MY1022
workbench	Worktable size (L * W)		mm	540×250
	Max. travel of table		mm	560×260
	Table T slot (slot number x slot width)		mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)		mm	φ200×20×Φ31.75
	Distance spindle center line to working table		mm	450
	Grinding wheel speed	50HZ	r/min	2850
		60HZ	r/min	3360
The amount of feed	Table longitudinal (left and right) speed		m/min	3-20
	Table transverse (front and rear) feed handwheel feed	Continuous (stepless)	mm/min	600
		Intermittent (stepless)	mm/times	0-5
	Table transverse (front and rear) feed handwheel feed	Handwheel per turn	mm	4.0
		Handwheel per lattice	mm	0.02
	The vertical (up and down) feed handwheel feed	Handwheel per turn	mm	1.25
		Handwheel per lattice	mm	0.01

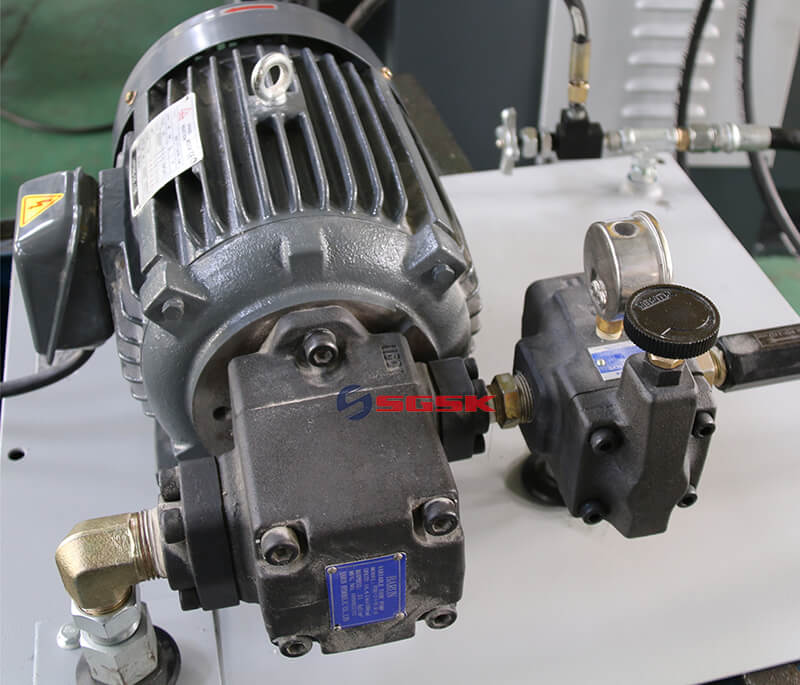

Hydraulic system	Hydraulic motor		kw	1.5
	working pressure		Mpa	3
	Fuel tank capacity		L	80
	Maximum flow rate		L/min	18
Motor power	Spindle motor		kw	1.5
	Cooling motor		W	40
working accuracy	The process surface of the base level of the parallel degree		mm	300:0.005
	Surface roughness		μm	Ra0.32
Machine weight		Net weight	kg	950
		Gross weight	kg	1050
External size (L * w * h)			mm	1680x1220x1720
Packing size (L * w * h)			mm	1730x1290x1940
