Product Main Technical Parameters

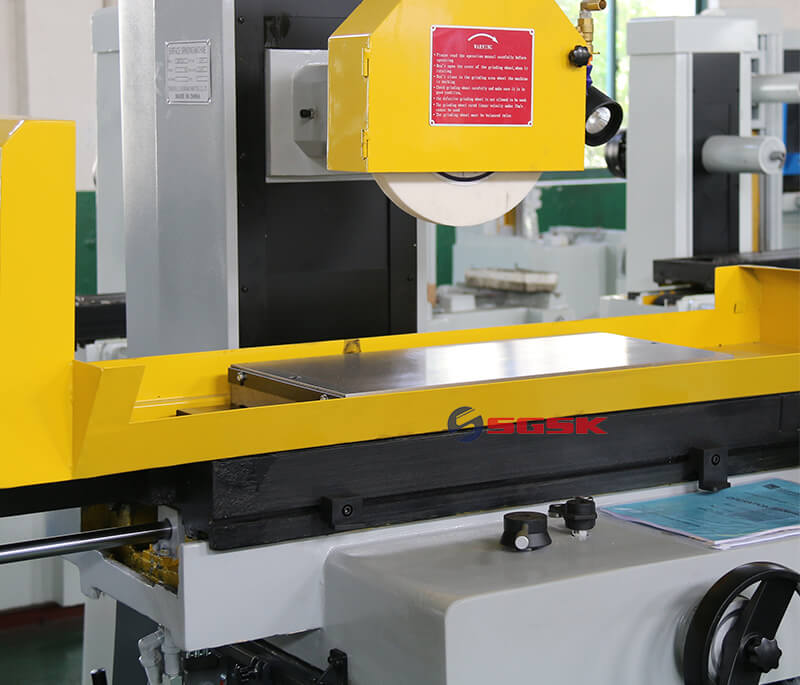

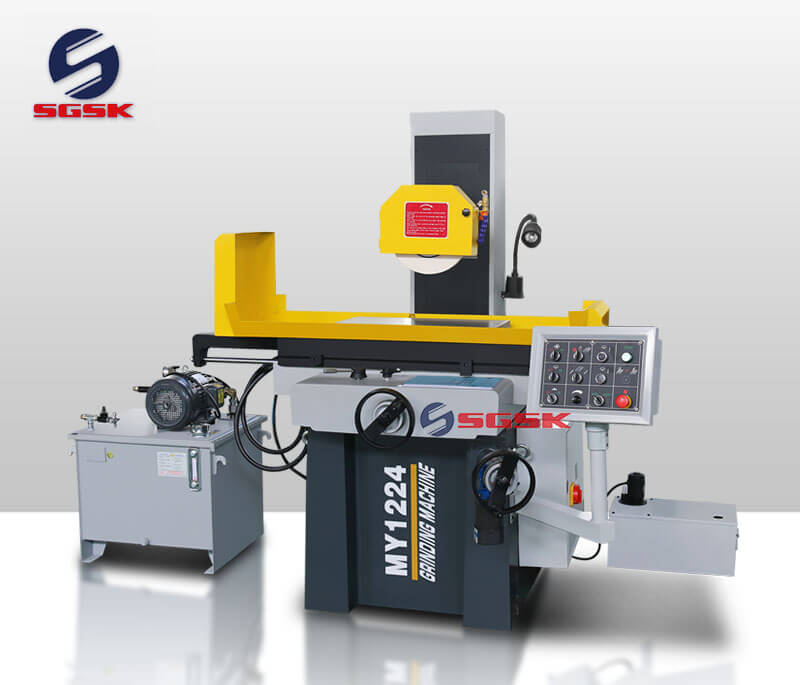

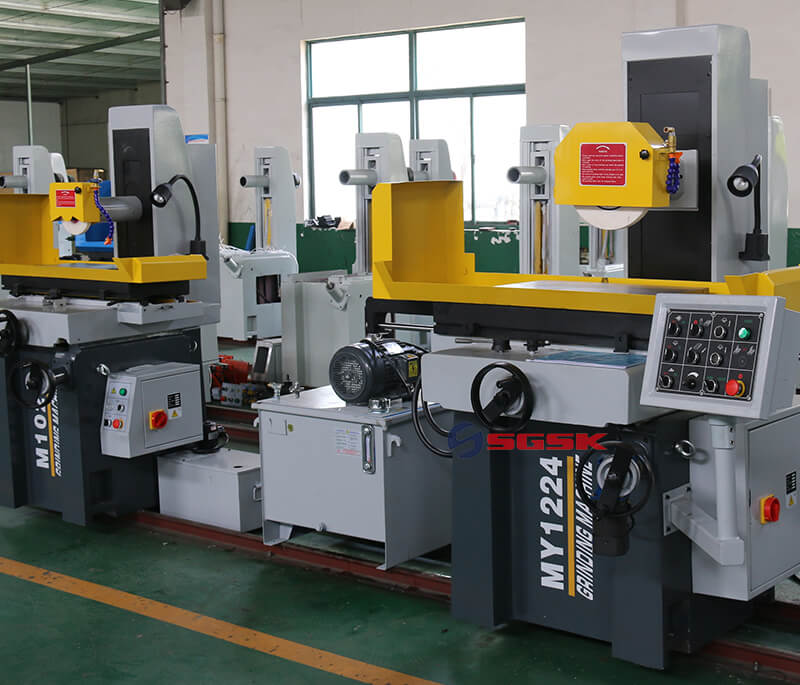

Hydraulic Surface Grinder Machine Main Performance Characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
Hydraulic Surface Grinder Machine Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Hydraulic Surface Grinder Machine Main Technical Parameters:
Specifications | Units | MY1224 | |||||
workbench | Worktable size (L * W) | mm | 600×300 | ||||
Max. travel of table | mm | 630×320 | |||||
Table T slot (slot number x slot width) | mm | 1×14 | |||||
Grinding head | The grinding wheel size (o. d * w * i. d.) | mm | Φ300×30×Φ76.2 | ||||
Distance spindle center line to working table | mm | 520 | |||||
Grinding wheel speed | 50HZ | r/min | 1450 | ||||
60HZ | r/min | 1680 | |||||
The amount of feed | Table longitudinal (left and right) speed | m/min | 3-20 | ||||
Table transverse (front and rear) feed handwheel feed | Continuous (stepless) | mm/min | 600 | ||||
Intermittent (stepless) | mm/times | 0-6 | |||||
Handwheel per turn | mm | 4.0 | |||||
Handwheel per lattice | mm | 0.02 | |||||
The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 2.0 | ||||
Handwheel per lattice | mm | 0.01 | |||||
Grinding head up and down is fast lifting speed (approximate value) | mm/min | 360 | |||||

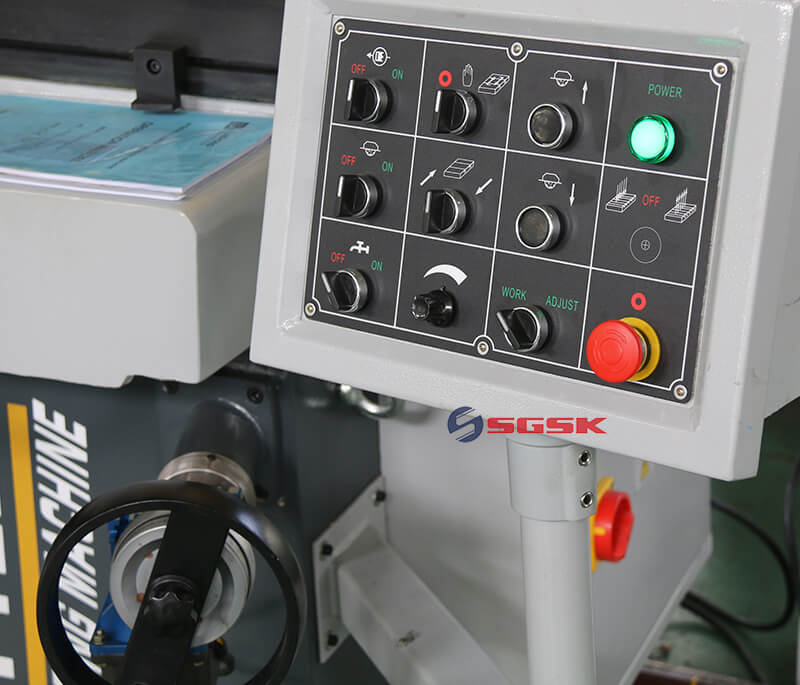

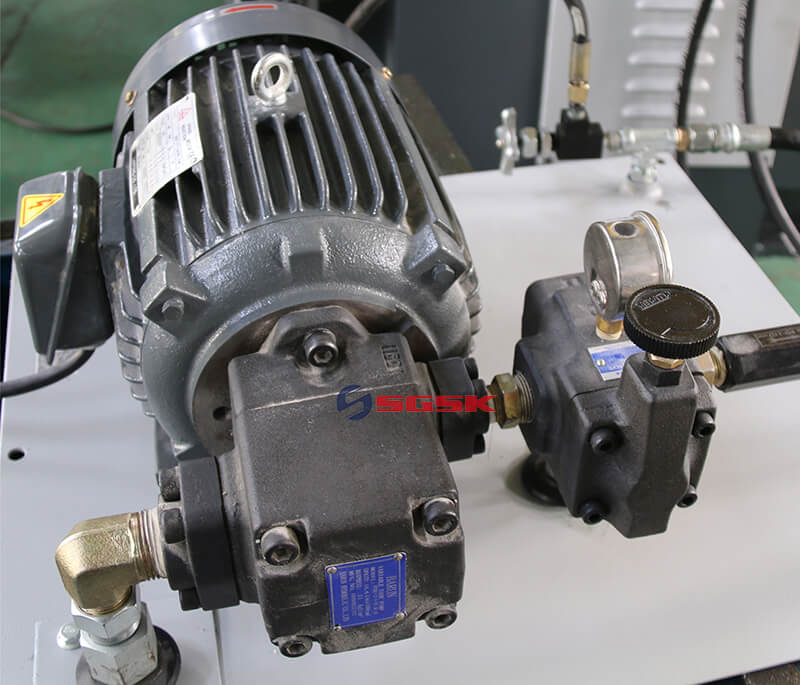

Hydraulic system | Hydraulic motor | kw | 2.2 | ||||
working pressure | Mpa | 4 | |||||
Fuel tank capacity | L | 100 | |||||
Maximum flow rate | L/min | 20 | |||||
Motor power | Spindle motor | kw | 2.2 | ||||
Cooling motor | W | 40 | |||||
Elevator motor | W | 120 | |||||
working accuracy | he process surface of the base level of the parallel degree | mm | 300:0.005 | ||||
Surface roughness | μm | Ra0.32 | |||||
Machine weight | Net weight | kg | 1400 | ||||
Gross weight | kg | 1530 | |||||
External size (L * w * h) | mm | 1960×1480×1850 | |||||
Packing size (L * w * h) | mm | 2000×1640×2020 |
