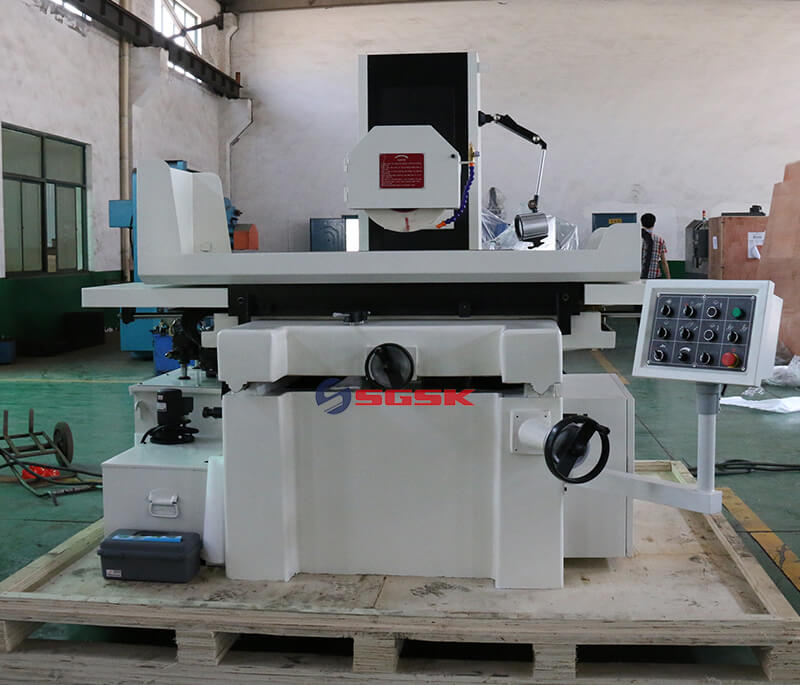

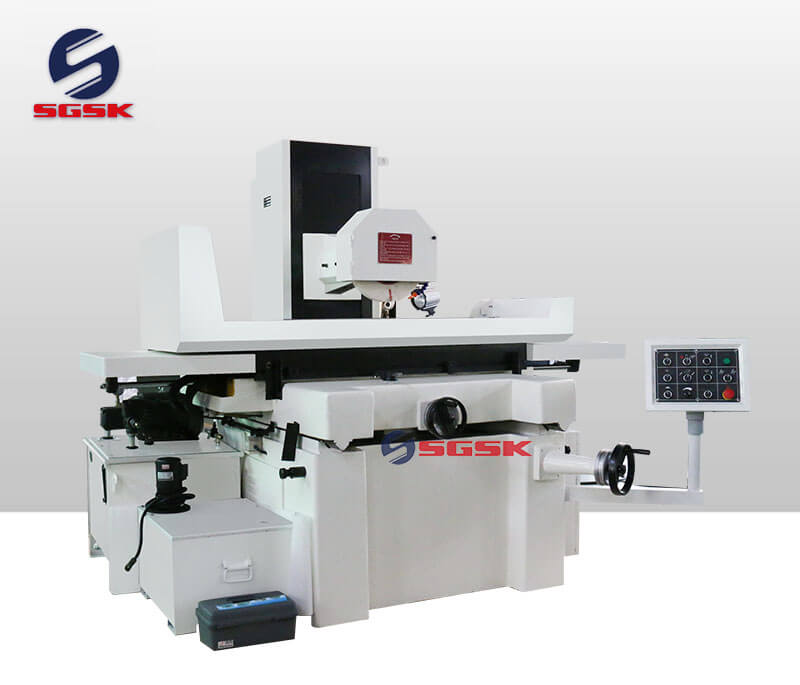

MY4080 Hydraulic Surface Grinder Machine

Inquire Now Next Product

Product Main Technical Parameters

Hydraulic Surface Grinder Machine Main Performance Characteristics：

1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.

3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Hydraulic Surface Grinder Machine Main Technical Parameters:

Specifications				Units	MY4080
workbench	Worktable size (L * W)			mm	800×400
	Max. travel of table			mm	900×480
	Table T slot (slot number x slot width)			mm	3×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	Φ355×40×Φ127
	Distance spindle center line to working table			mm	600
	Grinding wheel speed		50HZ	r/min	1450
			60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right)0 speed			m/min	3-25
	Transverse (front and rear) feed handwheel feed	Continuous (stepless)		mm/min	240
		Intermittent (stepless)		mm/times	0-8
		Handwheel per turn		mm	5.0
		Handwheel per lattice		mm	0.02
	The vertical (up and down) feed handwheel feed	Handwheel per turn		mm	0.8(1.0)
		Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)			mm/min	1000
Motor power		Spindle motor		Kw*P	4*4
		Cooling motor		W	125
		Elevator motor		W	180
		Hydraulic motor		KW*P	2.2*6
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005
	Surface roughness			μm	Ra0.4
Machine weight		Net weight		kg	2800
		Gross weight		kg	3200
External size (L * w * h)				mm	2550×1650×2200
