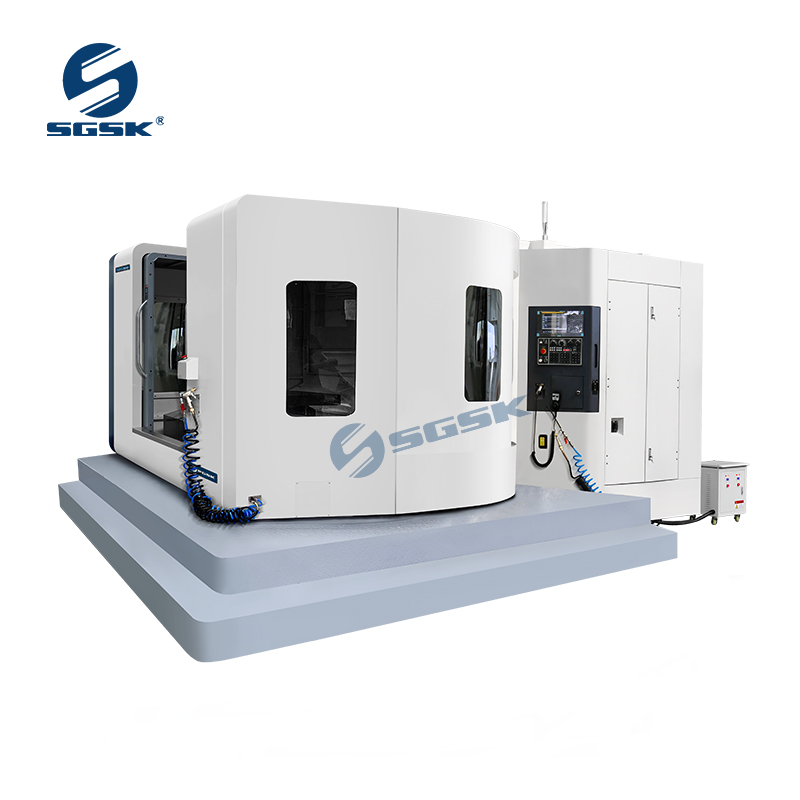

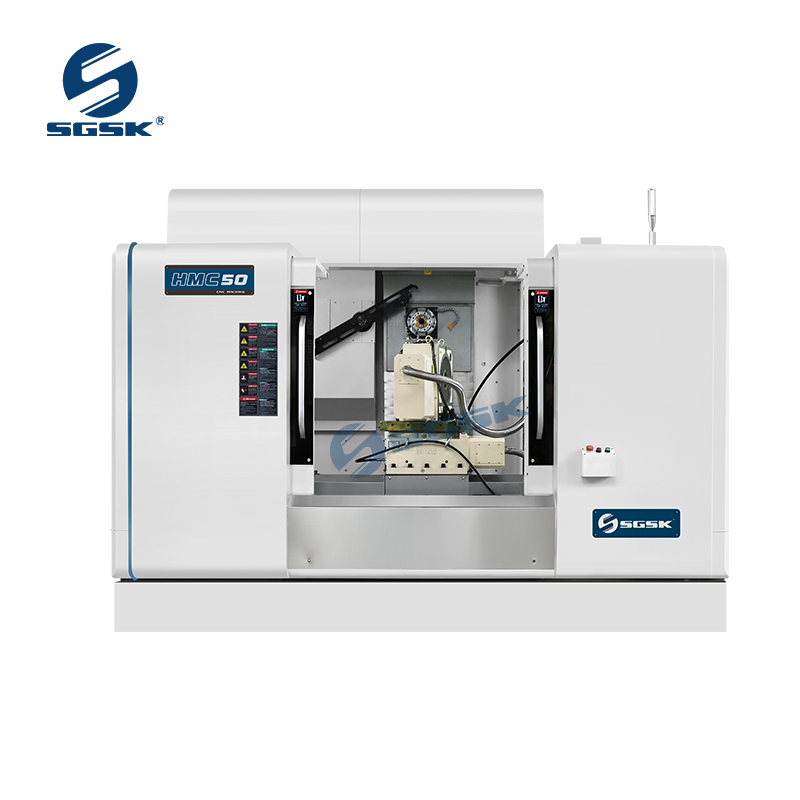

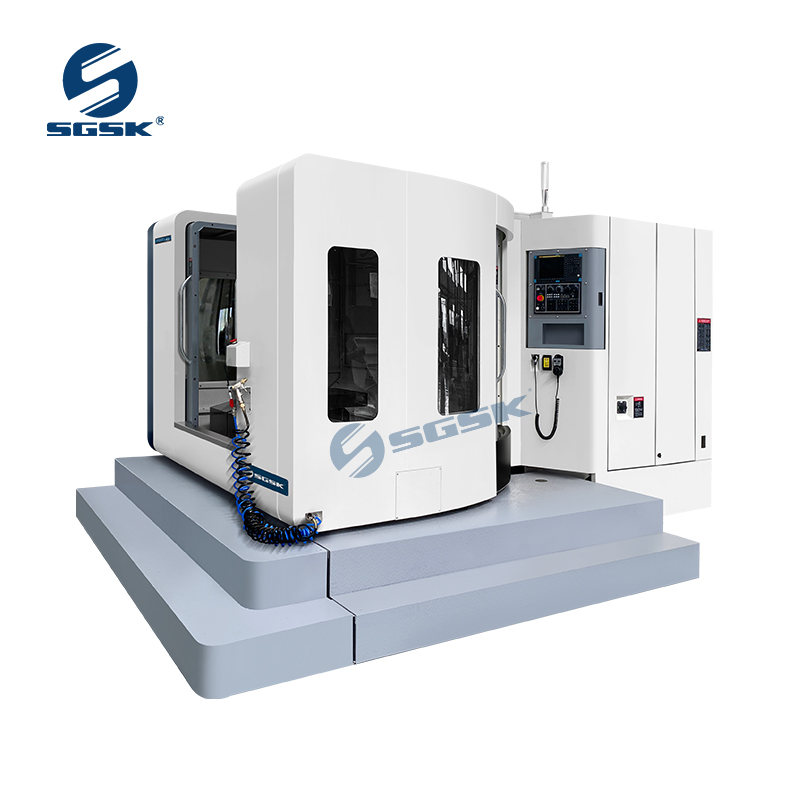

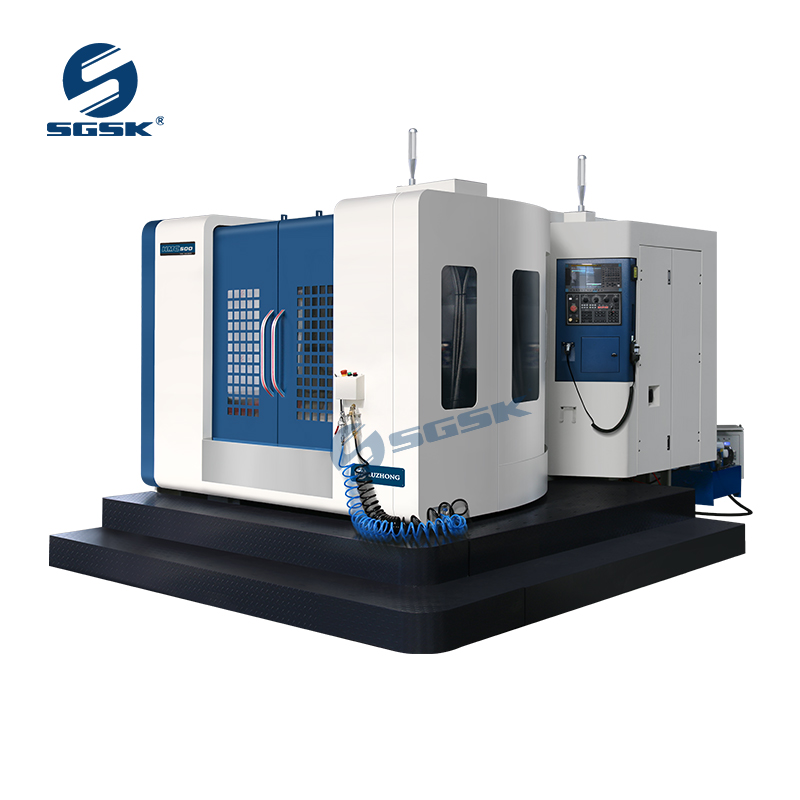

HMC500 CNC Horizontal Machining Center

Inquire Now Next Product

Product Main Technical Parameters

	Units	HMC500	HMC630	HMC800	HMC1000

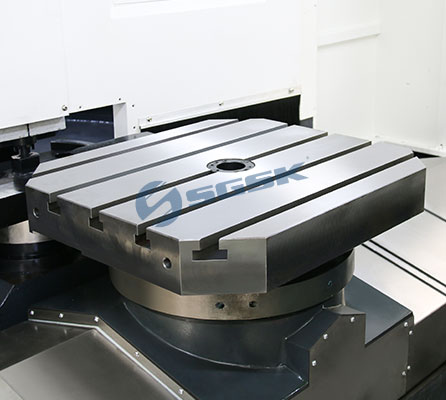

Table size	mm	500*500	630*630	800*800	1000*1000
X axis travel	mm	800	1050	1300	1600
Z axis travel	mm	600	900	1000	1000
Y axis travel	mm	600	700	1000	1000
Distance from spindle center to table surface	mm	100-750	120-870	150-1150	120- 1120
Distance between spindle nose and table center	mm	150-950	130-1030	200-1200	200- 1200
Table quantity	pcs	1	1	1	1
T slot(number-width*pitch)	mm	5-18*100	5-22*125	5-22*125	5-22*125
Max. worktable load	kg	500	800	1500	2000
Table indexing	°	1°*360	1°*360	1°*360	1°*360
Maximum speed of table	r/min	10	10	10	10
Main motor power	kw	11月15日	15/18.5	15/18.5	15/18.5
Spindle taper		BT40	BT50-190	BT50-190	BT50-190
Max. spindle speed	rpm	8000	6000	6000	6000
Cutting feed speed	mm/min	1-10000	1-10000	1-10000	1-10000
Rapid traverse speed	m/min	36/32/32	36 / 20/ 24	24 / 20/ 24	24 / 20/ 24
Tool magazine		圆盘Arm24	圆盘Arm30	圆盘Arm30	圆盘Arm30
Max. tool diameter	mm	112/200	112/200	112/200	112/200
Max. tool length	mm	400	400	400	400
Max. tool weight	kg	18	18	18	18
Tool change time (tool to tool)	sec	3	3	3	3
Machine minimum setting unit	mm	0.001	0.001	0.001	0.001
X,Y,Z axis positioning accuracy	mm	0.01	0.012	0.012	0.012
X,Y,Z axis repeat positioning accuracy	mm	0.005	0.008	0.008	0.008
B axis positioning accuracy	″	10″	10″	10″	10″
B axis repeat positioning accuracy	″	5”	5″	5″	5″
Machine weight	kg	8500	12000	17000	19000
Overall dimension(LWH)	mm	465032503000	485036003200	505038003300	530039003300
