Product Main Technical Parameters

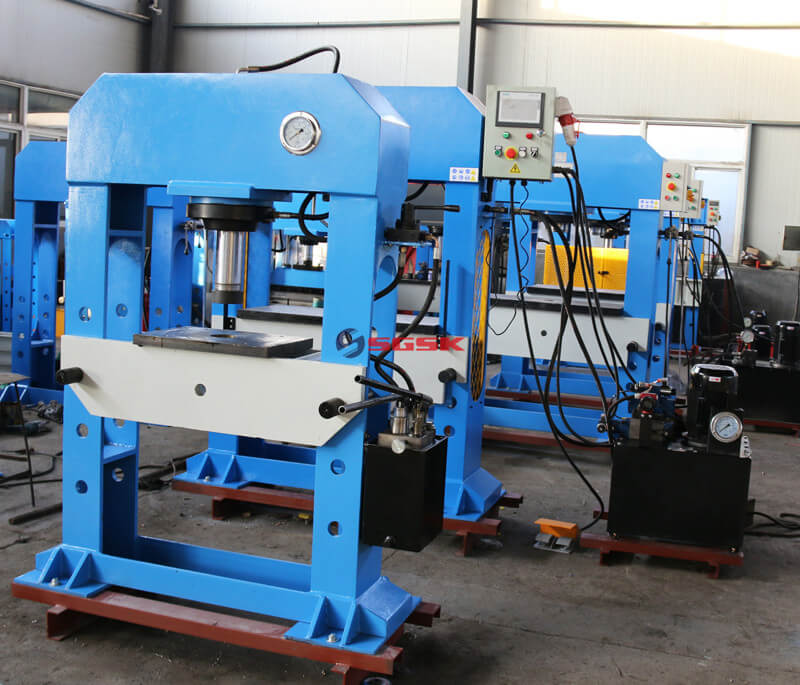

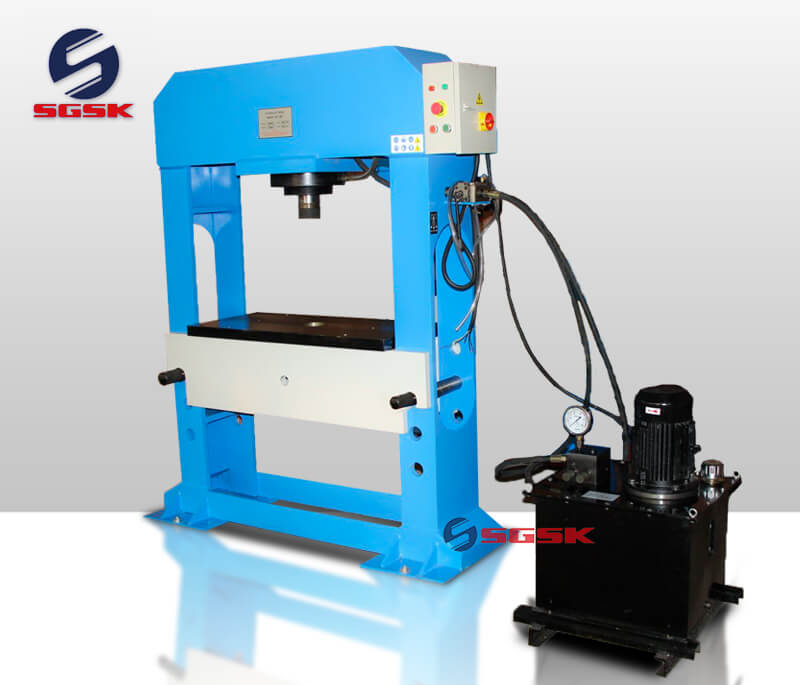

HP-100 Hydraulic Press Machine Main Performance Characteristics：
HP series hydraulic press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.

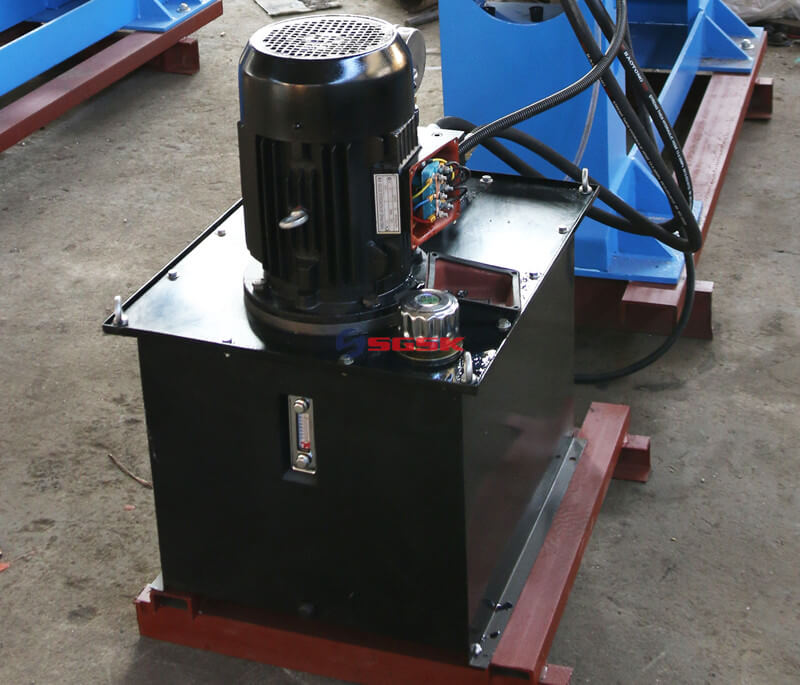

The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume,
high pressure, simple structure and light weight.
HP-100 Hydraulic Press Machine Application：
The machine is suitable for operating in the open air or the other special situation.
HP-100 Hydraulic Press Machine Main Technical Parameters:
| Specification | unit | HP-100 |
| Capacity | KN | 1000 |
| Pressure | MPA | 31.5 |
| Travel | mm | 300 |

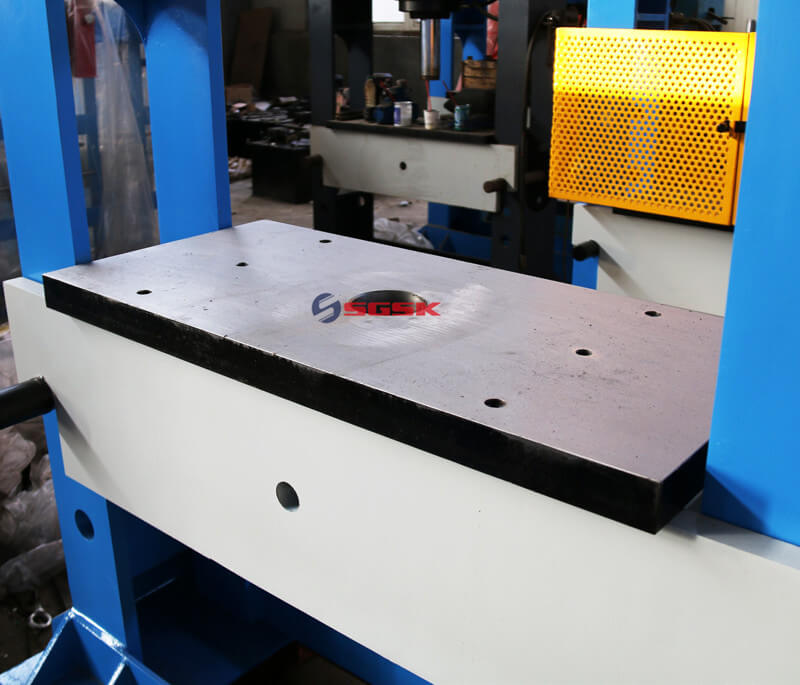

| Tale size | mm | 700x460 |
| Dimension | mm | 1730x730x2250 |
| Weight | Kg | 1220 |
| Motor Power | KW | 3 |
