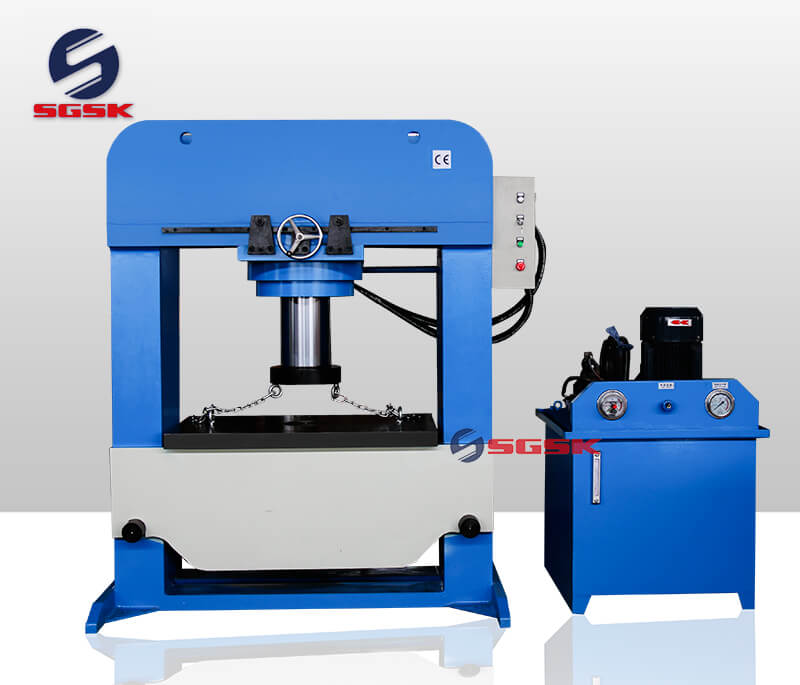

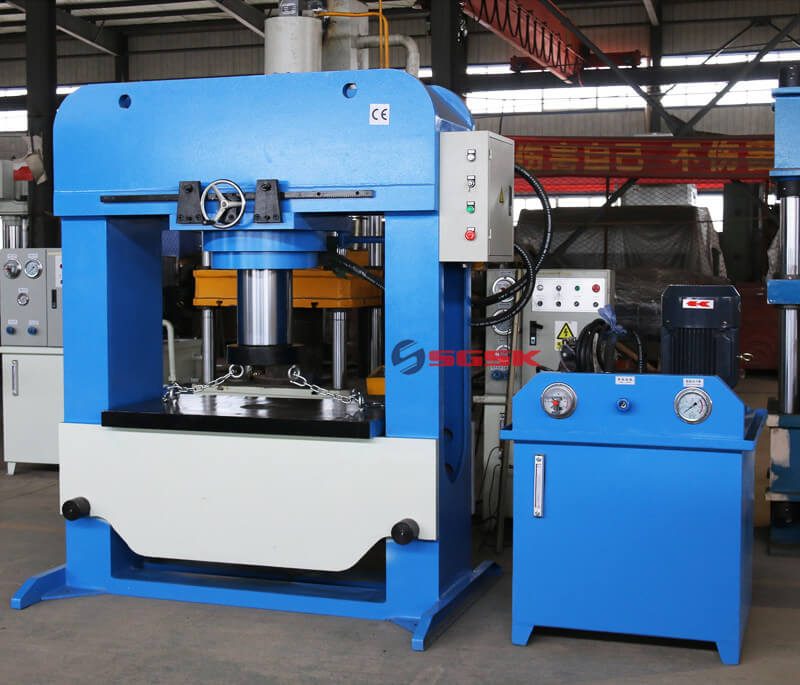

HP-100M HP-150M Movable Cylinder Hydraulic Press Machine

Inquire Now Next Product

Product Main Technical Parameters

Movable Cylinder Hydraulic Press Machine Main Performance Characteristics：

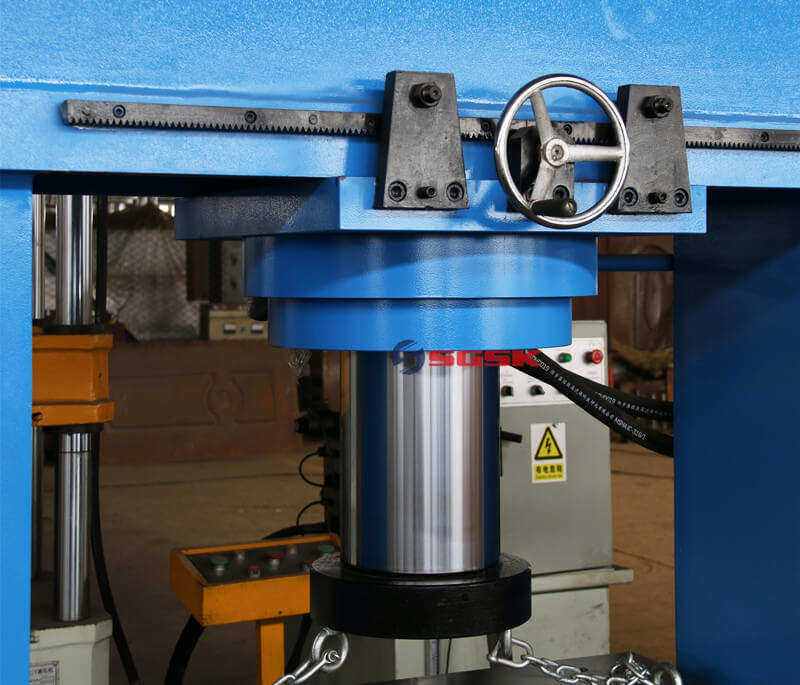

HP-M series Movable cylinder presses is improved based on traditional two-column hydraulic press machine. The hydraulic cylinder could move freely on frame, so enlarged the working space,

It takes the advantages of convenient and quick operation.

Movable Cylinder Hydraulic Press Machine Application：

The machine is suitable for operating in the open air or the other special situation.

Movable Cylinder Hydraulic Press Machine Main Technical Parameters:

Specification	unit	HP-100M	HP-150M
Capacity	KN	1000	1500
Pressure	MPA	30	30
Travel	mm	250+405	250+405
Tale size	mm	440x980	440x980
Dimension	mm	1730x730x2250	1730x730x2250
		730x630x960	730x630x960
Weight	Kg	1220	1350
