Product Main Technical Parameters

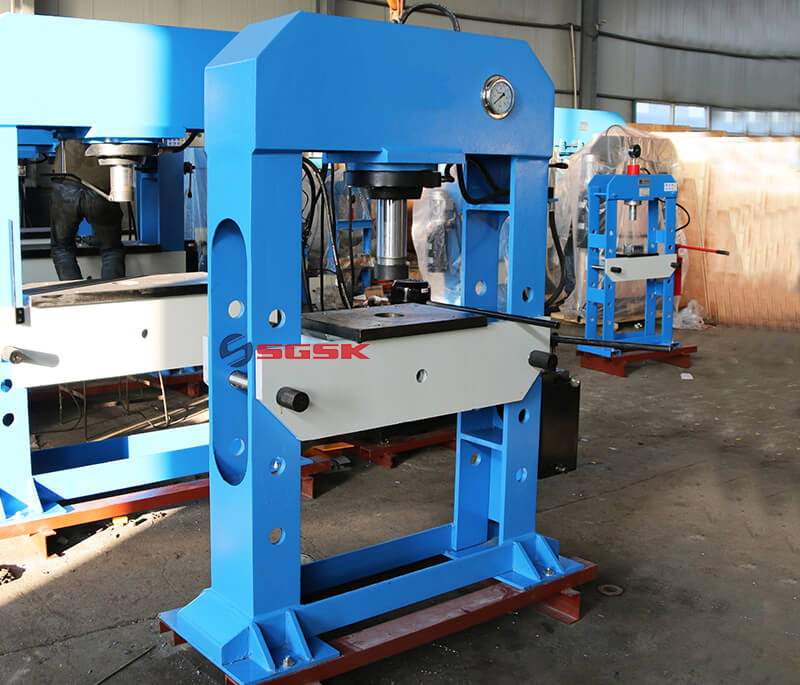

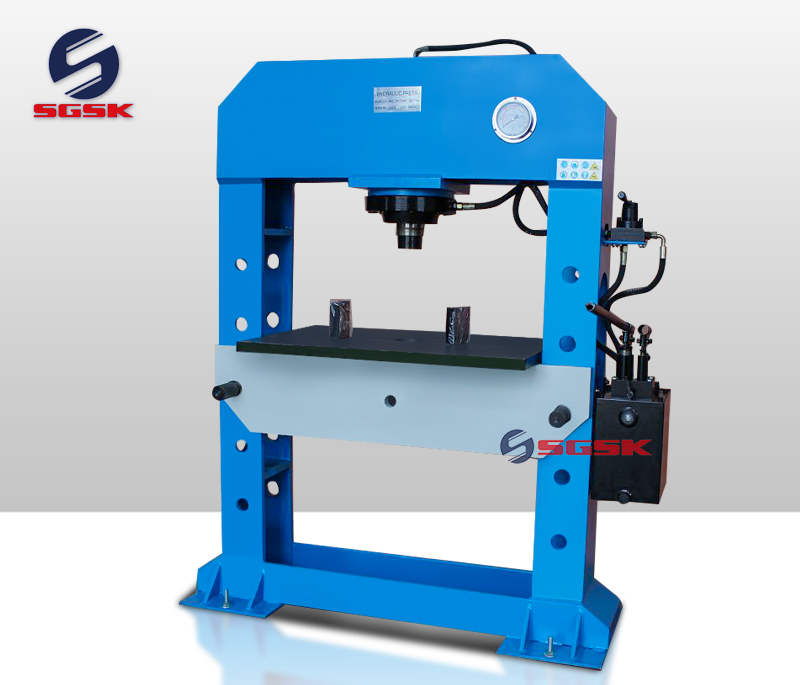

Manual Hydraulic Press Machine Main Performance Characteristics：
The HP-S series mandrel presses have the advantages of small volume ,simple structure, and little cost.

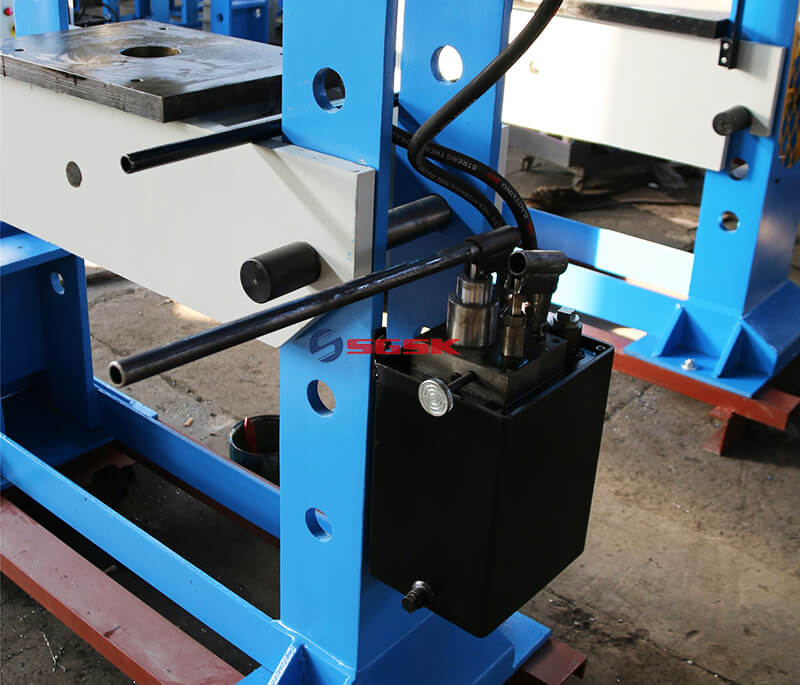

1.Manual double pump ,double speed
2.hand-operated direction valve control

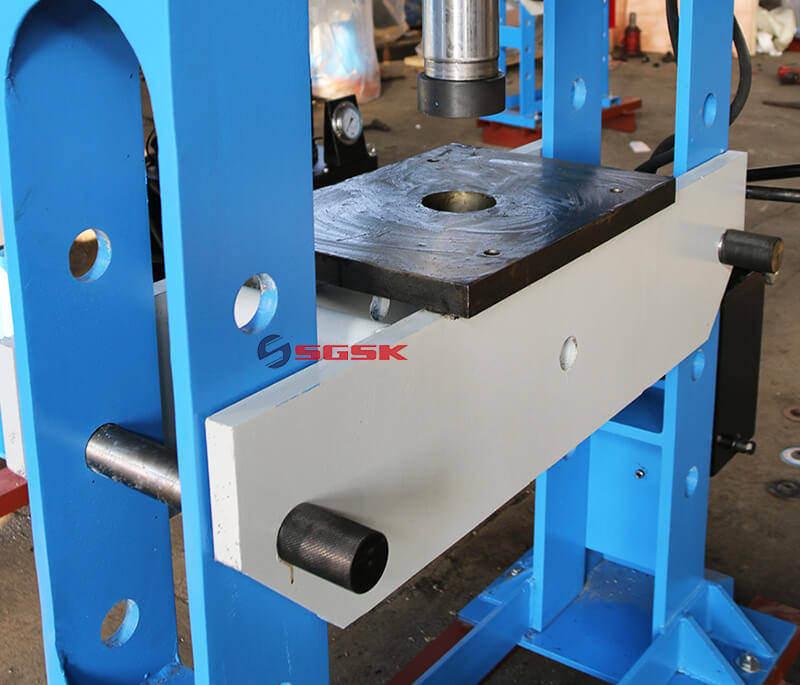

3.Chain to lift the worktable
Manual Hydraulic Press Machine Application：
The machine is suitable for operating in the open air or the other special situation.
Manual Hydraulic Press Machine Features:
1.Rigid weldment design
2. Reliable highly accurate hydraulic system
3. Pressing and clamping
4. Straightening beam, shaft and section
Manual Hydraulic Press Machine Specification:
| Model | HP-100S |
| Capacity | 1000 kN |
| Pressure | 45 mpa |
| Piston Travel / Table travel | 260 + 450 mm |
| Table size | 400x600 mm |
| N.W./G.W. | 720/820 kg |
| Dimension for body | 160x72x200 cm |
