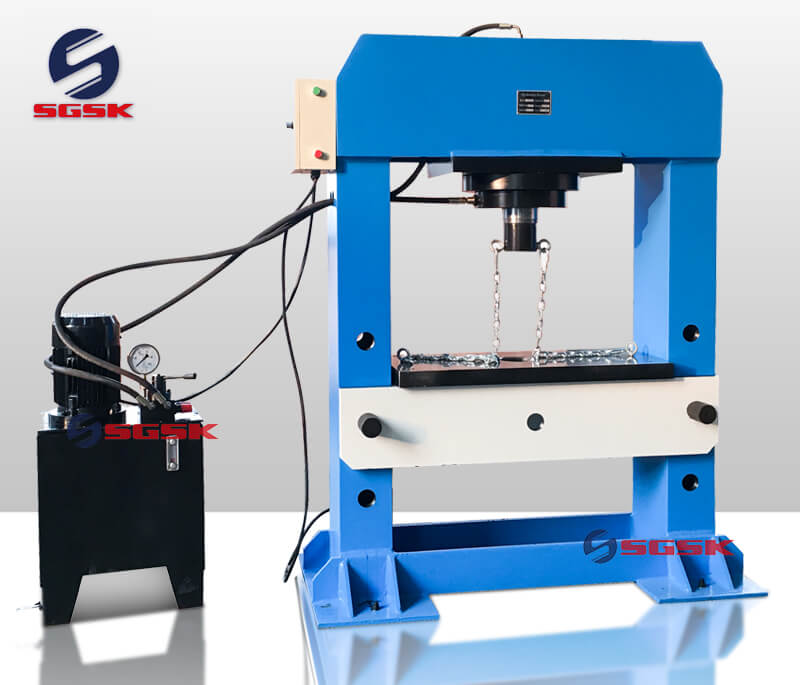

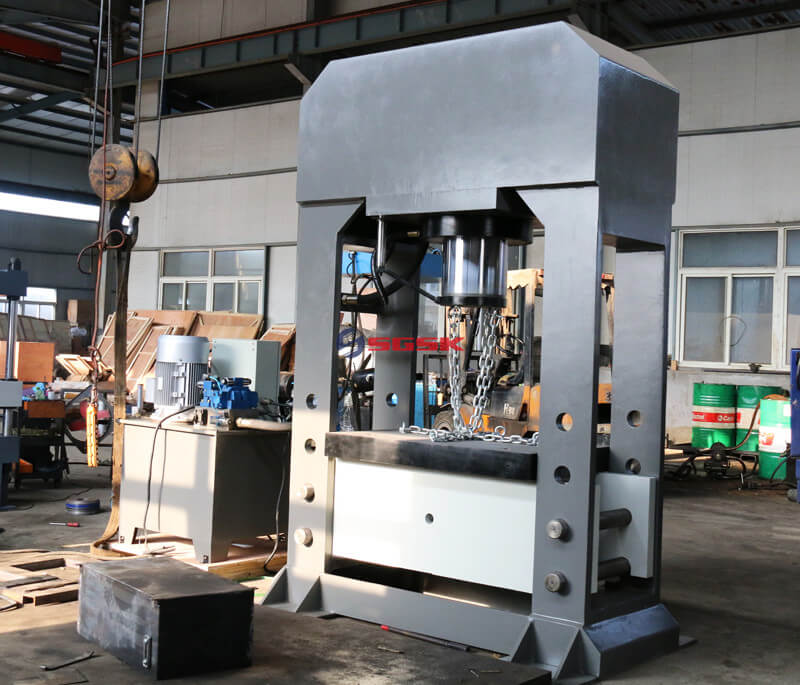

HP-400 Hydraulic Press Machine

Inquire Now Next Product

Product Main Technical Parameters

Hydraulic Press Machine Main Performance Characteristics：

HP series hydraulic press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.

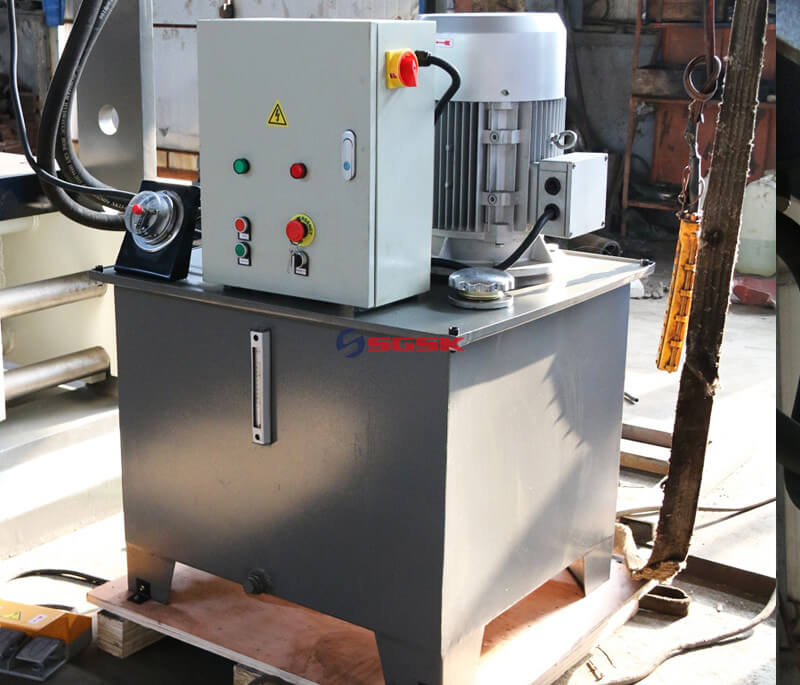

The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume,

high pressure, simple structure and light weight.

Hydraulic Press Machine Application：

The machine is suitable for operating in the open air or the other special situation.

Hydraulic Press Machine Main Technical Parameters:

Specification	unit	HP-400
Capacity	KN	4000
Pressure	MPA	31.5
Travel	mm	300+405
Tale size	mm	800x1200
Dimension	mm	2300x1000x2900
		1100x1200x1350
Weight	Kg	5500
