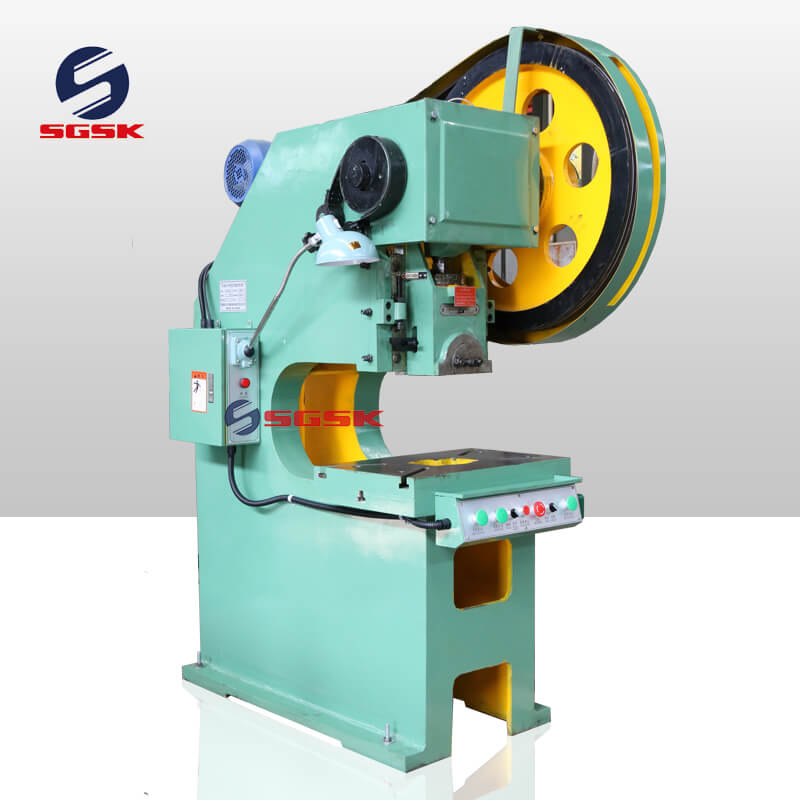

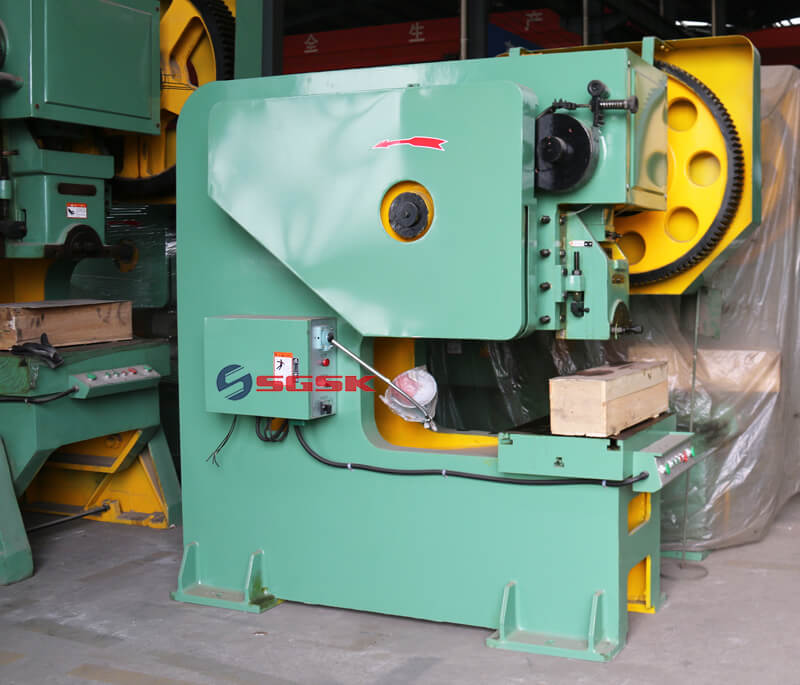

J21S-100 Deep Throat Punching Machine

Inquire Now Next Product

Product Main Technical Parameters

Deep Throat Punching Machine Main Performance Characteristics：

1.Steel plate welded body, stiffness, more stable.

2.Crankshaft longitudinal, compact structure, beautiful appearance

3.Mold height realize electric adjustment, digital display control height.

4.Slider use rectangle hexahedron extended guide, bronze lining board, high guidance accuracy.

5.Use combined type pneumatic friction clutch brake, joint stable, action sensitivity

6.Collapse type insurance, guarantee whole machine overload security.

7.Slider high lifting type balancing cylinder, realization slider connecting rod balance.

8.Slider can move, emergency stop sports, more secure operation.

9.The road use double valve control, action sensitivity, conform to press safety standards.

Deep Throat Punching Machine Application：

1.Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.

2.Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

Deep Throat Punching Machine Main Technical Parameters:

Specification		Units	J21S-100
Nominal pressure		KN	1000
Slider stroke		mm	140
Maximum die set height		mm	400
Die set height adjustment		mm	90
Distance from slider center to frame		mm	500
Worktable dimension(length x width)		mm	5500x810
Workbench plate hole size		mm	Φ200
Thickness of the worktable panel		mm	105
Size of the handle hole (diameter x depth)		mm	Φ60x85
Vertical columns distance		mm	3600
Main motor	Power	KW	7.5
Overall dimension(L x W x H)		mm	1400X780X1950
Weight		Kg	1920
