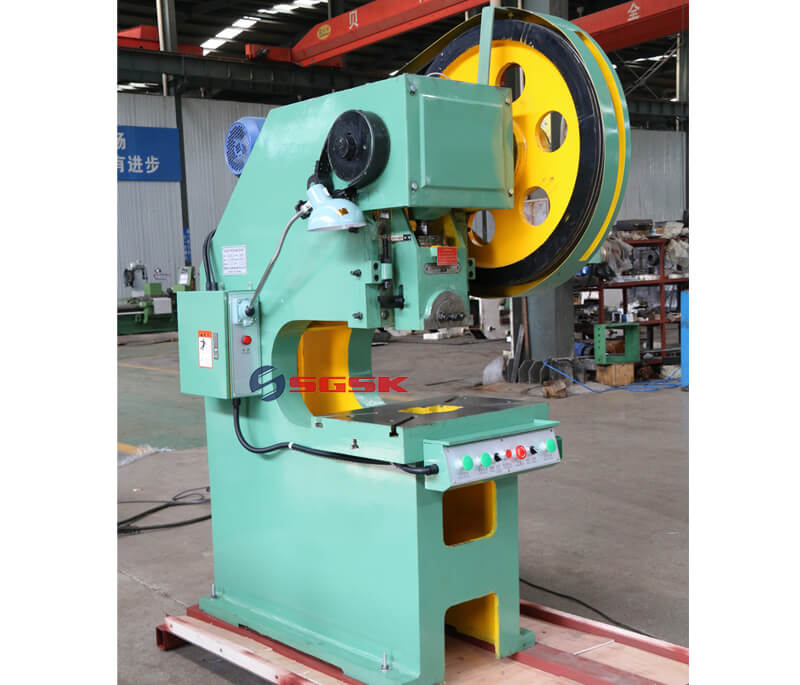

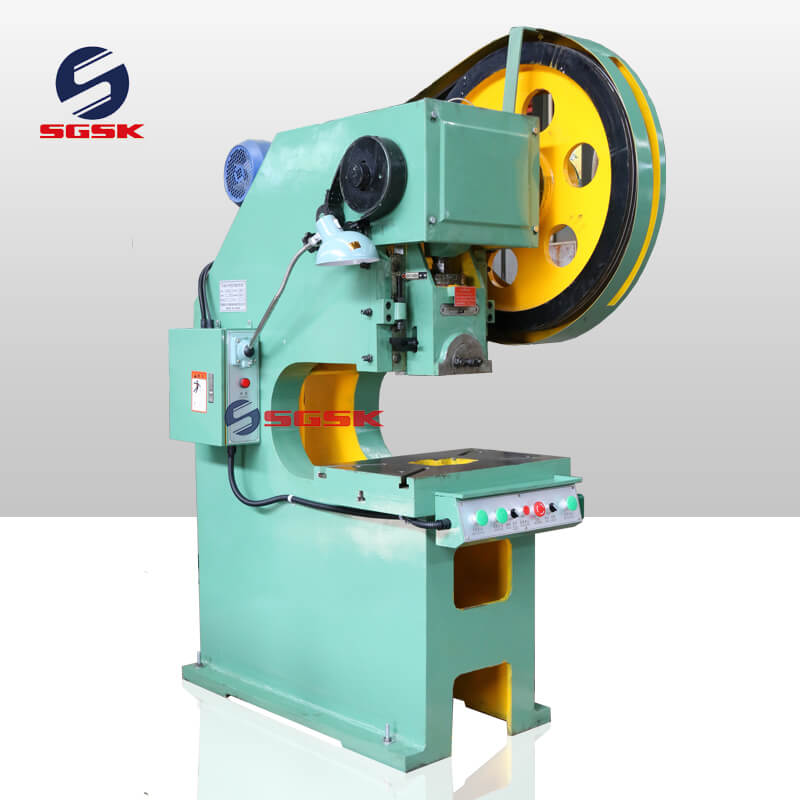

J21S-16/25/25B/40/63/63A Deep Throat Press Machine

Inquire Now Next Product

Product Main Technical Parameters

Deep Throat Press Machine Main Performance Characteristics：

Band brake,convenient adjustment

Large throat suitable for large workpiece

Simple structure ,easy maintenance and operation

Economic press

Deep Throat Press Machine Structure :

“C” frame with inclinable body ,can slide the material and scrap easily

Made of cast iron body with stable performance

Horizontal crankshaft ,easy maintenance

Rigid rotated bond clutch ,simple structure

Rigid pressing down style overload protector ,avoid damage when overload

Deep Throat Press Machine Application：

1, Suitable for blanking, punching, forming, curving ,flat stretching of punch & press function

2.widely used to electric component ,instrument and apparatus ,tools and hardware ,toy,car,machinery ,agriculture equipment

Product main technical parameters:

Specification		Units	J21S-16	J21S-25	J21S-25B	J21S-40	J21S-63	J21S-63A
Nominal pressure		KN	160	250	250	400	630	630
Nominal force stroke		mm	2	2.5	2.5	4	4	4
Slider stroke		mm	70	70	90	80	80	80
Number of slider stroke		N/min	110	65	120	50	50	50
Maximum die set height		mm	170	200	200	230	250	300
Die set height adjustment		mm	30	30	40	45	50	50
Distance from slider center to frame		mm	500	500	500	500	600	600
Worktable dimension(length x width)		mm	400x600	400x600	400x600	420x650	440x670	470x750
Working table size		mm	φ120	φ130	φ130	φ180	φ180	φ180
Thickness of the worktable panel		mm	50	50	70	70	70	80
Slider ground size (length x width)		mm	180x220	170x220	200x220	210x250	240x280	270x300
Size of the handle hole (diameter x depth)		mm	φ40x60	φ40x60	φ40x60	φ50x70	φ50x70	φ50x70
Vertical columns distance		mm	200	250	250	250	320	3900
Main motor	Model		Y100L-6	Y100L-4	Y132S-6	Y112M-4	Y132S-4	Y132S-4
Main motor	Power	KW	2.2	3	3	4	5.5	5.5
Overall dimension(L x W x H)		mm	1400X780X1950	1450X800X1950	1470X900X2100	1650X1100X2320	1750X1200X2350	1850X1180X2480
Weight		Kg	1920	2410	2600	3530	4250	4650
