Product Model：

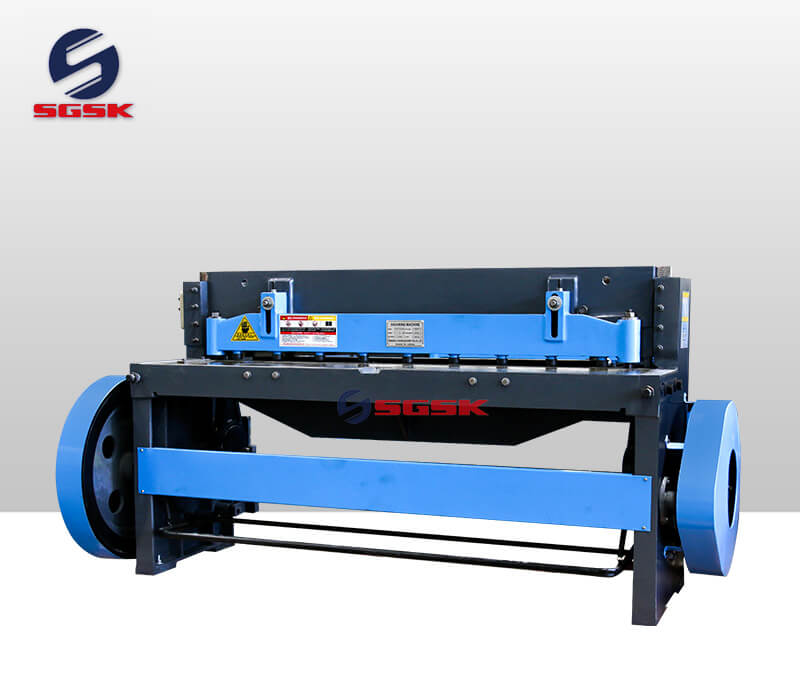

Q11-4x2000 Q11-4x2500 Electric Sheet Shearing Machine

Inquire Now Next Product

Product Main Technical Parameters

Electric Sheet Shearing Machine Specifications:

Long-life of high quality blade
Back gauge is available to give fine adjustment
Simple construction with good appearance

Electric Sheet Shearing Machine Features:

1. Structured finished products,

2. Low center of gravity,

3. Sound vibration-proof performance

4. Stable property.

5. Long-life of high quality blade

6. Back gauge is available to give fine adjustment

7. Simple construction with good appearance

8. Easy to operate with lower energy consumption

9. Widely used for medium and thick steel

10. Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.

11. Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.

Electric Sheet Shearing Machine Main Technical Specifications:

Specifications	Units	Q11-4x2000	Q11-4x2500
Max.shearing thickness	mm	4.0	4.0
Max.shearing width	mm	2000	2500
Shearing angle	°	2°	2°
Travel times	Mm-1	20	20
Main motor power	kw	5.5	5.5
Back gauge stroke	mm	500	500
Over dimensions	mm	3180x1770x1550	3700x1510x1490
Machine weight	kg	3000/3200	3600/3850
