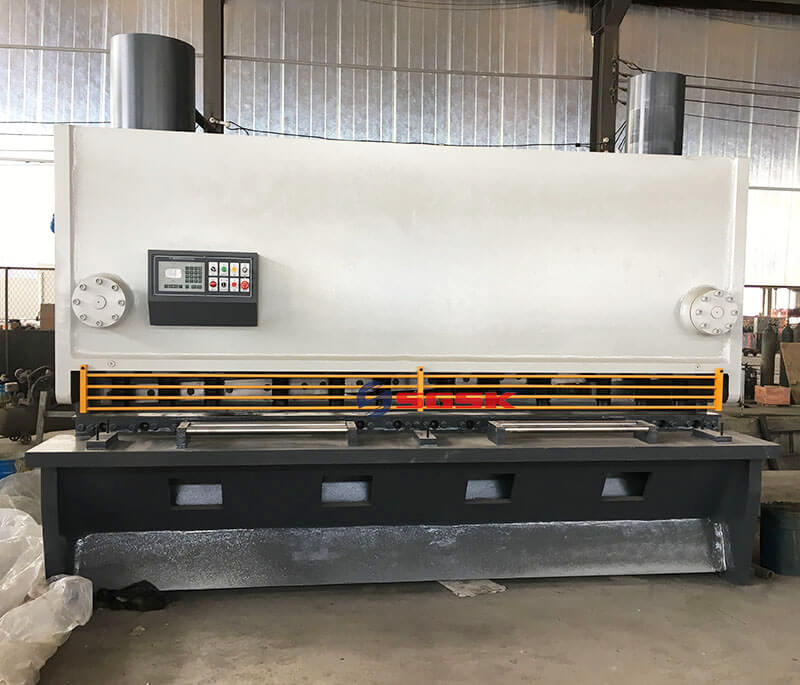

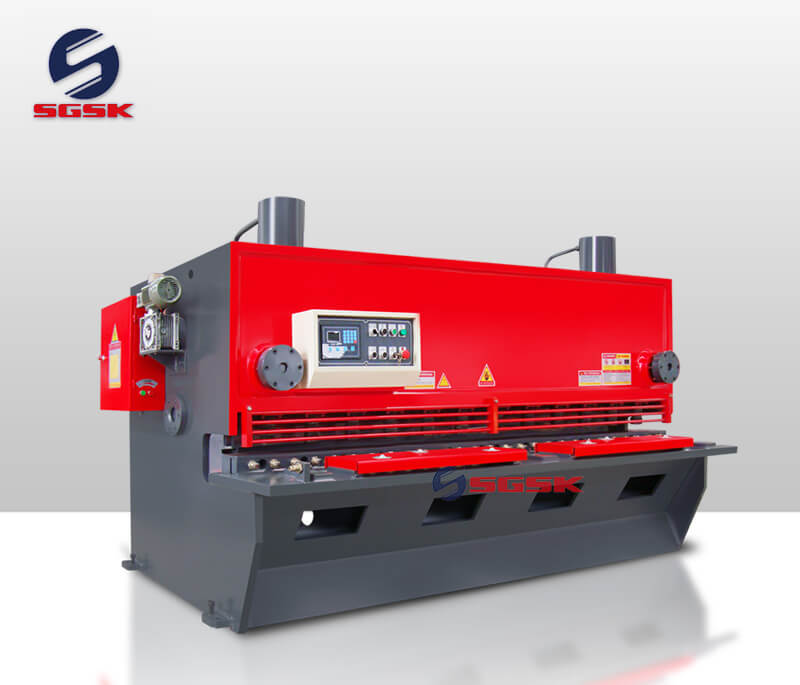

QC11Y Hydraulic Guillotine Shearing Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications	Max.shearing thickness	Max.shearing width	Shearing angle	Material hardness	Distance between columns	Travel times	Table Height	blade length	Main motor power	Back gauge stroke	gear pump	Wall thickness	Over dimensions	Machine weight
Unit	mm	mm	°	KN/cm	mm	Mm-1	mm	mm	kw	mm		mm	mm	t
4x1600	4	1600	0.5-1°30'	450	16500	28	750	1700	4	20-500	NB3-G10	20	2130x1100x1300	1.7
4x2500	4	2500	0.5-1°30'	450	2600	12	750	2600	5.5	20-500	NB3-G10	20	3520x1560x1670	2.9
6x1600	6	1600	0.5-1°50'	450	1700	18	800	1700	5.5	20-500	NB3-G10	25	2160x1400x1600	2.8
6x2000	4	2000	0.5-1°50'	450	2100	18	800	2100	7.5	20-500	NB4-G25	25	2560x1400x1600	3.4
6X2500	6	2500	0.5-1°50'	450	2600	18	800	2600	7.5	20-500	NB4-G25	25	3500x1600x1610	4.6
6X3200	6	3200	0.5-1°50'	450	3300	16	800	3300	7.5	20-500	NB4-G25	30	4100x1700x1680	5.4
6X4000	6	4000	0.5-1°30'	450	4100	15	820	4100	7.5	20-500	NB4-G25	30	5300x1800x1880	6.45
6X6000	6	6000	0.5-1°30'	450	6280	8	820	6100	11	20-600	NB4-G25	50	6500x2200x2200	14.5
8X2500	8	2500	0.5-1°30'	450	2720	18	800	2600	7.5	20-600	NB4-G25	30	3620x1900x1900	5.2
8X3200	8	3200	0.5-1°30'	450	3420	14	800	3300	7.5	20-600	NB4-G25	35	4300x1900x1900	6
8X4000	8	4000	0.5-1°30'	450	4240	12	800	4100	11	20-600	NB4-G25	35	5150x2000x2000	7.5
8X6000	8	6000	0.5-1°30'	450	6350	6	820	6150	15	20-600	NB5-G40	50	7200x2200x2020	18
10X2500	10	2500	0.5-2°	450	2720	15	800	2600	11	20-600	NB5-G32	35	3500x1900x1900	6.2
10X3200	10	3200	0.5-2°	450	3420	14	800	3300	11	20-600	NB5-G32	35	4300x1900x1900	7.4
10X4000	10	4000	0.5-2°	450	4260	12	820	4100	15	20-600	NB5-G32	40	5030x1900x2000	8.5
10X6000	10	6000	0.5-2°	450	6350	6	820	6100	18.5	20-800	NB5-G40	50	7100x2200x2300	22
12X1600	12	1600	0.5-2°	450	1665	22	800	1700	11	20-600	NB5-G32	30	2380x1420x1810	5.5
12X2500	12	2500	0.5-2°	450	2760	15	820	2600	15	20-600	NB5-G50	40	3680x2100x2100	7.5
12X3200	12	3200	0.5-2°	450	3480	14	820	3300	15	20-600	NB5-G40	40	4100x2100x2100	9.8
12X4000	12	4000	0.5-2°30'	450	4290	12	820	4100	15	20-600	NB5-G40	40	5120x2100x2100	11.5
12X6000	12	6000	0.5-2°40'	450	6250	8	820	6100	18.5	20-800	NB5-G50	60	7250x2300x2320	24
16X2500	16	2500	0.5-2°30'	450	2860	14	820	2600	18.5	20-800	NB5-G50	50	3360x2200x2100	9
16X3200	16	3200	0.5-2°30'	450	3480	12	820	3300	18.5	20-800	NB5-G50	50	4160x2200x2100	11.5
16X4000	16	4000	0.5-2°30'	450	4280	10	820	4100	18.5	20-800	NB5-G50	50	5080x2200x2100	13.8
16X6000	16	7000	0.5-3°	450	6270	5	820	6100	22	20-800	NB5-G50	70	7300x2700x2500	32
20X2500	20	2500	0.5-3°	450	2830	12	820	2600	30	20-800	NB5-G63	60	3970x2200x2200	11
20X3200	20	3200	0.5-3°	450	3500	10	820	3300	30	20-800	NB5-G63	60	4350x2350x2300	16
20X4000	20	4000	0.5-3°	450	4300	8	820	4100	30	20-800	NB5-G63	60	5180x2400x2400	21
20X6000	20	6000	0.5-4°	450	6500	6	820	6100	30	20-800	NB5-G63	70	7400x3000x3000	47
25X2500	25	2500	0.5-3°30'	450	2820	8	820	2600	30	20-800	NB5-G80	70	3600x2400x2300	17
