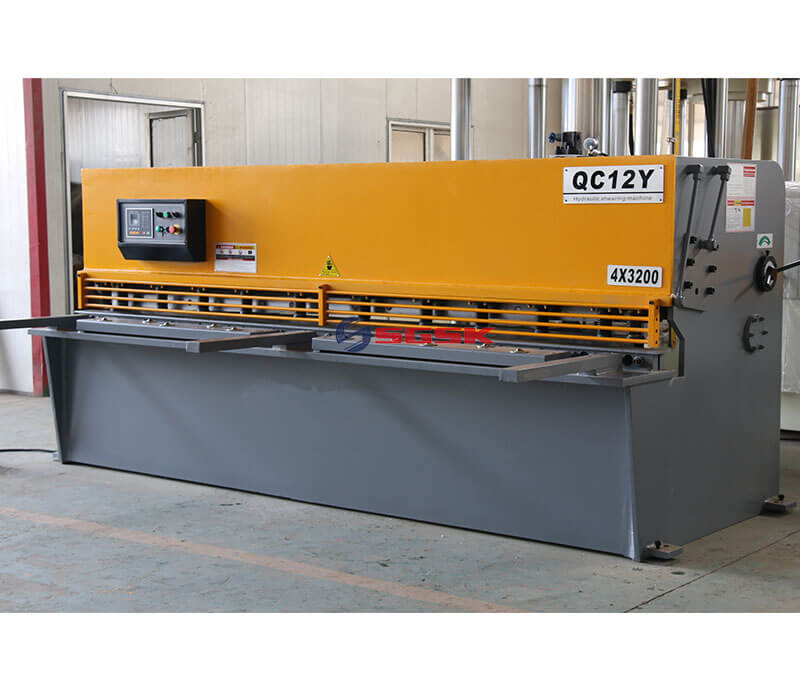

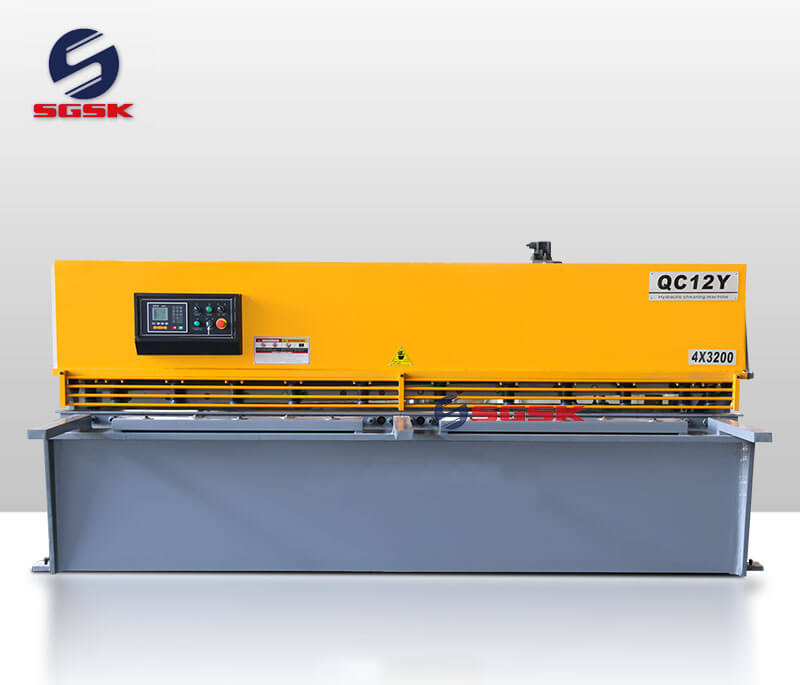

QC12Y Hydraulic Swing Beam Shear Machine

Inquire Now Next Product

Product Main Technical Parameters

QC12Y Hydraulic Swing Beam Shear Machine Main Performance Characteristics：

1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .

2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .

3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .

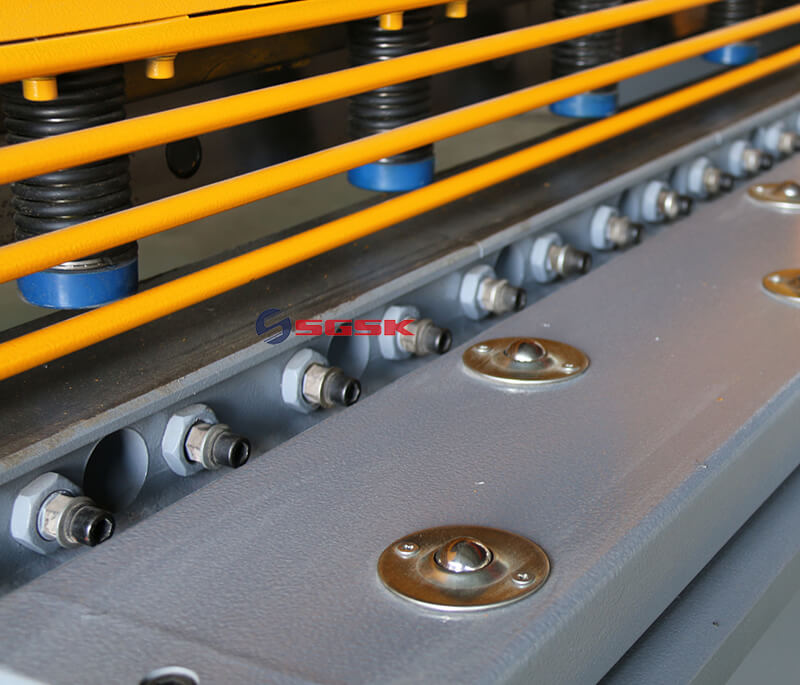

4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.

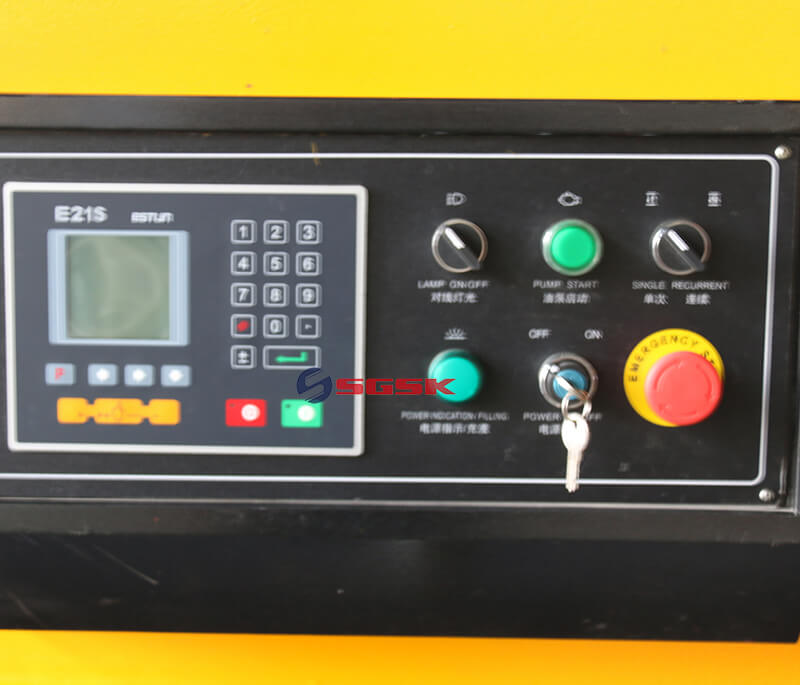

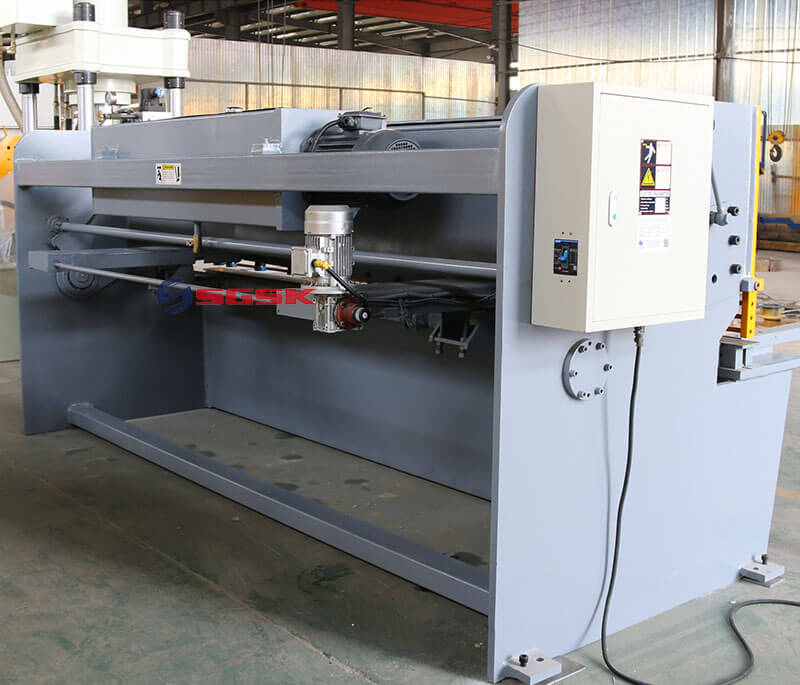

5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

QC12Y Hydraulic Swing Beam Shear Machine Application：

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

QC12Y Hydraulic Swing Beam Shear Machine Main Technical Parameters:

Specifications	Max.shearing thickness	Max.shearing width	Shearing angle	Material hardness	Distance between columns	Travel times	Table Height	blade length	Main motor power	Back gauge stroke	gear pump	Wall thickness	Over dimensions	Machine weight
Unit	mm	mm	°	KN/cm	mm	Mm-1	mm	mm	kw	mm		mm	mm	t
4X2500	4	2500	1°30’	450	2700	18	750	2600	5.5	20-500	NB3-G10	20	3120X1450X1550	2.93
4X3200	4	3200	1°30’	450	3410	12	800	3300	5.5	20-500	NB3-G10	25	3520X1560X1670	4.2
4X4000	4	4000	1°30’	450	4210	12	800	4100	5.5	20-500	NB3-G10	25	4340X1620X1660	5.85
4X6000	4	6000	1°30’	450	6270	8	800	6150	7.5	20-800	NB4-G25	40	6460X2100X3100	13
6X2500	6	2500	1°30’	450	2720	18	800	2610	7.5	20-550	NB4-G25	25	3000X1600X1610	4.04
6X3200	6	3200	1°30’	450	3420	15	800	3310	7.5	20-550	NB4-G25	30	3840X1700X1680	5.4
6X4000	6	4000	1°30’	450	4220	15	820	4100	7.5	20-550	NB4-G25	30	4300X1610X1680	6.45
6X6000	6	6000	1°30’	450	6280	8	820	6150	11	20-800	NB4-G25	50	6500X2200X2200	14.5
8X2500	8	2500	1°30’	450	2720	18	800	2600	7.5	20-550	NB4-G25	30	3120X1700X1650	4.925
8X3200	8	3200	1°30’	450	3420	12	800	3310	7.5	20-550	NB4-G25	35	3840X1700X1680	5.755
8X4000	8	4000	1°30’	450	4240	8	800	4110	11	20-500	NB4-G25	35	4750X1750X1850	7.6
8X6000	8	6000	1°30’	450	6350	6	820	6150	15	20-800	NB5-G40	50	6530X2200X2020	18
10X2500	10	2500	1°30’	450	2720	10	800	2610	12	20-500	NB5-G32	35	3150X1850X1900	6
10X3200	10	3200	1°30’	450	3420	8	800	3310	12	20-500	NB5-G32	35	3900X1800X1700	6.8
10X4000	10	4000	1°30’	450	4260	8	820	4100	15	20-500	NB5-G32	40	4730X2200X2100	8.5
10X6000	10	6000	1°30’	450	6350	6	820	6100	18.5	20-800	NB5-G40	50	6800X2200X2300	22
10X7000	10	7000	1°30’	450	7365	5	820	7175	18.5	20-800	NB5-G32	60	7750X2620X2320	31
