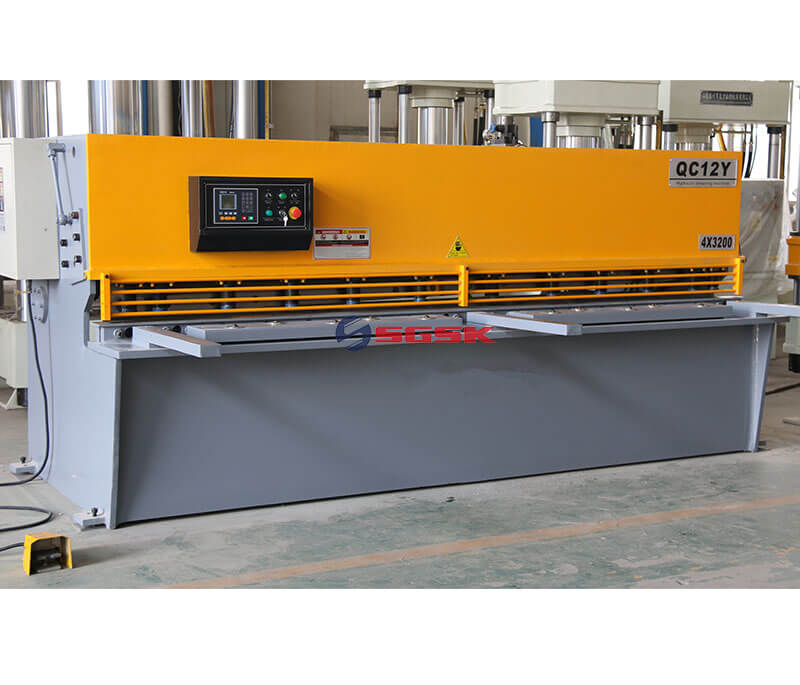

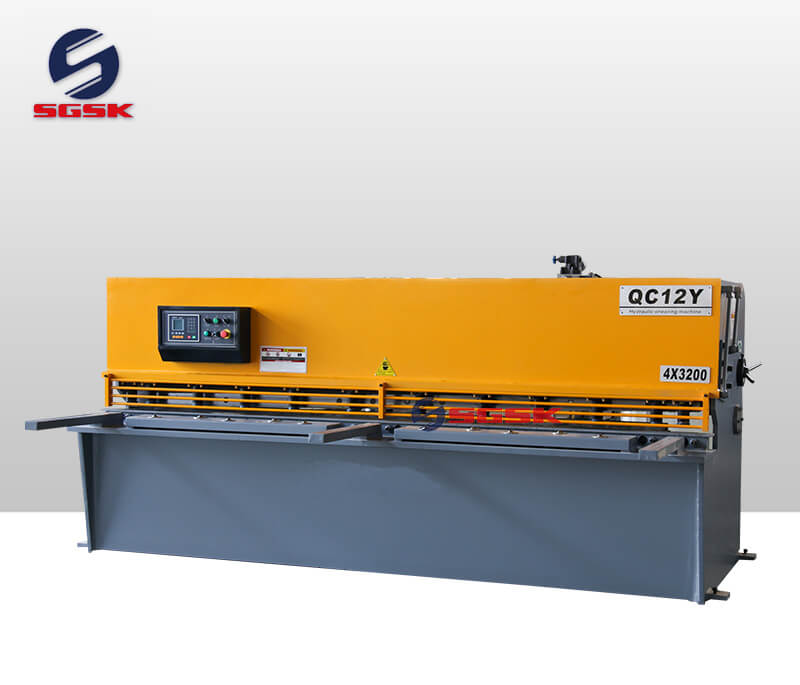

QC12Y Hydraulic Swing Shear Machine

Inquire Now Next Product

Product Main Technical Parameters

QC12Y Hydraulic Swing Shear Machine Main Performance Characteristics：

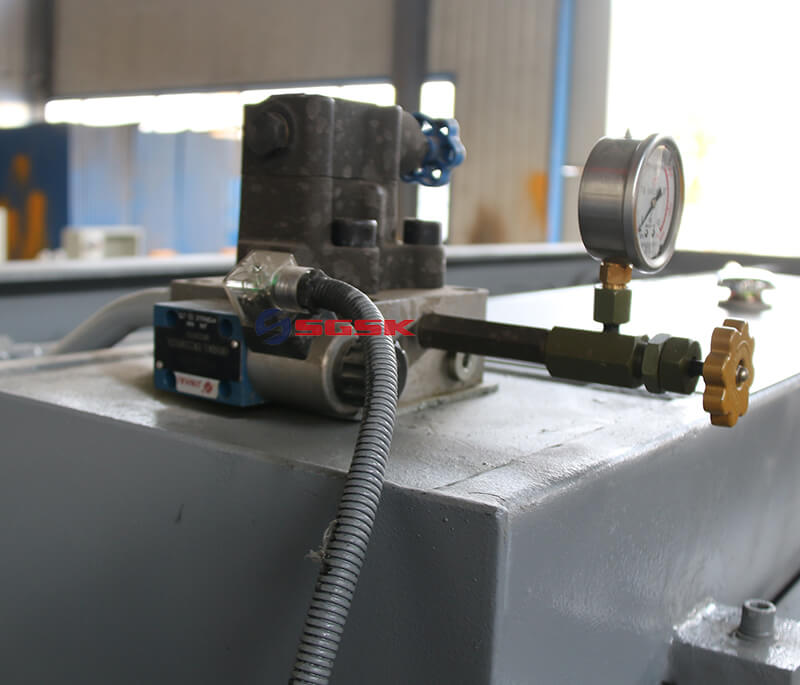

1 Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .

2 Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .

3 Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .

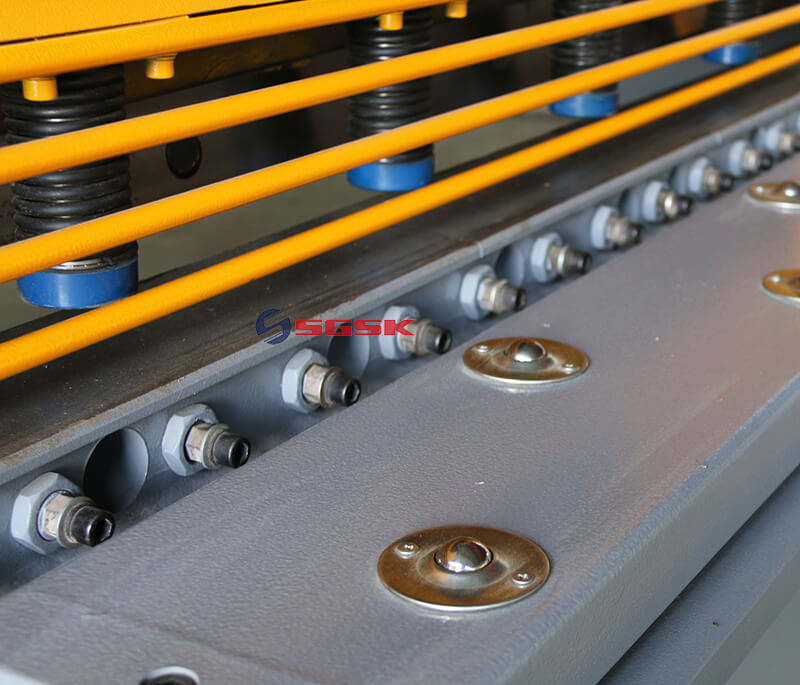

4 Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.

5The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

QC12Y Hydraulic Swing Shear Machine Application：

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

QC12Y Hydraulic Swing Shear Machine Main Technical Parameters:

Specifications	Max.shearing thickness	Max.shearing width	Shearing angle	Material hardness	Distance between columns	Travel times	Table Height	blade length	Main motor power	Back gauge stroke	gear pump	Wall thickness	Over dimensions	Machine weight
Unit	mm	mm	°	KN/cm	mm	Mm-1	mm	mm	kw	mm		mm	mm	t
12X2500	12	2500	2°	450	2860	10	820	2610	15	20-800	NB5-G50	40	3380X1900X1900	7.5
12X3200	12	3200	2°	450	3480	10	820	3300	15	20-800	NB5-G40	40	3900X2100X1960	9.8
12X4000	12	4000	1°40’	450	1290	8	820	4100	15	20-800	NB5-G40	40	4720X2100X2020	11.5
12X6000	12	6000	1°40’	450	6250	8	820	6060	18.5	20-1000	NB5-G50	60	6850X2500X2320	24
16X2500	16	2500	2°	450	2860	8	820	2600	18.5	20-800	NB5-G50	50	3360X2100X2000	9
16X3200	16	3200	2°30’	450	3480	8	820	3300	18.5	20-800	NB5-G50	50	3960X2100X2050	11.5
16X4000	16	4000	2°30’	450	4280	7	820	4100	18.5	20-800	NB5-G50	50	4780X2200X2100	14.3
16X6000	16	7000	2°	450	6270	5	820	6060	22	20-1000	NB5-G50	70	6900X2700X2500	32
20X2500	20	2500	3°	450	2830	6	820	2600	30	20-800	NB5-G63	60	3570X2200X2200	12
20X3200	20	3200	2°30’	450	3500	6	820	3300	30	20-800	NB5-G63	60	4150X2350X2300	16
20X4000	20	4000	2°30’	450	4300	5	820	4100	30	20-800	NB5-G63	60	4980X2400X2400	21
20X6000	20	6000	3°	450	6270	4	820	6070	30	20-1000	NB5-G63	70	6900X3000X3000	47
25X2500	25	2500	3°	450	2820	5	820	2600	30	20-1000	NB5-G80	70	3400X2400X2300	17
