Product Main Technical Parameters

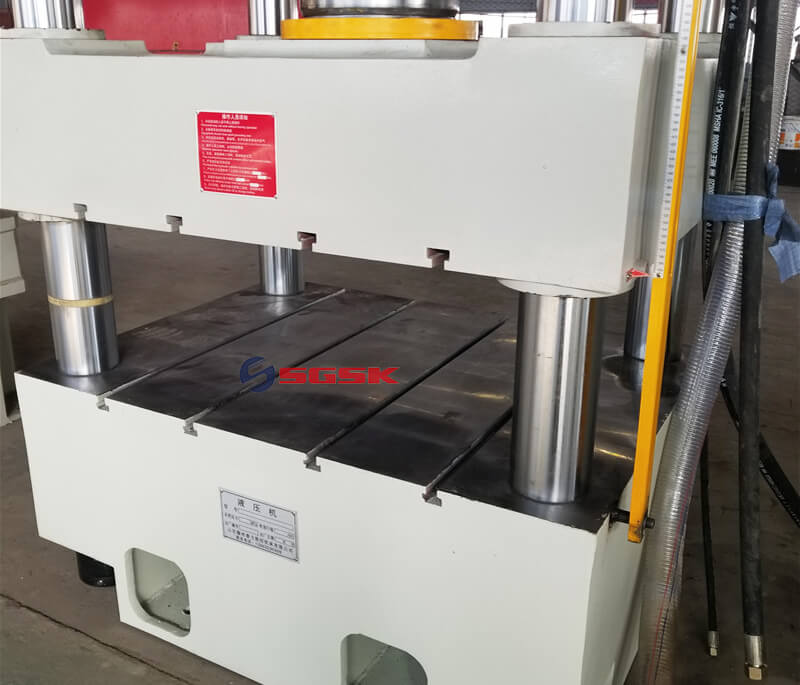

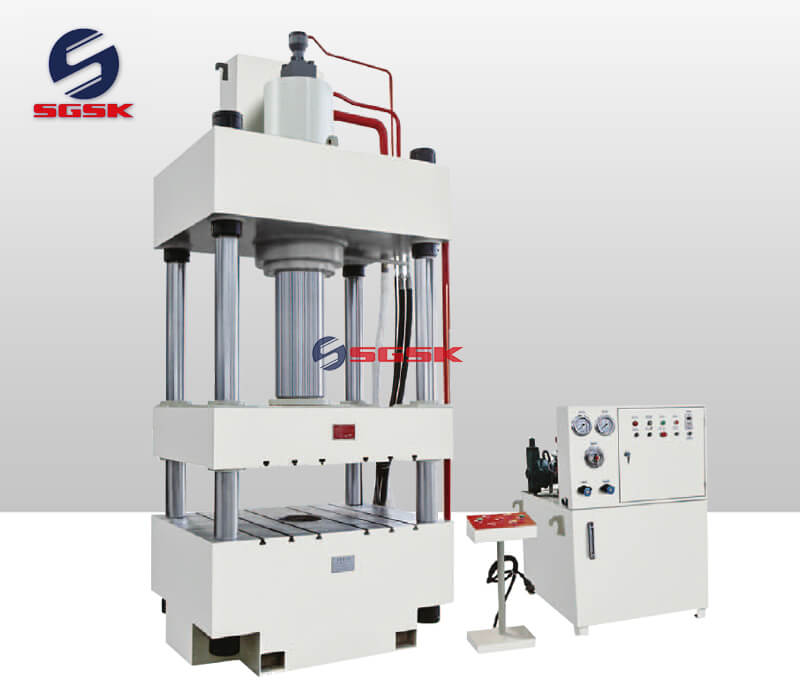

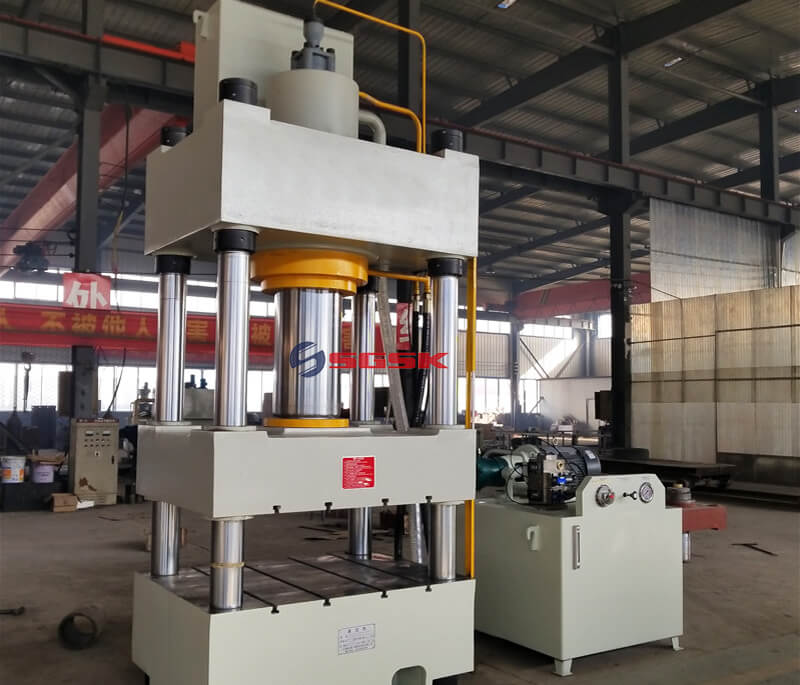

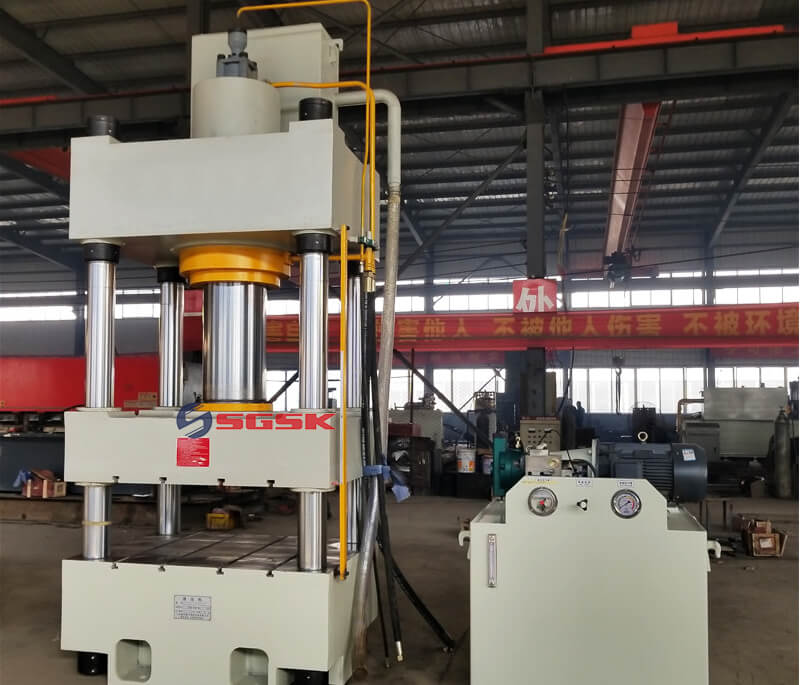

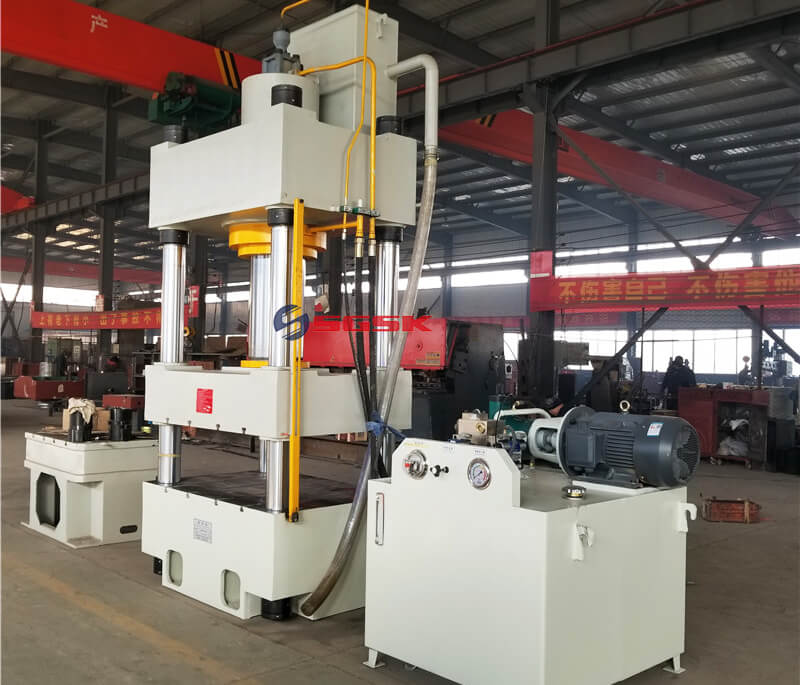

Four Column Hydraulic Press Machine Main Performance Characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.
Four Column Hydraulic Press Machine Main Technical Specifications:
| Specifications | YQ32-315TA | YQ32-315TB | YQ32-315TC | YQ32-315TD |
| Nominal pressure (KN) | 3150 | 3150 | 3150 | 3150 |
| Max.hydraulic pressure(Mpa) | 25 | 25 | 25 | 25 |
| Oil cylinder travel(mm) | 500 | 500 | 600 | 700 |
| Max.opening(mm) | 900 | 1000 | 1100 | 1200 |
| Diameter of oil cylinder(mm) | Ø400 | Ø400 | Ø400 | Ø400 |
| Diameter of piston(mm) | Ø370 | Ø370 | Ø370 | Ø370 |
| Diameter of column(mm) | Ø110 | Ø140 | Ø140 | Ø140 |
| Table size(mm) | 800X800 | 1000X1000 | 1260X1160 | 1260X1160 |
| Machine Height | 3500 | 3800 | 4200 | 4400 |
| Fast down speed (mm/s) | 75 | 100 | 105 | 105 |
| Pressing speed (mm/s) | 6-12 | 6-12 | 6-12 | 6-12 |
| Return speed(mm/s) | 83 | 83 | 83 | 83 |
| Oil pump(YCY14-1B) | 63 | 63 | 63 | 63 |
| motor power(kw) | 15 | 15 | 15 | 15 |
| Return force(KN) | 630 | 630 | 630 | 630 |
| Ejecting stroke(mm) | 200 | 300 | 300 | 300 |
| Weight (kg) | 5900 | 8000 | 10500 | 10700 |
