Product Main Technical Parameters

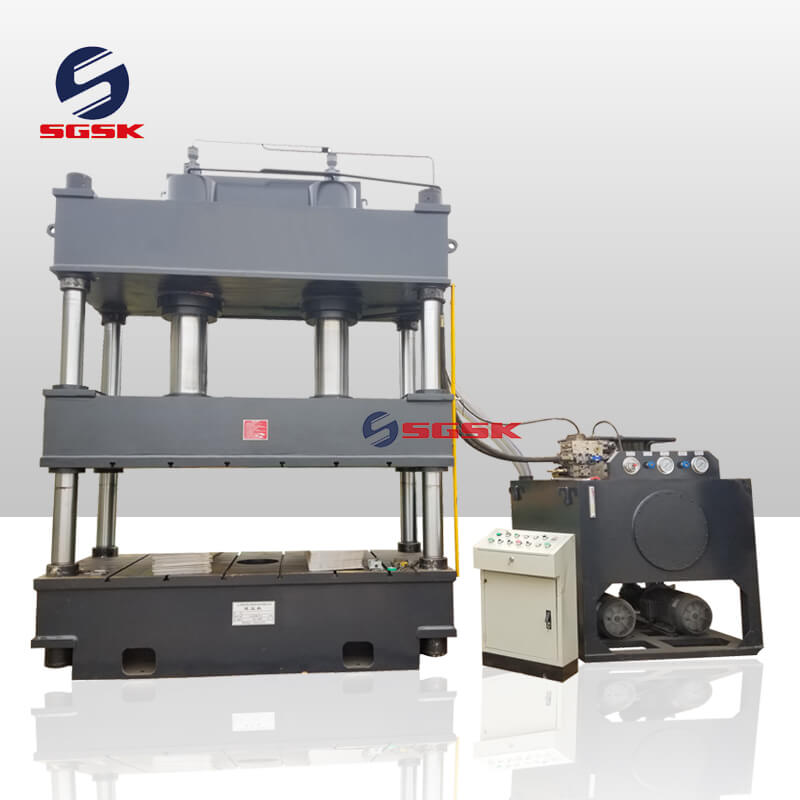

Four Column Hydraulic Press Machine Main Performance Characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.
Four Column Hydraulic Press Machine Main Technical Specifications:
| Specifications | YQ32-500 |
| Nominal pressure (KN) | 5000 |
| Max.hydraulic pressure(Mpa) | 25 |
| Return force(KN) | 680 |
| Down speed (mm/s) | 150 |
| Pressing speed (mm/s) | 5-15 |
| Return speed(mm/s) | 95 |
| Return force(Kn) | 1000 |
| Ejecting stroke(mm) | 300 |
| Ejecting speed(mm/s) | 45 |
| Ejecting return speed(mm/s) | 100 |
| Table left-right between columns(mm) | 1400 |
| Table front-behind edge(mm) | 1400 |
| Main motor power(kw) | 15x2 |
| Oil pump | YCY-63X2 |
| Packing size(mm) | 1800x1600x1500 |
| Weight(T) | 18 |
