Product Main Technical Parameters

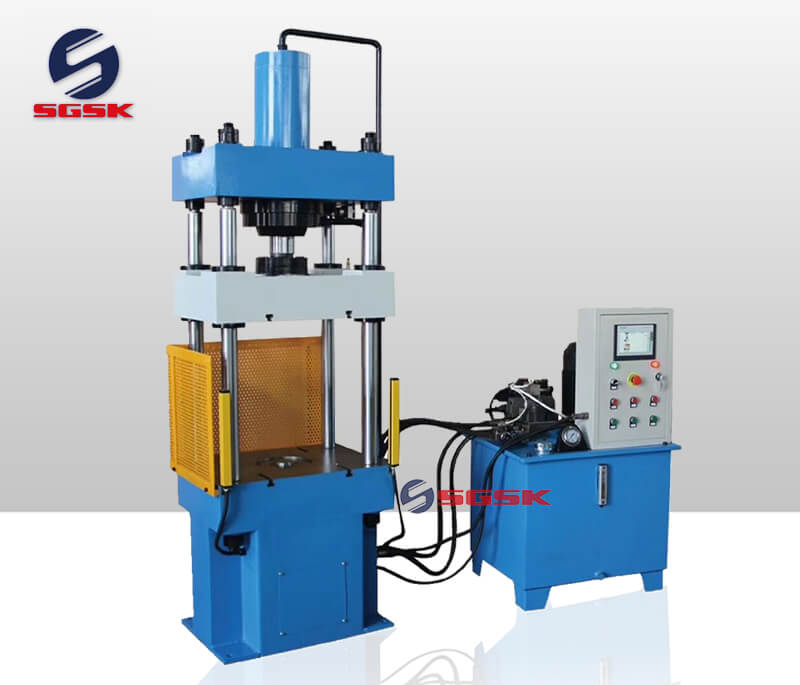

Four Column Hydraulic Press Machine Main Performance Characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.
Four Column Hydraulic Press Machine Main Technical Specifications:
| Specifications | YQ32-63T |
| Nominal pressure (KN) | 630 |
| MAX.hydraulic pressure(Mpa) | 30 |
| Oil cylinder range(mm) | 400 |
| Max.opening(mm) | 600 |
| Oil cylinder Diameter(mm) | 160 |
| Piston rod diameter(mm) | 140 |
| Column dimeter(mm) | 70 |
| Table size(mm) | 550x500 |
| Machine Height | 2300 |
| Down speed (mm/s) | 130 |
| Pressing speed (mm/s) | 15-29 |
| Return speed(mm/s) | 150 |
| motor power(kw) | 5.5 |
| Machine size (mm) | Machine size: 800x720x2300mm |
| Hydraulis station: 800x1000x1600mm |
