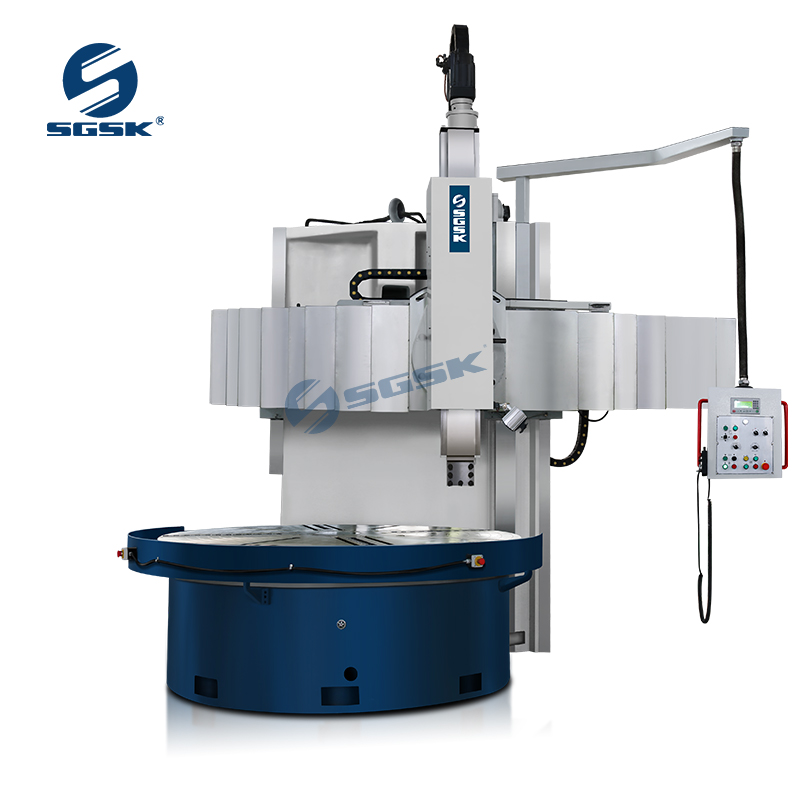

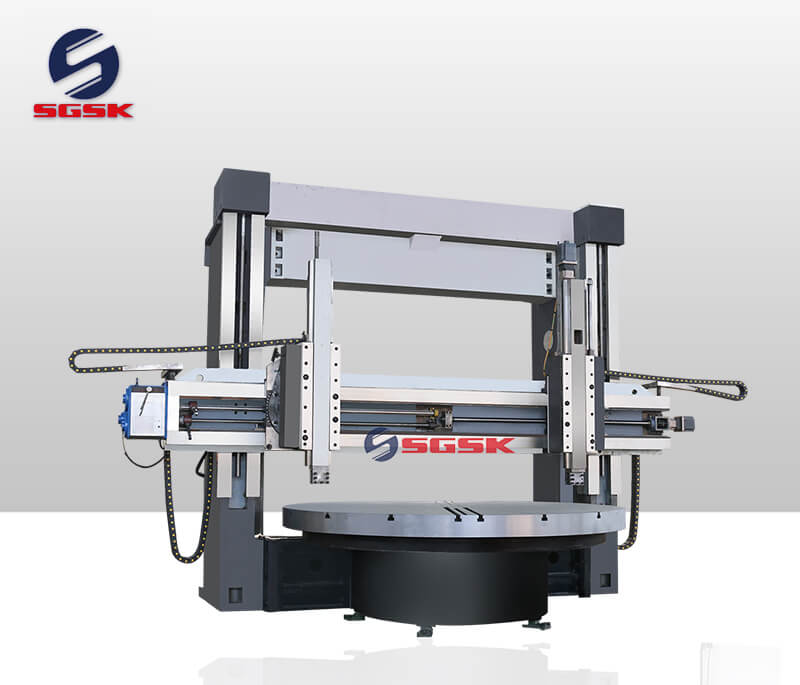

C5120D Vertical Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Vertical Lathe Machine Lathe Features:

1. This lathe is apply to machining. Rough and finish machining of inside＆outside cylindrical surface, circular conical surface end face.

2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering. Axial direction adopts CC hydrostatic guideway , worktable have the features of high running accuracy ,big bearing capacity, small thermal deformation

3. Pedestal, worktable, lathe body and crossbeam castings are use gray cast iron by tempering, relieving of internal stress and non-deformation, so they are high strength, fine wear-resisting property.

4. The vertical tool post have two form, spuare ram and manual pentagon turrets. Side tool post is equipped with square turrets, two tool posts all use hydraulic balance

5. The lathe main spindle drive is drive by AC motor, 16 steps main spindle speed change mechanism to achieve the worktable range of speed

6. According to user needs, can increase the digital display, electric grinding head and the attachment for turning taper, slide parts all auto lubrication

7. Vertical column, cross beam guideway all use high-frequency quenching, and quenching hardness is HRC48-55

Vertical Lathe Machine Technical Parameter:

Specifications	Unit	C5120D
Max. worktable diameter	mm	1800
Max. turning Diameter	mm	2000
Max. height of workpiece	mm	1250
Max. weight of workpiece	T	8
Height of tool bar section	mm	40X40
Max. cutting force of rail head	N	25000
Worktable maximum torque	N·m	32000
table speeds Step		16
Range of table speeds	r/min	3.2-100
Tool holder feed steps		12
Range of tool holder speeds	Mm/min	0.8-86
Horizontal travel of railhead	mm	1115
Ram travel of rail head	mm	800
Swivel of rail head		±30°
Side tool holder Horizontal stroke	mm	630
Side tool holder vertical stroke	mm	900
Rapid traverse of tool head	mm/min	1550
Max travel of cross rail	mm	850
Elevating speed of cross rail	mm/min	350
Main motor Power	Kw	30
Beam lifting motor power	Kw	2.2
Machine weight	T	17
