Product Main Technical Parameters

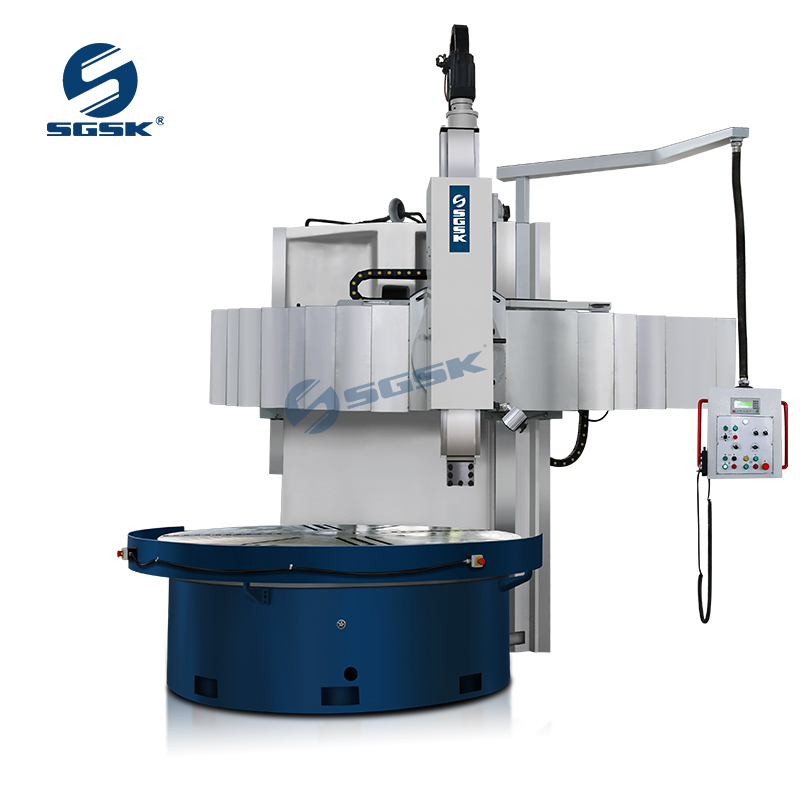

Vertical Lathe Machine Lathe Features:
1. This lathe is apply to machining. Rough and finish machining of inside&outside cylindrical surface, circular conical surface end face.
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering. Axial direction adopts CC hydrostatic guideway , worktable have the features of high running accuracy ,big bearing capacity, small thermal deformation
3. Pedestal, worktable, lathe body and crossbeam castings are use gray cast iron by tempering, relieving of internal stress and non-deformation, so they are high strength, fine wear-resisting property.
4. The vertical tool post have two form, spuare ram and manual pentagon turrets. Side tool post is equipped with square turrets, two tool posts all use hydraulic balance
5. The lathe main spindle drive is drive by AC motor, 16 steps main spindle speed change mechanism to achieve the worktable range of speed
6. According to user needs, can increase the digital display, electric grinding head and the attachment for turning taper, slide parts all auto lubrication
7. Vertical column, cross beam guideway all use high-frequency quenching, and quenching hardness is HRC48-55
Vertical Lathe Machine Technical Parameter:
Specifications | Unit | C5123D | |
1 | Max. worktable diameter | mm | 2000 |
2 | Max. turning Diameter | mm | 2300 |
3 | Max. height of workpiece | mm | 1350 |
4 | Max. weight of workpiece | T | 8 |
5 | Height of tool bar section | mm | 40x40 |
6 | Max. cutting force of rail head | N | 25000 |
7 | Worktable maximum torque | N·m | 32000 |
8 | table speeds Step | 16 | |
9 | Range of table speeds | r/min | 3.2-100 |
10 | Tool holder feed steps | 12 | |
11 | Range of tool holder speeds | Mm/min | 0.8-86 |
12 | Horizontal travel of railhead | mm | 1300 |
13 | Ram travel of rail head | mm | 800 |
14 | Swivel of rail head | ±30° | |
15 | Side tool holder Horizontal stroke | mm | 630 |
16 | Side tool holder vertical stroke | mm | 900 |
17 | Rapid traverse of tool head | mm/min | 1550 |
18 | Max travel of cross rail | mm | 820 |
19 | Elevating speed of cross rail | mm/min | 350 |
20 | Main motor Power | Kw | 30 |
21 | Beam lifting motor power | Kw | 2.2 |
22 | Machine weight | T | 18 |
23 | Overall dimensions | mm | 3900*2950*4200 |
