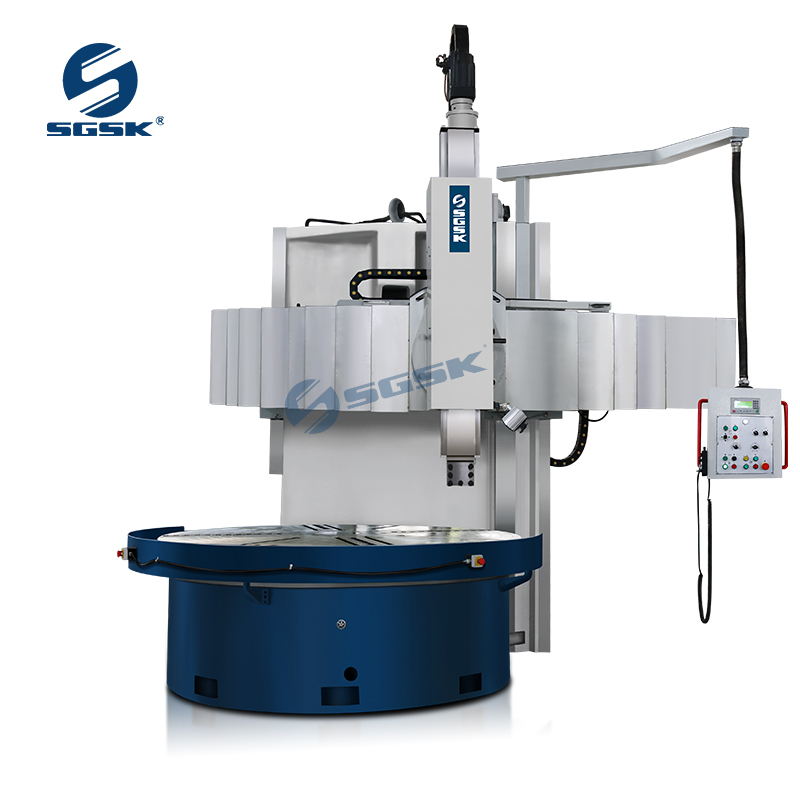

C5125D Vertical Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Vertical Lathe Machine Features:

1. This lathe is apply to machining. Rough and finish machining of inside＆outside cylindrical surface, circular conical surface end face.

2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering. Axial direction adopts CC hydrostatic guideway , worktable have the features of high running accuracy ,big bearing capacity, small thermal deformation

3. Pedestal, worktable, lathe body and crossbeam castings are use gray cast iron by tempering, relieving of internal stress and non-deformation, so they are high strength, fine wear-resisting property.

4. The vertical tool post have two form, spuare ram and manual pentagon turrets. Side tool post is equipped with square turrets, two tool posts all use hydraulic balance

5. The lathe main spindle drive is drive by AC motor, 16 steps main spindle speed change mechanism to achieve the worktable range of speed

6. According to user needs, can increase the digital display, electric grinding head and the attachment for turning taper, slide parts all auto lubrication

7. Vertical column, cross beam guideway all use high-frequency quenching, and quenching hardness is HRC48-55

Vertical Lathe Machine Technical Parameter:

	Specifications	Unit	C5125D
1	Max. worktable diameter	mm	2250
2	Max. turning Diameter	mm	2500
3	Max. height of workpiece	mm	1600
4	Max. weight of workpiece	T	8
5	Height of tool bar section	mm	40×40
6	Max. cutting force of rail head	N	25000
7	Worktable maximum torque	N·m	35000
8	table speeds Step		16
9	Range of table speeds	r/min	2-63
10	Tool holder feed steps		112
11	Range of tool holder speeds	Mm/min	0.8-86
12	Horizontal travel of railhead	mm	1400
13	Ram travel of rail head	mm	800
14	Swivel of rail head		±30°
15	Side tool holder Horizontal stroke	mm	630
16	Side tool holder vertical stroke	mm	900
17	Rapid traverse of tool head	mm/min	1550
18	Max travel of cross rail	mm	1250
19	Elevating speed of cross rail	mm/min	320
20	Main motor Power	Kw	37
21	Beam lifting motor power	Kw	2.2
22	Machine weight	T	23
23	Overall dimensions	mm	390029504200
