Product Main Technical Parameters

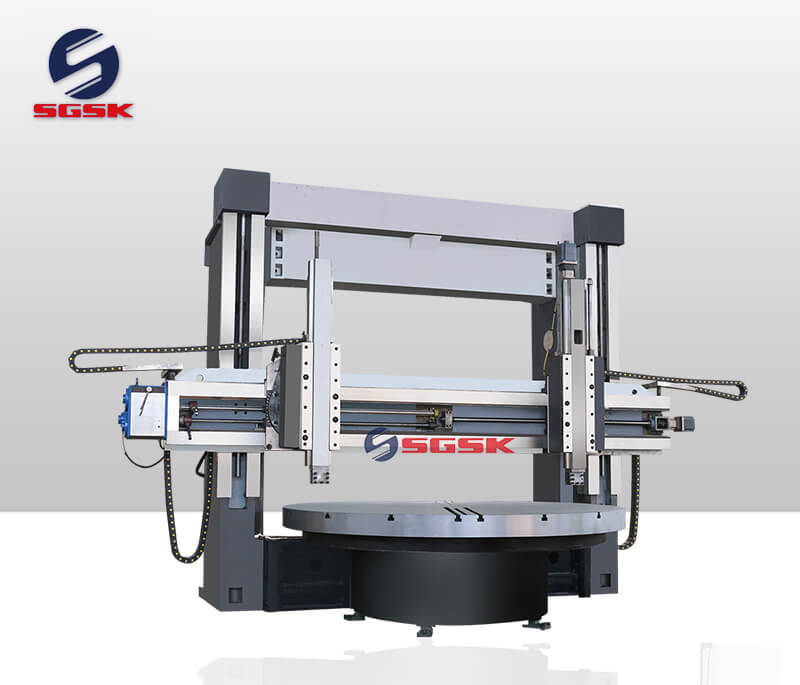

Vertical Lathe Machine Features:
1.Double column vertical lathe is mainly used for the rough and fine processing and groove cutting of inside and outside cylindrical surface and circular conical surface and plane for ferrous metals, non-ferrous metals and some non-metallic parts by high speed steel and hard alloy tools.
2.Double column vertical lathe machine left tool rest is the non-rotation tool rest, and right tool rest is the common tool rest, which could rotate. Tool rest feeding has AC asynchronous servo feeding system with PLC control, LCD displays feeding axis position and feeding speed. Manual pulse tool setting.
3.Double column vertical lathe has large worktable load-bearing, high machine accuracy, high rigidity, long service life, good antiknock characteristic, strong reliability and is suitable for strong cutting.
4.Double column vertical lathe adopts the short spindle structure, and spindle centering bearing adopts high accuracy double row roller bearing; worktable guideway adopts constant flow hydrostatic guideway, through the equivalent oil distributor to supply the pressure oil to the static pressure oil cavity. So the radial and axial directions of the worktable have higher precision and strengthened load-bearing. Main movement is driven by spindle AC servo motor with good dynamic characteristics. And the worktable has strong instantaneous overload capacity. Feeding axis movement is that the servo motor driving the ball screw structure by the reduction box with high accuracy and accurate position.
Vertical Lathe Machine Technical Parameter:
Specification | Unit | C5225D | C5240D | C5250D | C5263D |
Table diameter | mm | 2250 | 3200 | 4500 | 5700 |
Max. turning diameter | mm | 2500 | 4000 | 5000 | 6300 |
Max. height of workpiece | t | 1600 | 1600 | 2000 | 3150 |
Max. weight of workpiece | mm | 10 | 16 | 32 | 50 |
Table speed steps | 16 | 16 | 16 | 16 | |
Table speed range | r/min | 2~63 | 2~63 | 0.5~40 | 0.5~40 |
Max.torque of table | kN·m | 63 | 63 | 70 | 100 |
Max.cutting force of right vertical tool post | kN | 35 | 35 | 35 | 40 |
Horizontal travel of right vertical tool post | mm | -50~1400 | -50~2150 | -50~2770 | 3450 |
Vertical travel of right ram | mm | 1000 | 1000 | 1250 | 1600 |
Right vertical tool post feed range | mm/ min | 0.24--145 | 0.24--145 | 0.2--145 | 0.2--145 |
Max.cutting force of left vertical tool post | kN | 30 | 28 | 30 | 50 |
Horizontal travel of left vertical tool post | mm | -50~1400 | -50~2150 | -50~2770 | 3450 |
Vertical travel of left ram | mm | 1000 | 1000 | 1250 | 1600 |
Left vertical tool post feed range | mm/ min | 0.24--145 | 0.24—145 | 0.2--145 | 0.2--145 |
Swivel angle of vertical tool post | ° | -30~+30 | -30~+30 | -15~+30 | -15~+30 |
Ram section size | mm | 255×200 | 255×200 | 240×240 | 240×240 |
Tool section size | mm | 40×50 | 40×50 | 50×50 | 50×50 |
Vertical tool post rapid traverse | mm/ min | 1550 | 1550 | 1550 | 2000 |
Max.travel of cross beam | mm | 1250 | 1250 | 1650 | 2650 |
Cross beam lifting speed | mm/ min | 350 | 350 | 310 | 350 |
Cross beam lifting motor power | kw | 11 | 11 | 15 | 15 |
Main motor power | kw | AC55 | AC55 | AC70 | AC90 |
