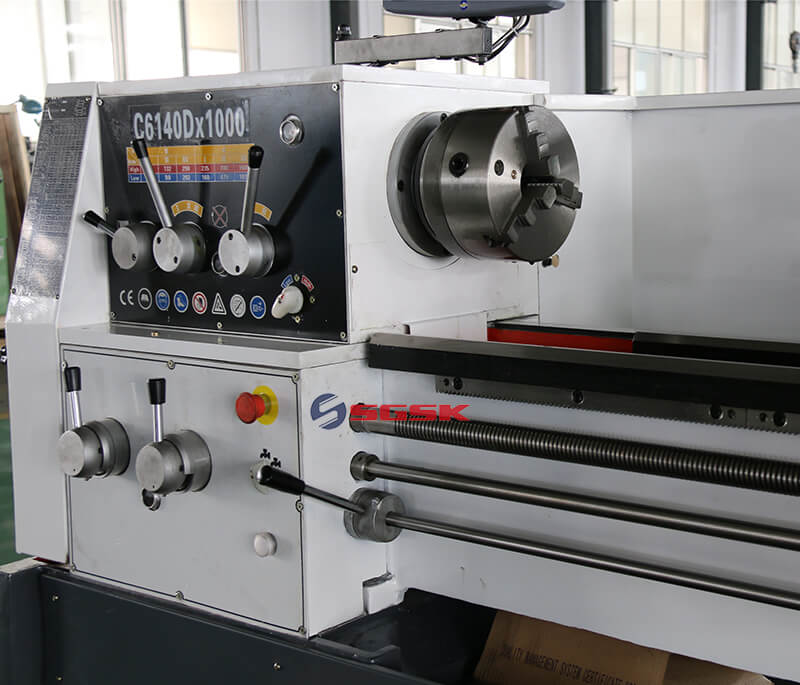

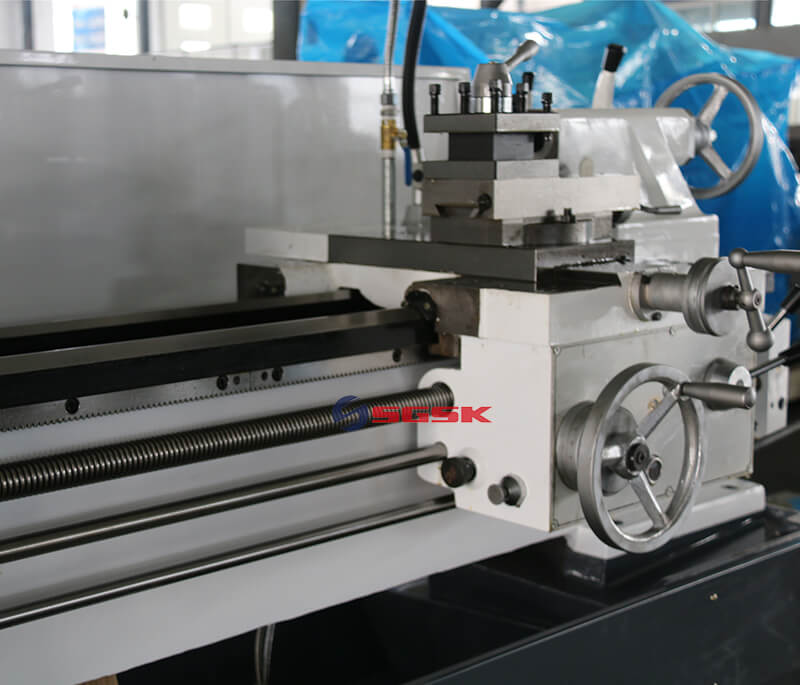

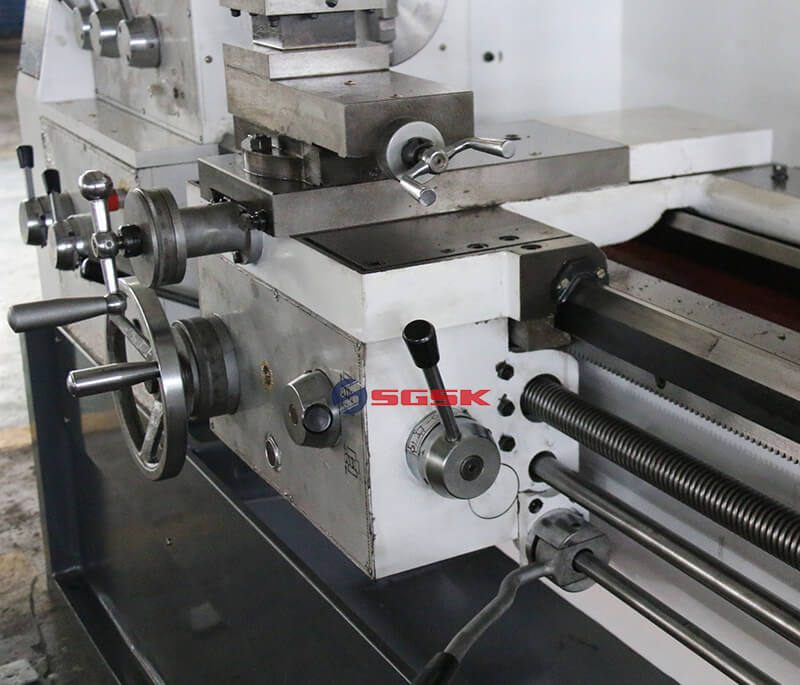

C6132D C6136D Horizontal Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Horizontal Lathe Machine description:

C series universal lathe is suitable for internal and external turning ,tapering ,and other rotating faces ,metric ,module and inch threads ,as well as drilling and pull oil slot ,widely used in axisal and plates processing .

The lathe bed is wider than normal machine ,owns high rigidity ,guideway after high frequency quenching ,with high durability.

Easy operated ,one handle to operate quite convenient .

Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .Lots of optional accessories for you to choose .

Whole side test before leave the factory ,make sure the machine owns high stability and more reliable .

Horizontal Lathe Machine main technical Specifications:

Specifications		C6132D	C6136D	C6140D
capacity	Max.Swing over bed	320mm	360mm	400mm
	Max.swing over carriage	180mm	200mm	240mm
	Max.length of workpiece	750/1000mm
	Width of bed	312mm
	Section of turning tool	20x20mm
Spindle	Spindle speeds	30-1600r/min(12 steps)
	Spindle hole	Ø52mm
	Spindle nose	C6
	Spindle taper	MT6
Feed	NO. Of feed	Longitudinal(0.039-1.05mm),cross(0.019-0.52mm)
	Range of metric threads	0.5-20mm(25 kinds)
	Range of inch threads	80-1.75TPI(35 kinds)
	Range of module threads	0.25-10mm
	Range of diametral threads	160-3.5DP(30 kinds)
Tailstock	Max.tailstock spindle travel	100mm
	Tailstock spindle diameter	Ø60mm
	Taper of tailstock	MT4
Main motor		3/4kw
Packing dimensions	Overall dimension for 750mm	2000x1130x1540
	Overall dimension for 1000mm	2250x1130x1540
Weight	Overall dimension for 750mm	1400kg	1500kg	1700kg
	Overall dimension for 1000mm	1500kg	1600kg	1800kg
