Product Main Technical Parameters

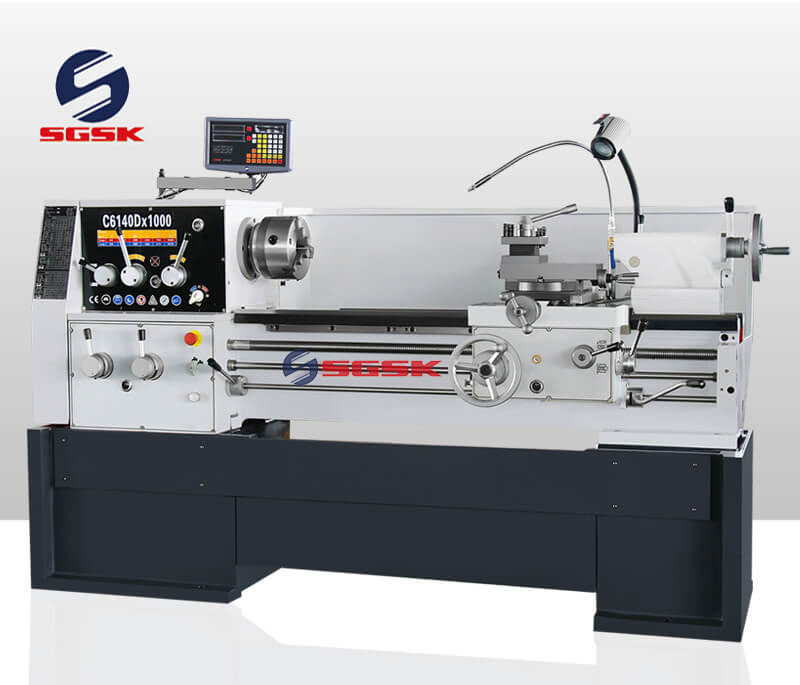

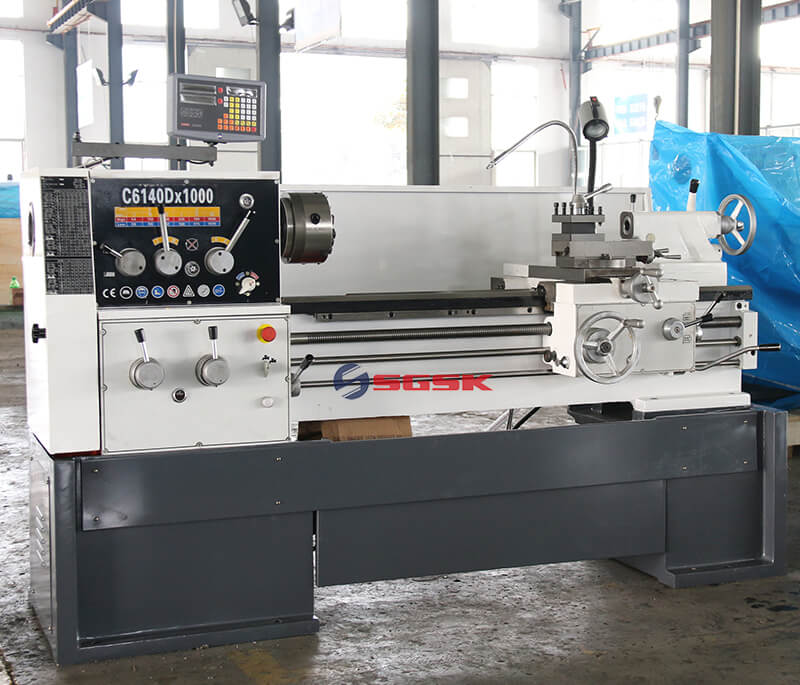

Horizontal Lathe Machine Description:
C series universal lathe is suitable for internal and external turning ,tapering ,and other rotating faces ,metric ,module and inch threads ,as well as drilling and pull oil slot ,widely used in axisal and plates processing .
The lathe bed is wider than normal machine ,owns high rigidity ,guideway after high frequency quenching ,with high durability.
Easy operated ,one handle to operate quite convenient .
Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .Lots of optional accessories for you to choose .
Whole side test before leave the factory ,make sure the machine owns high stability and more reliable .
Horizontal Lathe Machine Main Technical Specifications:
Specifications | C6132D | C6136D | C6140D | |
Capacity | Max.Swing over bed | 320mm | 360mm | 400mm |
Max.swing over carriage | 180mm | 200mm | 240mm | |
Max.length of workpiece | 750/1000mm | |||
Width of bed | 312mm | |||
Section of turning tool | 20x20mm | |||
Spindle | Spindle speeds | 30-1600r/min(12 steps) | ||
Spindle hole | Ø52mm | |||
Spindle nose | C6 | |||
Spindle taper | MT6 | |||
Feed | NO. Of feed | Longitudinal(0.039-1.05mm),cross(0.019-0.52mm) | ||
Range of metric threads | 0.5-20mm(25 kinds) | |||
Range of inch threads | 80-1.75TPI(35 kinds) | |||
Range of module threads | 0.25-10mm | |||
Range of diametral threads | 160-3.5DP(30 kinds) | |||
Tailstock | Max.tailstock spindle travel | 100mm | ||
Tailstock spindle diameter | Ø60mm | |||
Taper of tailstock | MT4 | |||
Main motor | 3/4kw | |||
Packing dimensions | Overall dimension for 750mm | 2000x1130x1540 | ||
Overall dimension for 1000mm | 2250x1130x1540 | |||
Weight | Overall dimension for 750mm | 1400kg | 1500kg | 1700kg |
Overall dimension for 1000mm | 1500kg | 1600kg | 1800kg |
