Product Main Technical Parameters

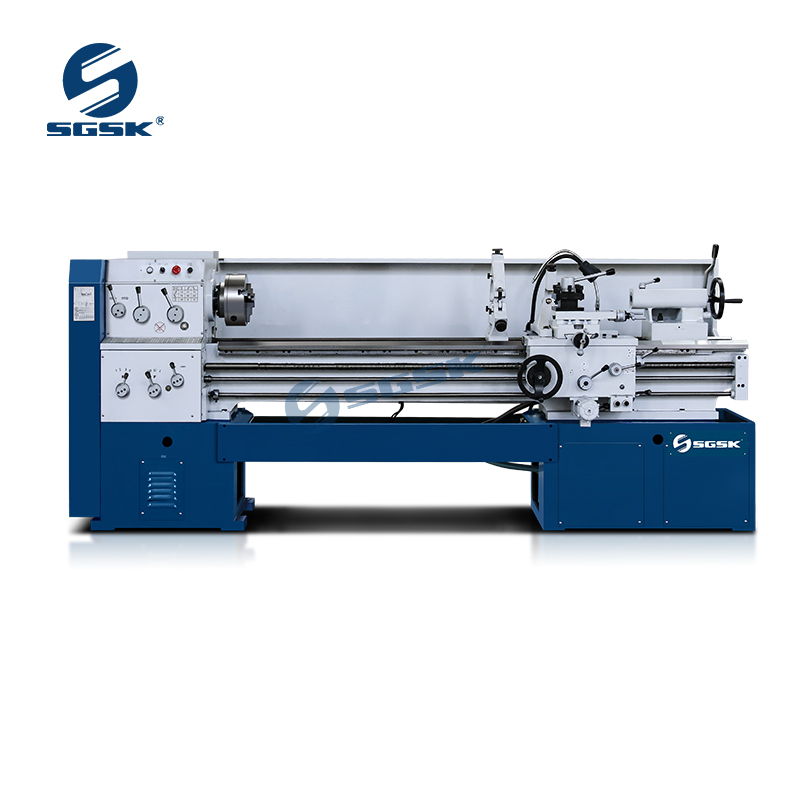

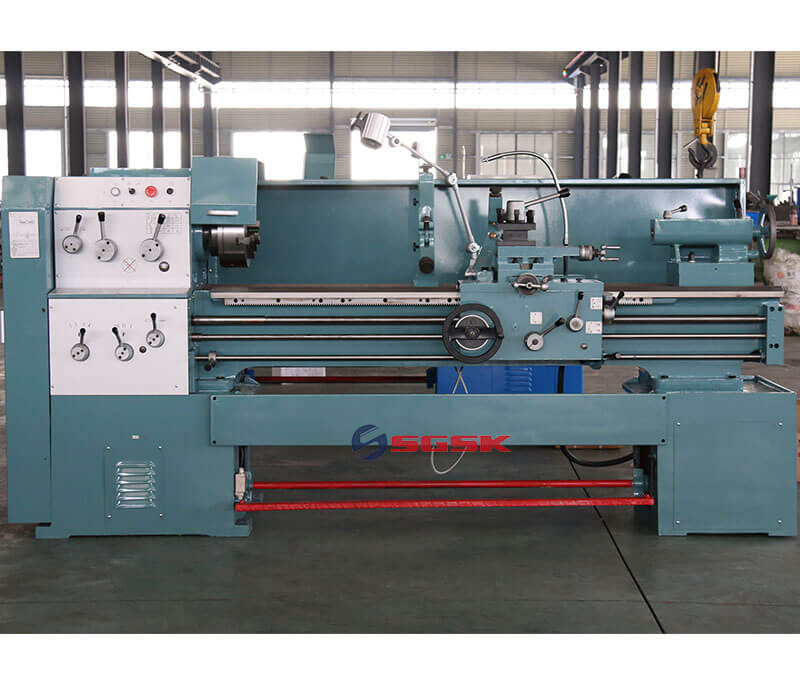

Horizontal Lathe Machine Description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Horizontal Lathe Machine Main Technical Specifications:
| Specifications | C6170 | |
| Capacity | Max.Swing over bed | 700mm |
| Max. rotating diameter | 500mm | |
| Center distance | 750、1000、1500、2000mm | |
| Spindle hole | 52mm(82mm) | |
| Spindle | Spindle nose | ISO-C6（C8） |
| Spindle tap | MT6 | |
| Spindle speeds(Number) | 36-1600rpm (12 Steps) | |
| Feed | Metric threads range（Kinds） | 0.5-14mm (18 Kinds) |
| Inch threads range(Kinds) | 2-40/inch (28 Kinds) | |
| Moudle threads range(Kinds) | 0.25-3.5MP (17 Kinds) | |
| Compound rest travel | 150mm | |
| Cross slide travel | 180mm | |
| Cross-section size of toolshank | 22×22mm | |
| Tailstock | Dia.of tailstock sleeve | 75mm |
| Taper of tailstock sleeve | MT5 | |
| Travel of tailstock sleeve | 160mm | |
| Main motor power | 7.5KW | |
| Machine size(L*W*H mm) | Overall dimensions for750mm | 2100×1150×1550mm |
| Overall dimensions for1000mm | 2350×1150×1550mm | |
| Overall dimensions for1500mm | 2850×1150×1550mm | |
| Overall dimensions for2000mm | 3350×1150×1550mm | |
| Weight(kg) | Weight for 750mm | 1900kg |
| Weight for 1000mm | 2000kg | |
| Weight for 1500mm | 2200kg | |
| Weight for 2000mm | 2400kg | |
