Product Main Technical Parameters

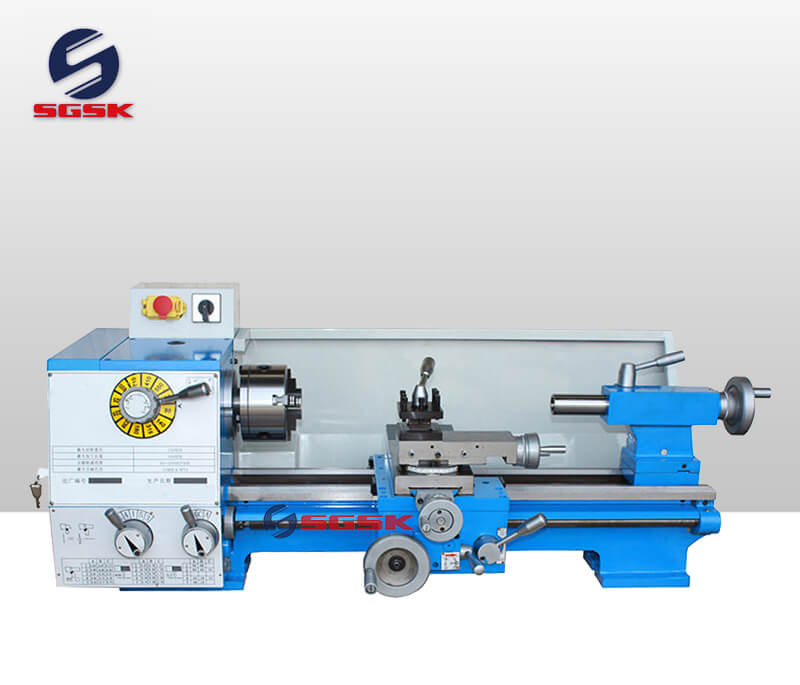

Small Lathe Machine Description:
1.Most economical,widely useful hobby lathe.
2.Power longitudinal feed allows threading.
3.V-way a depot double triangle and rectangle side way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.

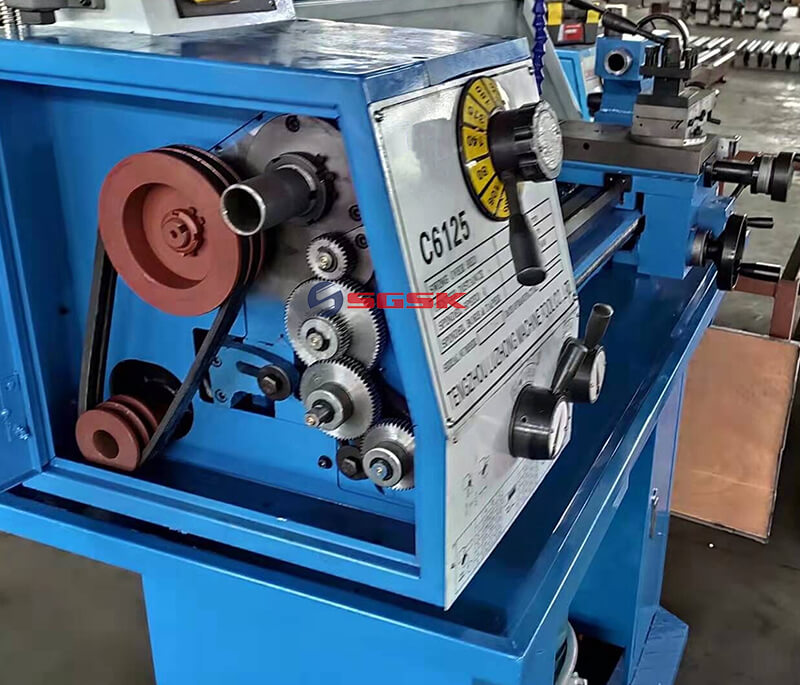

6.Head stock be gear drive power.
7.Large MT4 spindle bore.

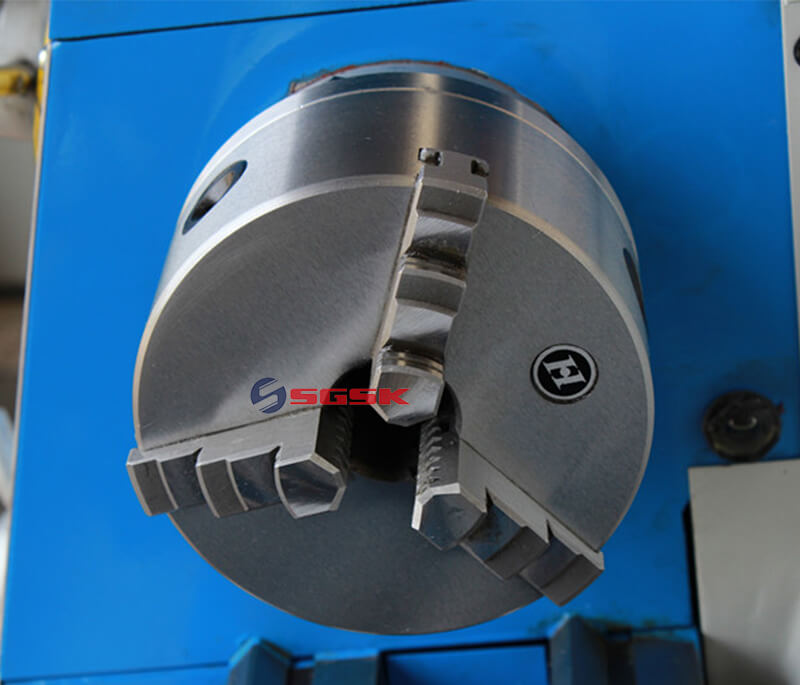

8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed
Small Lathe Machine Main Technical Specifications:
Specifications | Units | CJM250 |
Max.swing over bed | mm | 250 |
Max.processing length | mm | 500 |
Max.swing over cross slide | mm | 150 |
Spindle hole diameter | mm | 26 |
Taper of spindle | mm | No.4 |
Spindle | mm | 80—1600r.p.m 12 |
The maximum horizontal stroke of cutter | mm | 130 |
The knife frame maximum longitudinal travel | mm | 75 |
Processing metric thread number | 15 | |
Processing range of metric threads | mm | 0.25-2.5 |
Processing inch thread number | 9 | |
Processing range of inch threads | TPI | 12-96 |
Longitudinal feed spindle turret at every turn | mm | 0.03-0.275 |
The transverse feed amount per turn spindle turret | mm | 0.015-0.137 |
Tailstock sleeve travel | mm | 60 |
Taper of tailstock sleeve | mm | No.3 |
Electric machinery | w | 750W/380V/50HZ |
Gross / net weight | kg | 180/163 |
Dimensions (length * width * height) | mm | 1130×550×405 |
Packing size (length * width * height) | mm | 1200×620×600 |
