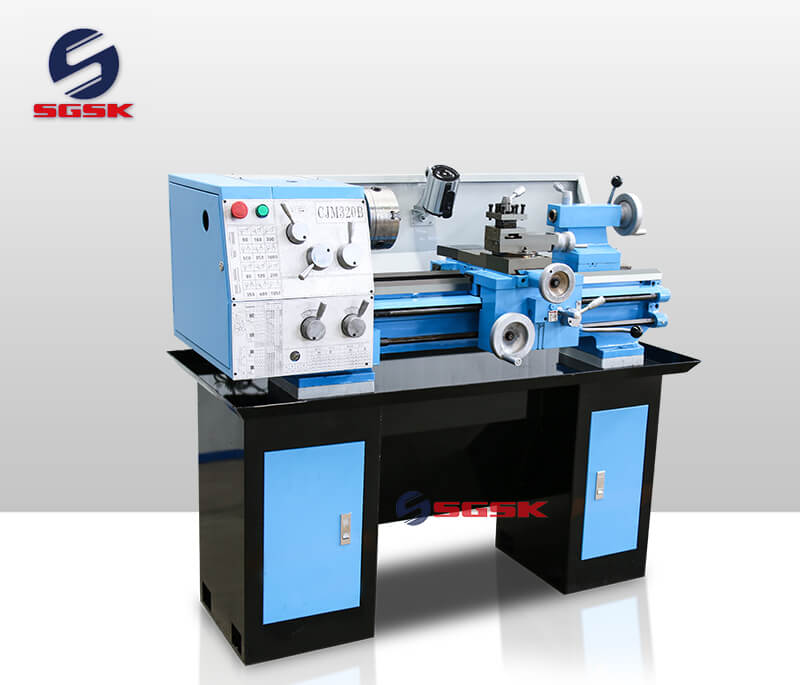

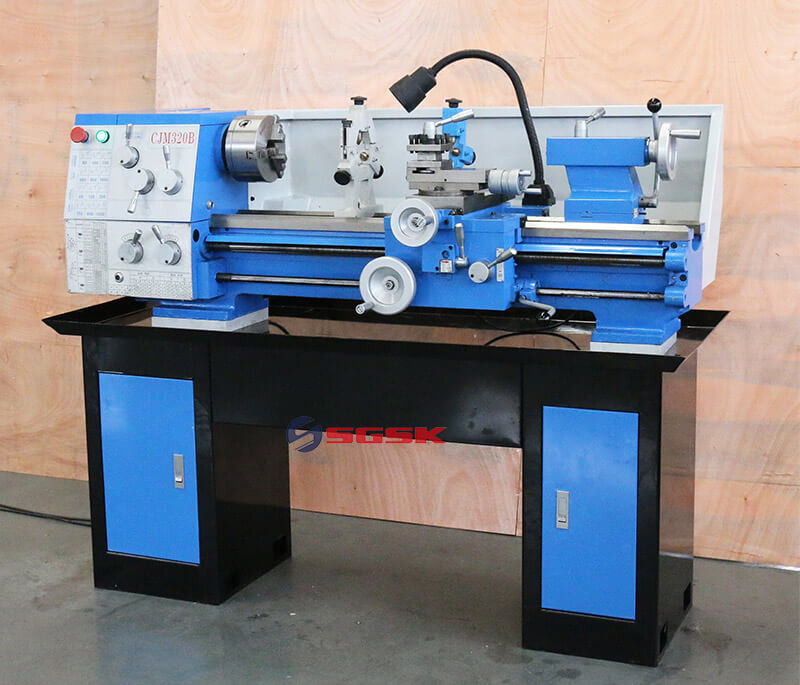

CJM320B Small Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Small Lathe Machine Description:

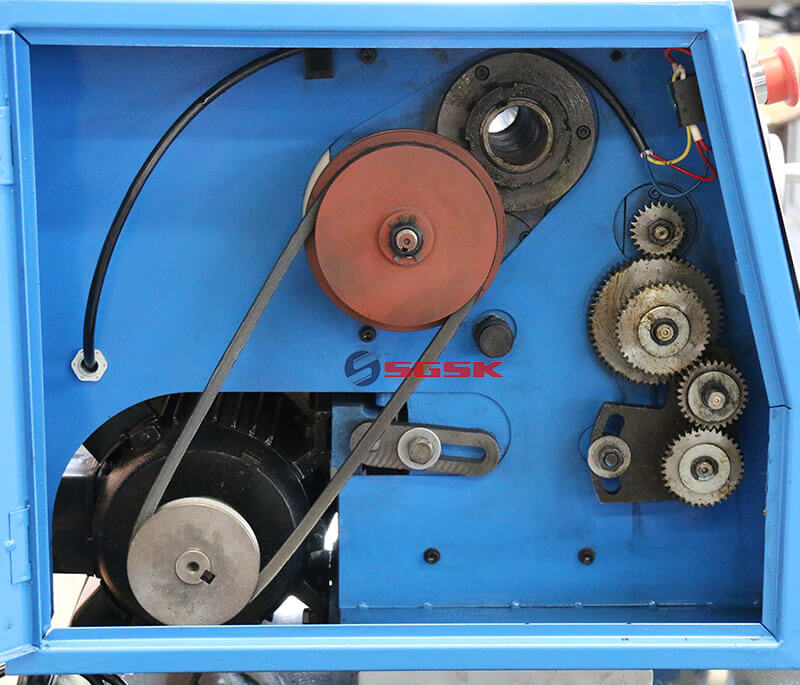

1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.

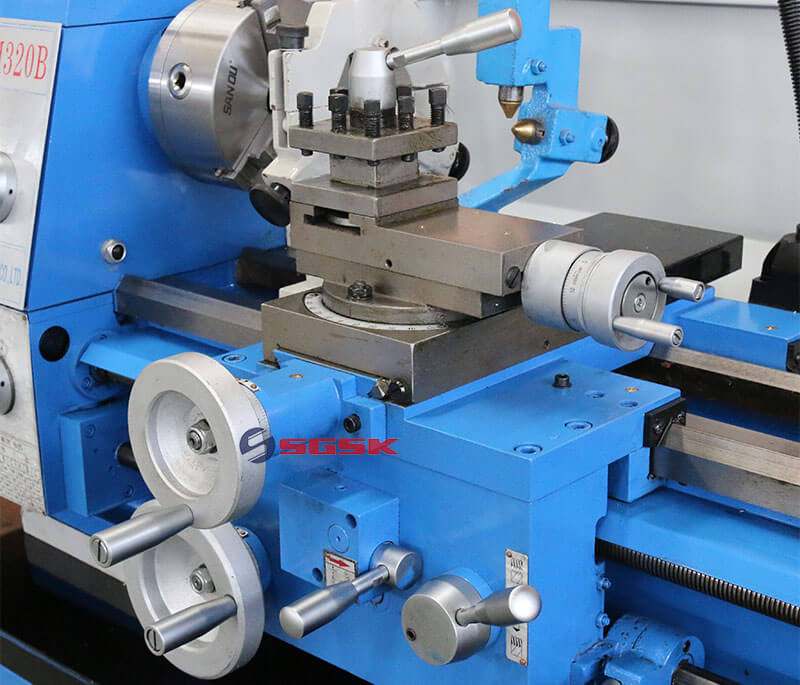

2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.

Small Lathe Machine Main Technical Specifications:

Specifications	Units	CJM320B
Max.swing over bed	mm	320
Distance between centers	mm	600
Max.swing over cross slide	mm	200
Spindle hole diameter	mm	38
Taper of spindle	mm	No.5
Spindle speed	mm	80—1600r.p.m 12
The maximum horizontal stroke of cutter	mm	160
The knife frame maximum longitudinal travel	mm	100
Processing metric thread number		22
Processing range of metric threads	mm	0.2－7
The processing module thread number		21
The processing module thread range	mm	0.2－3.5
Processing diameter pitch threads number		31
Processing pitch thread range	mm	8－120 1/n″
Longitudinal feed spindle turret at every turn	Mm/r	0.1－1.4
The transverse feed amount per turn spindle turret	Mm/r	0.045－0.6
Tailstock sleeve travel	mm	80
Taper of tailstock sleeve		No.3
Electric machinery	w	750W/380V/50HZ
Gross / net weight	kg	450/390
Dimensions (length * width * height)	mm	1370×685×1360
Packing size (length * width * height)	mm	1470×770×1470
